NSN 5360-00-600-4199 7273381, 727338-1, 00-600-4199
Product Details | TORSION HELICAL SPRING
5360-00-600-4199 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 7273381, 727338-1, 5360-00-600-4199, 00-600-4199, 5360006004199, 006004199
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-600-4199 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-600-4199
Cross Reference | NSN 5360-00-600-4199
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 727338-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-600-4199
Technical Data | NSN 5360-00-600-4199
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| INSIDE DIAMETER | 0.190 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.560 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.272 INCHES NOMINAL |
| END LENGTH | 1.440 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM COIL AXIS TO FIRST BEND | 1.060 INCHES NOMINAL OVERALL |
| COIL AXIS TO CENTER SECTION DISTANCE | 0.659 INCHES NOMINAL |
| CENTER LOOP RADIUS | 0.120 INCHES NOMINAL |

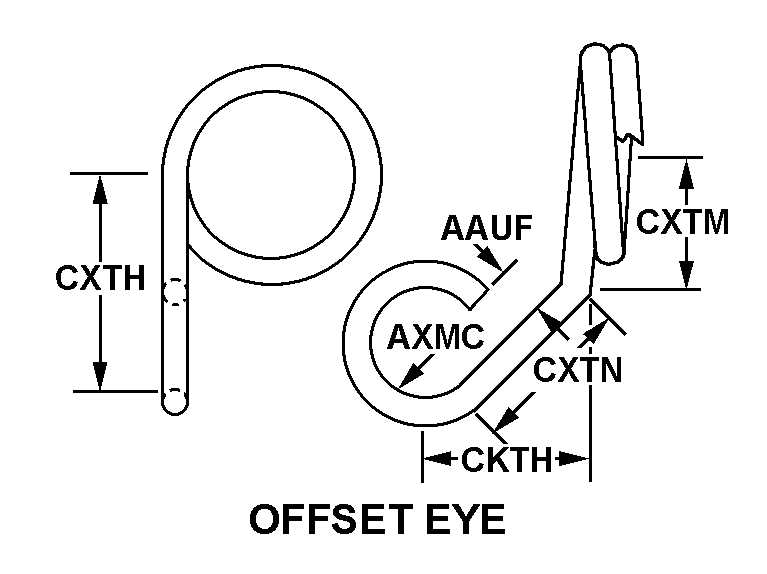

| END STYLE | G36 OFFSET EYE OVERALL |
| COIL HELIX DIRECTION | LEFT-HAND |
| COIL QUANTITY | 4-51/64 |
| SPECIAL FEATURES | COIL HELIX OTHER DIRECTION RH |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 727338-1 |
Restrictions/Controls & Freight Information | NSN 5360-00-600-4199
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177970 | SPRINGS NOI STL O/T WIRE |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
