NSN 5360-00-600-0933 S735221, S73522-1, 735221
Product Details | TORSION HELICAL SPRING
5360-00-600-0933 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: S735221, S73522-1, 735221, 73522-1, 8005631, 800563-1 , 5360-00-600-0933, 00-600-0933, 5360006000933, 006000933
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-600-0933 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-600-0933
Cross Reference | NSN 5360-00-600-0933
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73522-1 | 29780 | MAG AEROSPACE INDUSTRIES, INC. |
| 73522-1 | 92824 | MAG AEROSPACE INDUSTRIES INC. DBA MONOGRAMSYSTEMS |
| 800563-1 | 29780 | MAG AEROSPACE INDUSTRIES, INC. |
| 800563-1 | 92824 | MAG AEROSPACE INDUSTRIES INC. DBA MONOGRAMSYSTEMS |
| S73522-1 | 92824 | MAG AEROSPACE INDUSTRIES INC. DBA MONOGRAMSYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-600-0933
Technical Data | NSN 5360-00-600-0933
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-6101 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 0.620 INCHES NOMINAL |
| SPRING FREE LENGTH | 2.060 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.844 INCHES NOMINAL |
| HOOK OPENING WIDTH | 0.120 INCHES NOMINAL BOTH ENDS |
| END LENGTH | 1.000 INCHES NOMINAL BOTH ENDS |

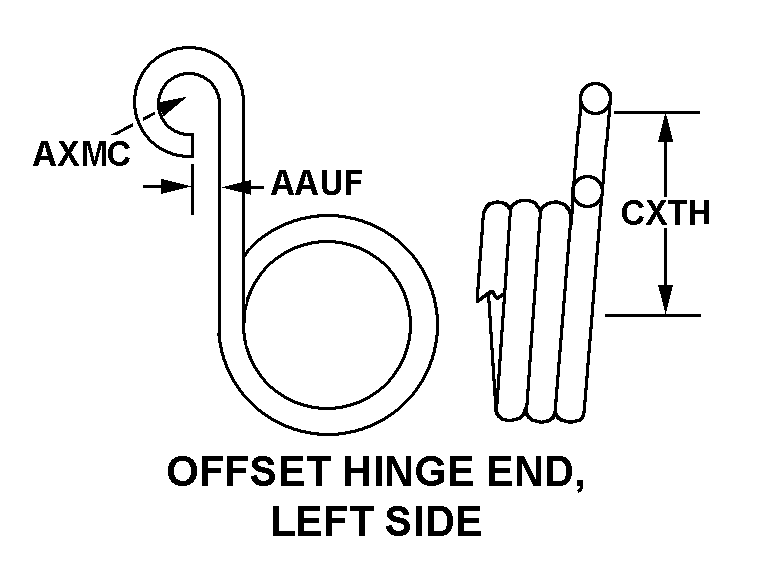

| END STYLE | G9 OFFSET HINGE END, LEFT SIDE FIRST END G51 CURVED END SECOND END |
| COIL QUANTITY | 5-1/4 |
| END ANGULAR RELATIONSHIP | ENDS PARALLEL ONE TO OTHER |
| MANUFACTURERS CODE | 92824 |
| DESIGN CONTROL REFERENCE | S73522-1 |
Restrictions/Controls & Freight Information | NSN 5360-00-600-0933
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-600-0933
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | JY | SX:MISCELLANEOUS AIRCRAFT ACCESSORIES AND SYSTEMS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
