NSN 5360-00-535-7433 17577A, 24213, 24-213
Product Details | TORSION HELICAL SPRING
5360-00-535-7433 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 17577A, 24213, 24-213, 5360-00-535-7433, 00-535-7433, 5360005357433, 005357433
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-535-7433 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-535-7433
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-535-7433
Related Products | NSN 5360-00-535-7433
Technical Data | NSN 5360-00-535-7433
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 0.34375 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.1962 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.40715 INCHES NOMINAL |
| HOOK OPENING WIDTH | 0.062 INCHES NOMINAL OVERALL |
| HOOK RADIUS | 0.250 INCHES NOMINAL OVERALL |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.1875 INCHES NOMINAL OVERALL |
| END LENGTH FROM SECOND BEND TO THIRD BEND OR END | 0.1727 INCHES NOMINAL OVERALL |
| END LENGTH FROM THIRD BEND OR END | 0.1875 INCHES NOMINAL OVERALL |

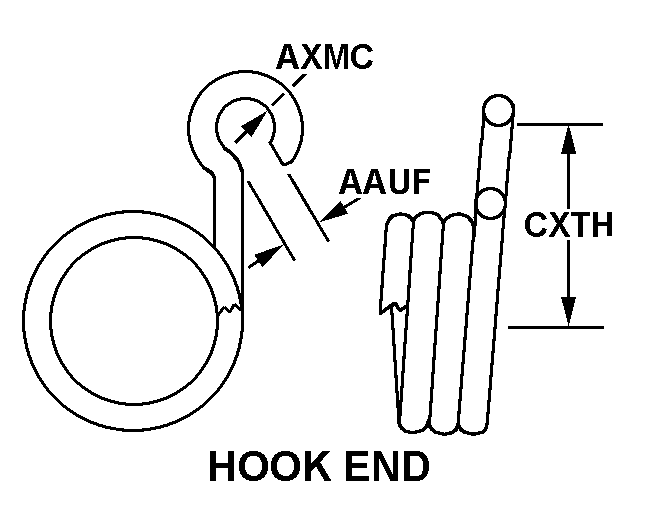

| END STYLE | G5 HOOK END FIRST END G6 RIGHT HAND HELIX SECOND END |
| COIL HELIX DIRECTION | RIGHT-HAND |
| COIL QUANTITY | 5 |
| MANUFACTURERS CODE | 96152 |
| DESIGN CONTROL REFERENCE | 24-213 |
