NSN 5360-00-467-0484 A991078, A991-078, W000991078000
Product Details | EXTENSION GARTER SPRING
5360-00-467-0484 A close-coiled helical extension spring, with ends fastened together to form a circle, designed to impose compression stresses toward the center of the circle thus formed when uniformly expanded.
Part Alternates: A991078, A991-078, W000991078000, 5360-00-467-0484, 00-467-0484, 5360004670484, 004670484
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAY 1974 | 00-467-0484 | 04225 ( SPRING, GARTER, EXTENSION ) |

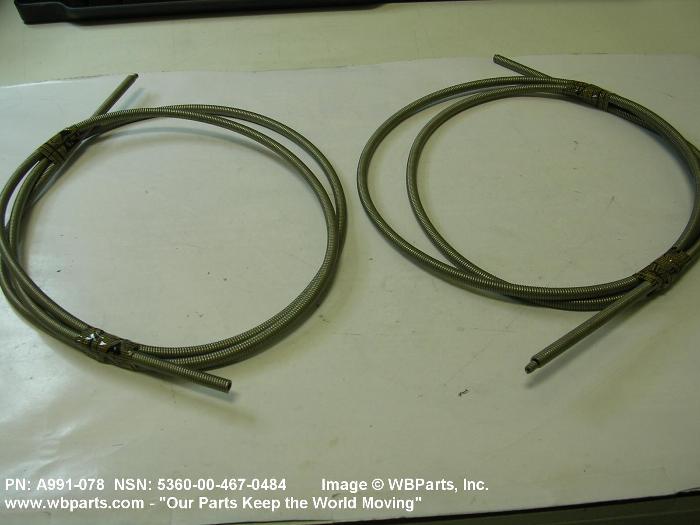

Drawings & Photos | NSN 5360-00-467-0484
Demand History | NSN 5360-00-467-0484
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| W000991078000 | 2020-09-246 | 14 | DIBBS |
| W000991078000 | 2020-03-64 | 14 | DIBBS |
| 5360-00-467-0484 | 2012-03-80 | 50 | DIBBS |
| 5360-00-467-0484 | 2011-12-353 | 46 | DIBBS |
| 5360-00-467-0484 | 2011-09-273 | 30 | DIBBS |
| 5360-00-467-0484 | 2008-02-37 | 5 | United States |
| 5360-00-467-0484 | 2007-12-351 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-467-0484
Technical Data | NSN 5360-00-467-0484
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| INSIDE DIAMETER | 16.152 INCHES NOMINAL |
| SPRING DEFLECTION RATE | 0.540 POUNDS PER INCH NOMINAL |
| MANUFACTURERS CODE | 07332 |
| DESIGN CONTROL REFERENCE | W000991078000 |
Restrictions/Controls & Freight Information | NSN 5360-00-467-0484
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177970 | SPRINGS NOI STL O/T WIRE |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-467-0484
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
