NSN 5360-00-467-0866 3512491, 3-51249-1, 00-467-0866
Product Details | COMPRESSION HELICAL SPRING
5360-00-467-0866 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 3512491, 3-51249-1, 5360-00-467-0866, 00-467-0866, 5360004670866, 004670866
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUN 1974 | 00-467-0866 | 04226 ( SPRING, HELICAL, COMPRESSION ) |
Drawings & Photos | NSN 5360-00-467-0866
Demand History | NSN 5360-00-467-0866
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-467-0866 | 2020-04-08 | 93 | DIBBS |
| 5360-00-467-0866 | 2018-05-30 | 848 | DIBBS |
| 5360-00-467-0866 | 2018-04-19 | 320 | DIBBS |
| 5360-00-467-0866 | 2018-04-17 | 320 | DIBBS |
| 5360-00-467-0866 | 2018-04-12 | 160 | DIBBS |
| 5360-00-467-0866 | 2018-04-10 | 160 | DIBBS |
| 5360-00-467-0866 | 2018-04-02 | 718 | DIBBS |
| 5360-00-467-0866 | 2017-02-06 | 146 | DIBBS |
| 5360-00-467-0866 | 2015-10-22 | 1 | DIBBS-RFPs |
| 5360-00-467-0866 | 2015-02-11 | 142 | DIBBS |
| 5360-00-467-0866 | 2013-06-06 | 146 | DIBBS |
| 3-51249-1 | 2013-02-01 | 10 | |
| 5360-00-467-0866 | 2010-01-07 | 492 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-467-0866
Related Products | NSN 5360-00-467-0866
Technical Data | NSN 5360-00-467-0866
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-412,COMP 1,TYPE 1 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

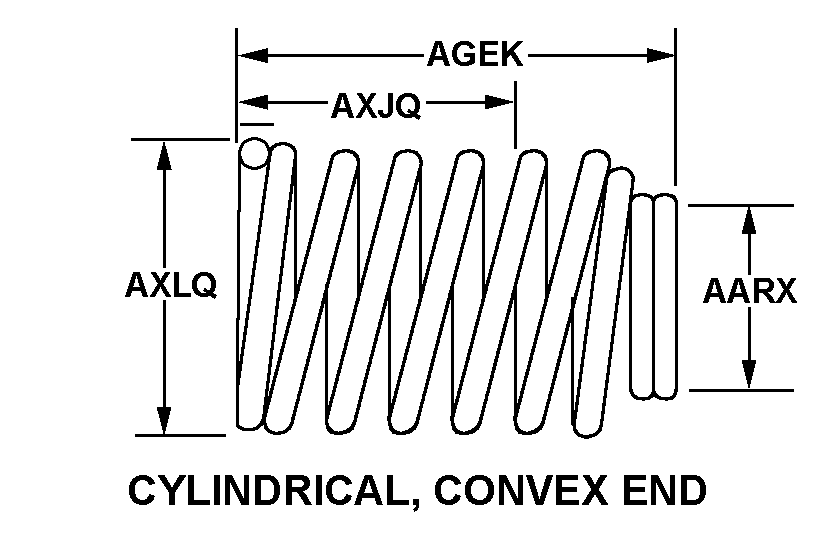

| STYLE DESIGNATOR | A5 CYLINDRICAL CONVEX END |
| INSIDE DIAMETER | 1.010 INCHES MINIMUM AND 1.050 INCHES MAXIMUM |
| SPRING FREE LENGTH | 2.850 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 1.675 INCHES NOMINAL |
| END STYLE | E4 SQUARED AND GROUND BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 180.500 POUNDS MINIMUM AND 203.500 POUNDS MAXIMUM |
| COIL QUANTITY | 8 |
| SPRING DEFLECTION RATE | 188.000 POUNDS PER INCH MINIMUM AND 212.000 POUNDS PER INCH MAXIMUM |
| SPRING LENGTH UNDER LOAD | 1.890 INCHES NOMINAL |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 3-51249-1 |
Restrictions/Controls & Freight Information | NSN 5360-00-467-0866
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-467-0866
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | XE | SU:T-38 TALON |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
