Product Details | EXTENSION HELICAL SPRING
5360-00-427-2195 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: T2258P354, 11662296-1, 16T1042, 219310, 2258P34, 2258P354, 3020TA46, 314M1, 35UB1021, 5231472, 5231-47-2, 5232272, 5232-27-2, 10C0001691, 10C000169-1, 6192201, 62322R1, 73164, 752390, 99A0134, 5360-00-427-2195, 00-427-2195, 5360004272195, 004272195, 116622961
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-427-2195 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-427-2195
Cross Reference | NSN 5360-00-427-2195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10C000169-1 | 33469 | AVIONICS COMMUNICATIONS SYSTEMS INC |
| 11662296-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 16T1042 | 14234 | GREAT DANE TRAILERS INC |
| 16T1042 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| 219310 | 23705 | FRUEHAUF CORP |
| 2258P34 | 60528 | TRAILMOBILE INC SUB OF THE PULLMAN CO |
| 2258P354 | 02397 | ROCKWELL INTL CORP HIGHWAY BRAKE AND TRAILER AXLE DIV |
| 2258P354 | 05676 | C AND C TRAILER AND BODY CO |
| 2258P354 | 33323 | KENWORTH TRUCK CO A DIV OF PACCAR INC |
| 2258P354 | 63734 | KAITLIN CORP |
| 2258P354 | 65282 | WHITE MOTOR CORP |
| 2258P354 | 72260 | CORBITT CO INC |
| 2258P354 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| 3020TA46 | 45152 | OSHKOSH CORPORATION |
| 3020TA46 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 314M1 | 56442 | DIAMOND REO TRUCK CO |
| 35UB1021 | 51665 | RIVINIUS INC LITTLEFORD MACHINERY DIV |
| 5231-47-2 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| 5232-27-2 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| 6192201 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 62322R1 | 31007 | NAVISTAR INTL CORP |
| 62322R1 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 73164 | 95097 | LITTLE GIANT CRANE AND SHOVEL INC |
| 752390 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 99A0134 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| T2258P354 | 05643 | BARBER-GREENE CO |
| T2258P354 | 0MKW7 | MINNPAR, LLC DBA MINNPAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-427-2195
Related Products | NSN 5360-00-427-2195
Technical Data | NSN 5360-00-427-2195
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1065 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66,AISI/SAE FED STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B4 DOUBLE CYLINDRICAL |
| DISTANCE BETWEEN ENDS | 1.438 INCHES NOMINAL |
| SPRING FREE LENGTH | 7.949 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
| OPENING WIDTH | 0.538 INCHES NOMINAL BOTH ENDS |
| COIL TO HOOK INSIDE LENGTH | 1.000 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.400 INCHES NOMINAL BOTH ENDS |

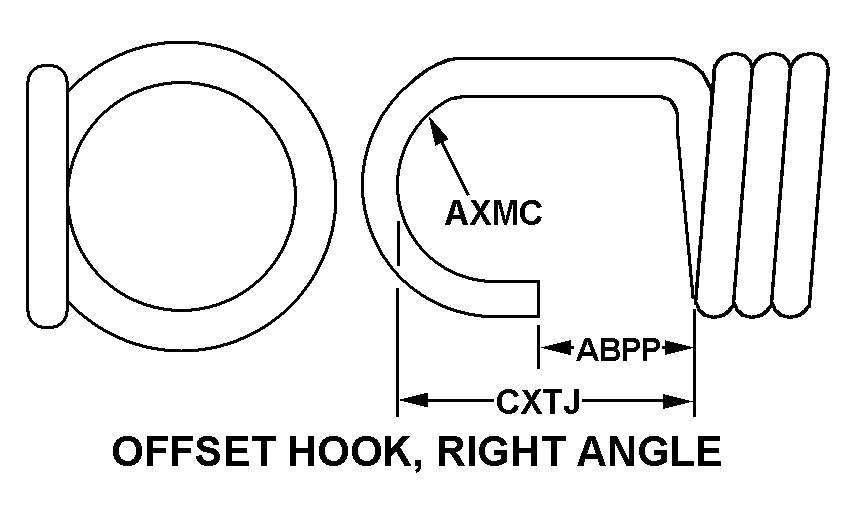

| END STYLE | F43 OFFSET HOOK, RIGHT ANGLE BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 67.00 POUNDS MINIMUM AND 83.00 POUNDS MAXIMUM |
| COIL QUANTITY | 11 |
| DESIGN TYPE | CLOSED |
| SPRING LENGTH UNDER LOAD | 8.875 INCHES NOMINAL |
