Product Details | EXTENSION HELICAL SPRING
5360-00-427-2208 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: TP148, UB2205, 8687048, 11105, 22412, 5360-00-427-2208, 00-427-2208, 5360004272208 , 004272208
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-427-2208 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-427-2208
Demand History | NSN 5360-00-427-2208
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-427-2208 | 2019-07-204 | 1 | DIBBS-RFPs |
| 5360-00-427-2208 | 2018-03-87 | 761 | DIBBS |
| 5360-00-427-2208 | 2017-08-215 | 407 | DIBBS |
| 11105 | 2015-05-138 | 1 | United States |
| 5360-00-427-2208 | 2009-12-342 | 415 | DIBBS |
| 5360-00-427-2208 | 2009-11-313 | 28 | DIBBS |
| 5360-00-427-2208 | 2009-10-294 | 28 | DIBBS |
Cross Reference | NSN 5360-00-427-2208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11105 | 80924 | BOMAG AMERICAS, INC. DBA (FOREIGN PARENT IS BOMAG GMBH, |
| 22412 | 12472 | LOCKWOOD CORP |
| 5360004272208 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8687048 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| TP148 | 6H608 | TRANSIT PARTS CO |
| UB2205 | 26697 | MANITEX LOAD KING, INC. DIV LOAD KING |
| UB2205 | 56697 | STANDARD FORGE AND AXLE CO INC |
| UB2205 | 56983 | STANDARD TRAILER CO |
| UB2205 | 72869 | EIDAL INTERNATIONAL CORPORATION |
| UB2205 | 73265 | FONTAINE TRUCK EQUIPMENT CO SUB OF ALTAMIL CORP |
| UB2205 | 80328 | DORSEY TRAILERS INC |
| UB2205 | 82646 | ALLIED PRODUCTS CORP LOADCRAFT DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-427-2208
Related Products | NSN 5360-00-427-2208
Technical Data | NSN 5360-00-427-2208
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,TYPE Z,CLASS 3 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

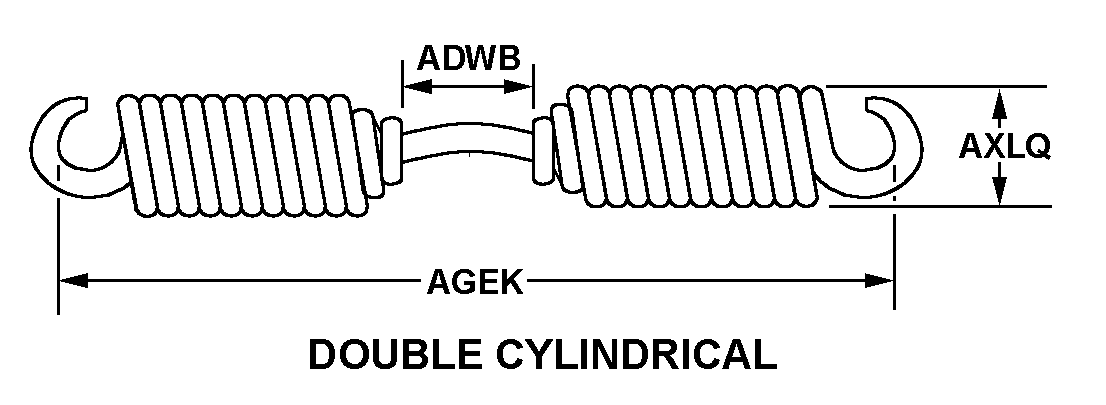

| STYLE DESIGNATOR | B4 DOUBLE CYLINDRICAL |
| DISTANCE BETWEEN ENDS | 0.500 INCHES NOMINAL |
| SPRING FREE LENGTH | 4.399 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.770 INCHES NOMINAL |
| OPENING WIDTH | 0.500 INCHES NOMINAL BOTH ENDS |
| COIL TO HOOK INSIDE LENGTH | 0.844 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.280 INCHES NOMINAL BOTH ENDS |

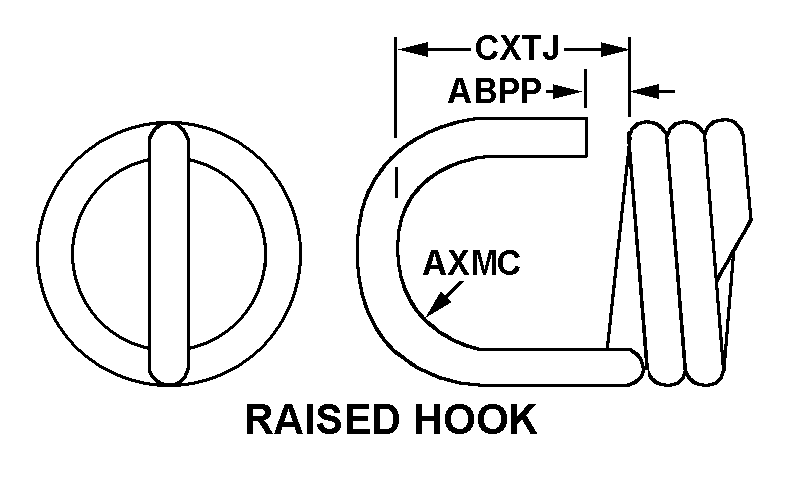

| END STYLE | F14 RAISED HOOK BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 14 |
| DESIGN TYPE | CLOSED |
| MANUFACTURERS CODE | 56697 |
| DESIGN CONTROL REFERENCE | UB2205 |
