NSN 5360-00-334-0460 EB8705, EB8705A, F4723
Product Details | TORSION HELICAL SPRING
5360-00-334-0460 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: EB8705, EB8705A, F4723, 5680E9062, 1905957, 202095, 5360-00-334-0460, 00-334-0460, 5360003340460, 003340460
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-334-0460 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-334-0460
Cross Reference | NSN 5360-00-334-0460
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1905957 | 53496 | SCHRAMM INC. |
| 202095 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 5680E9062 | 66821 | YALE SECURITY INC. DBA NORTON DOOR CONTROL |
| EB8705 | 80072 | H20 TANK INC U S MOTORS DIV |
| EB8705A | 93742 | ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT |
| F4723 | 72850 | PUROLATOR PRODUCTS CO DIV MOTOR COMPONENTS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-334-0460
Technical Data | NSN 5360-00-334-0460
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 1.219 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.375 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 2.094 INCHES NOMINAL |
| HOOK OPENING WIDTH | 0.156 INCHES NOMINAL OVERALL |
| HOOK RADIUS | 0.188 INCHES NOMINAL OVERALL |
| END LENGTH | 0.531 INCHES NOMINAL BOTH ENDS |

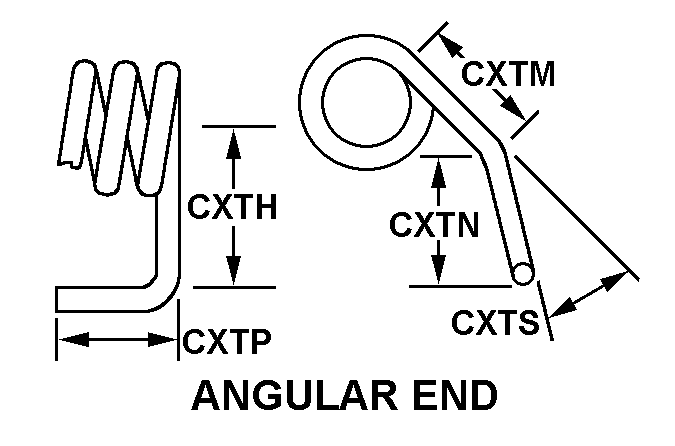

| END STYLE | G46 ANGULAR END OVERALL |
| COIL HELIX DIRECTION | RIGHT-HAND |
| COIL QUANTITY | 7 |
| END ANGULAR RELATIONSHIP | ENDS ANGLED ONE TO OTHER |
| MANUFACTURERS CODE | 72850 |
| DESIGN CONTROL REFERENCE | F4723 |
Restrictions/Controls & Freight Information | NSN 5360-00-334-0460
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177970 | SPRINGS NOI STL O/T WIRE |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-334-0460
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
