NSN 5360-00-330-5676 240849011314, 240-8490113-14, 00-330-5676
Product Details | TORSION HELICAL SPRING
5360-00-330-5676 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 240849011314, 240-8490113-14, 5360-00-330-5676, 00-330-5676, 5360003305676, 003305676
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-330-5676 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-330-5676
Cross Reference | NSN 5360-00-330-5676
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-330-5676
Technical Data | NSN 5360-00-330-5676
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-6101 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 0.538 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.480 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.680 INCHES NOMINAL |

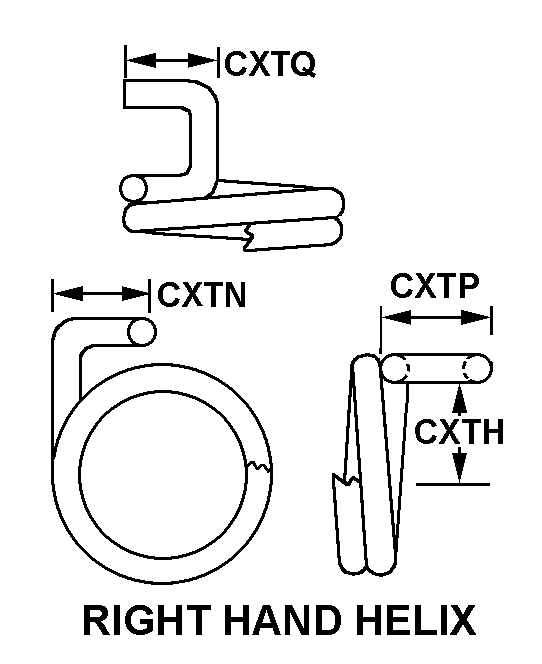

| END STYLE | G6 RIGHT HAND HELIX OVERALL |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 3-5/8 |
| END ANGULAR RELATIONSHIP | ENDS PARALLEL ONE TO OTHER |
| MANUFACTURERS CODE | 7B709 |
| DESIGN CONTROL REFERENCE | 240-8490113-14 |
Restrictions/Controls & Freight Information | NSN 5360-00-330-5676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-330-5676
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
