NSN 5360-00-218-4059 114969-592, 114973PC592, 115969-592
Product Details | TORSION HELICAL SPRING
5360-00-218-4059 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 114969-592, 114973PC592, 115969-592, 115971PC592, 115973PC592, 5360-00-218-4059, 00-218-4059, 5360002184059, 114969592, 115969592, 002184059
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-218-4059 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-218-4059
Cross Reference | NSN 5360-00-218-4059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114969-592 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 114969-592 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 114973PC592 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 114973PC592 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 115969-592 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 115969-592 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 115971PC592 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 115971PC592 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 115973PC592 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 115973PC592 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-218-4059
Technical Data | NSN 5360-00-218-4059
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| SPRING FREE LENGTH | 0.156 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| END LENGTH | 3.625 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.250 INCHES NOMINAL OVERALL |

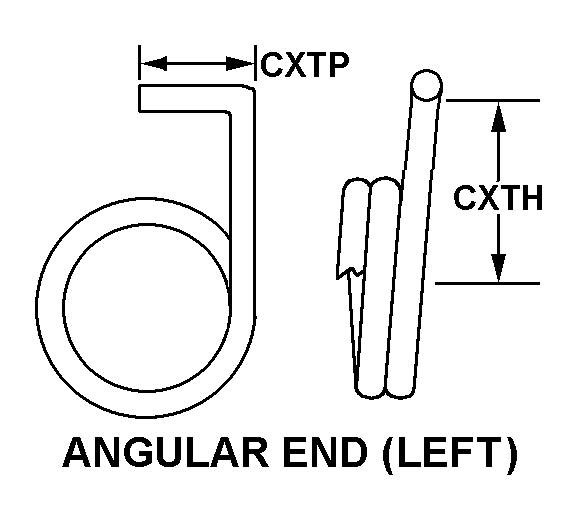

| END STYLE | G22 ANGULAR END OVERALL |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 1-1/2 |
| END ANGULAR RELATIONSHIP | ENDS PARALLEL ONE TO OTHER |
Restrictions/Controls & Freight Information | NSN 5360-00-218-4059
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-218-4059
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
