NSN 5355-01-075-7213 K10060, 01-075-7213, 010757213
Product Details | SHAFT LOCK
5355-01-075-7213 An item designed to be attached in place of the mounting bushing nut and/or attached to the chassis or panel for a volume control, a variable capacitor or the like to permit locking the shaft in a fixed position.
Part Alternates: K10060, 5355-01-075-7213, 01-075-7213, 5355010757213, 010757213
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 APR 1979 | 01-075-7213 | 67474 ( LOCK, SHAFT ) |
Drawings & Photos | NSN 5355-01-075-7213
Cross Reference | NSN 5355-01-075-7213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K10060 | 76487 | MILLEN JAMES MFG CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5355-01-075-7213
Related Products | NSN 5355-01-075-7213
Technical Data | NSN 5355-01-075-7213
| Characteristic | Specifications |
|---|---|

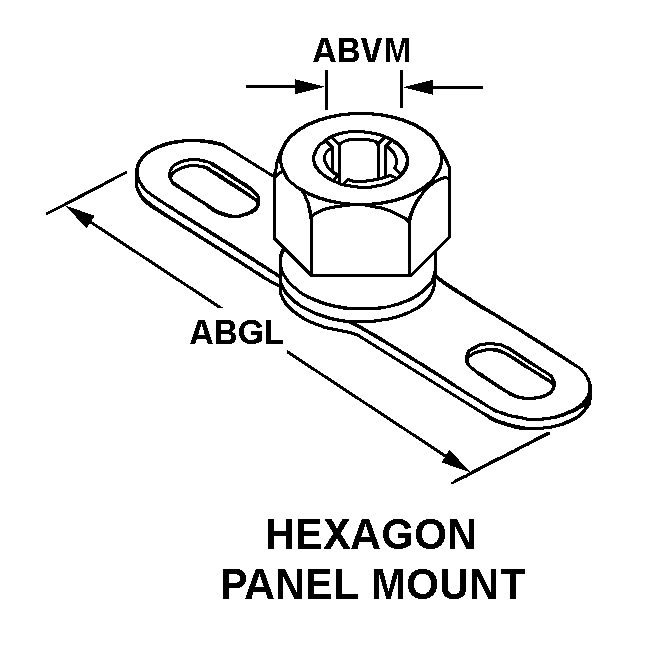

| STYLE DESIGNATOR | A141 HEXAGON PANEL MOUNT |
| ACCOMMODATED SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| WIDTH | 1.750 INCHES NOMINAL |
| ATTACHMENT METHOD | ELONGATED HOLE |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| SPECIAL FEATURES | 0.375-32 BUSHING WITH0.438 IN. HEX NUT,EACH IS BRASS,NICKEL FINISH;SPECIAL QUILITY CONTROL TESTING; TEST DATA DOCUMENT, A81349-MIL-P-23199 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY PACKAGING IN ACCORDANCE WITH MIL-P-23199 AND MATERIAL CONFORMING TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 76487 |
| DESIGN CONTROL REFERENCE | K10060 |
Restrictions/Controls & Freight Information | NSN 5355-01-075-7213
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-01-075-7213
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
