NSN 5355-01-075-8246 MS2138514MNN, MS21385-14MNN, MS2138544
Product Details | KNOB
5355-01-075-8246 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: MS2138514MNN, MS21385-14MNN, MS2138544, MS21385-44, 5355-01-075-8246, 01-075-8246, 5355010758246, 010758246
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 APR 1979 | 01-075-8246 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-01-075-8246
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-075-8246
Technical Data | NSN 5355-01-075-8246
| Characteristic | Specifications |
|---|---|

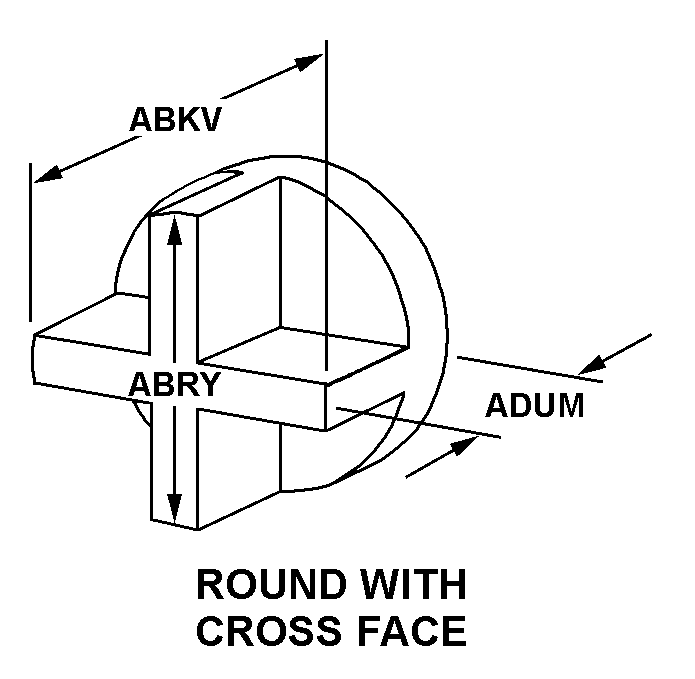

| STYLE DESIGNATOR | A26 ROUND WITH CROSS FACE |
| OUTSIDE DIAMETER | 0.880 INCHES MINIMUM |
| LENGTH | 0.880 INCHES MINIMUM |
| OVERALL THICKNESS | 0.750 INCHES MINIMUM |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.310 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF SCREW HOLE |
| NOMINAL THREAD SIZE | 0.190 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E4 FLATTED ONE SIDE |
| INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| OVERALL DEPTH | 0.620 INCHES NOMINAL |
| INSIDE WIDTH | 0.222 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| COLOR | GRAY, FED STD 595, 36231 |
| REFERENCE MARKING | INDEX LINE |
| SPECIFICATION/STANDARD DATA | 96906-MS21385 GOVERNMENT STANDARD |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290,CLASS2,GRADE G FED SPEC SINGLE TREATMENT RESPONSE 595,36231 FED STD SINGLE TREATMENT RESPONSE 595,37875 FED STD SINGLE TREATMENT RESPONSE |
| (NON-CORE DATA) SURFACE LUSTER | LUSTERLESS |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC ALL MATERIAL RESPONSES |
| (NON-CORE DATA) SURFACE TREATMENT | NICKEL PAINT PAINT PASSIVATE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21385-14MNN |
Restrictions/Controls & Freight Information | NSN 5355-01-075-8246
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-01-075-8246
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
