NSN 5355-00-677-5376 1507847PC2, 00-677-5376, 006775376
Product Details | CONTROL DIAL
5355-00-677-5376 A dial designed to be connected to a tuning or selecting mechanism to position the mechanism to some value within its adjustable range. It is designed to be read in conjunction with a vernier indicator, pointer, or like instruments which may or may not be an integral part of the item. May include a knob. For items with one graduation, letter, or symbol, or marked to indicate the position of items such as a valve, brake, or two position switch, see KNOB or HANDWHEEL. See also DIAL, SCALE.
Part Alternates: 1507847PC2, 5355-00-677-5376, 00-677-5376, 5355006775376, 006775376
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-677-5376 | 03265 ( DIAL, CONTROL ) |
Drawings & Photos | NSN 5355-00-677-5376
Cross Reference | NSN 5355-00-677-5376
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1507847PC2 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-677-5376
Technical Data | NSN 5355-00-677-5376
| Characteristic | Specifications |
|---|---|

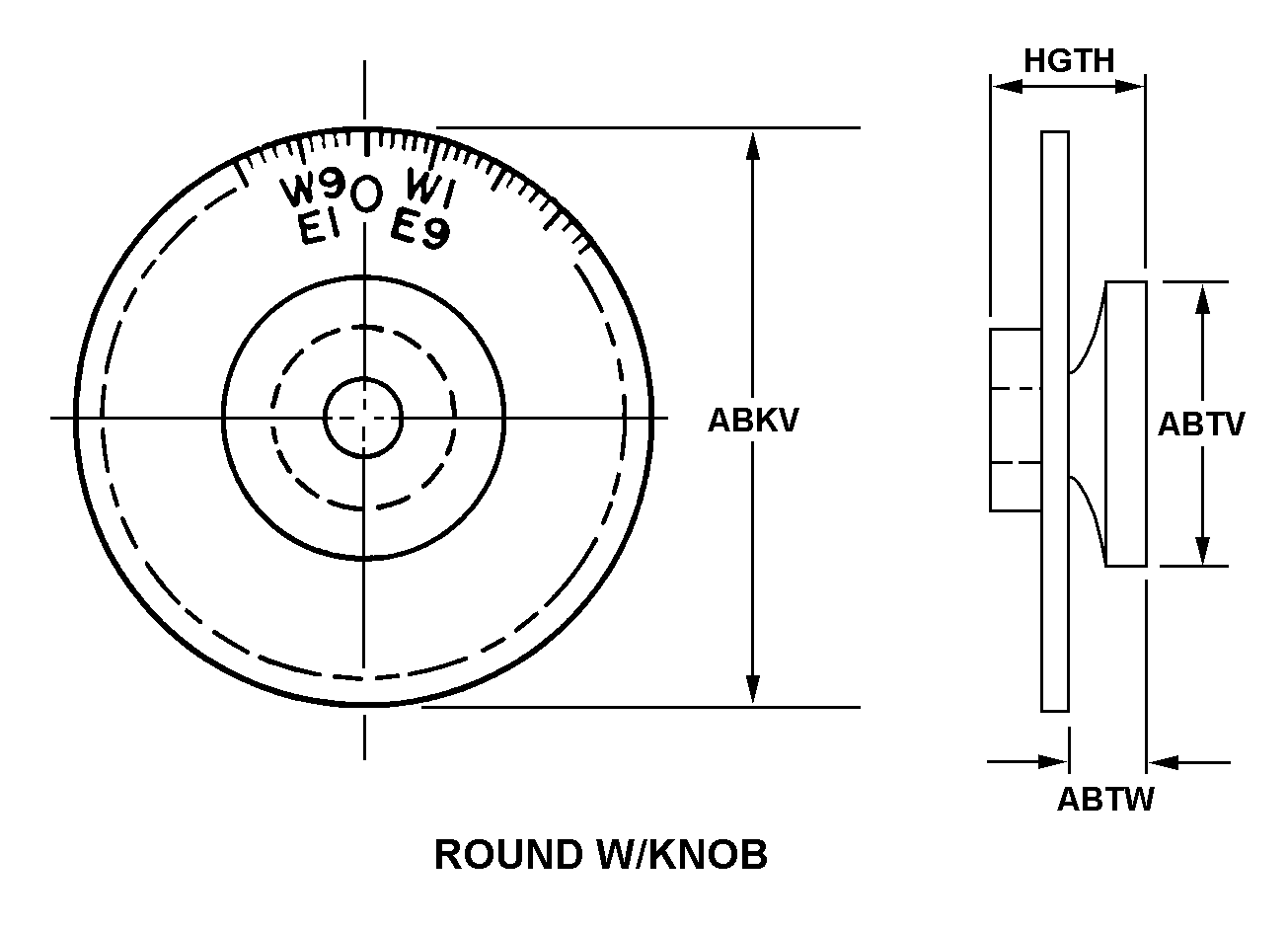

| STYLE DESIGNATOR | A82 ROUND W/KNOB |
| OUTSIDE DIAMETER | 3.020 INCHES NOMINAL |
| HEIGHT | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| ATTACHMENT METHOD | HOLE |
| MATERIAL | PLASTIC OVERALL |
| POSITIONING MECHANISM TYPE | KNOB |
| DRIVE TYPE | DIRECT |
| (NON-CORE DATA) OVERALL DEPTH | 0.030 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-77 MIL SPEC SINGLE MATERIAL RESPONSE |
| (NON-CORE DATA) INSIDE DIAMETER | 0.4380 INCHES MINIMUM AND 0.4384 INCHES MAXIMUM |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1507847PC2 |
Restrictions/Controls & Freight Information | NSN 5355-00-677-5376
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-677-5376
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
