5355-00-925-8250 A dial designed to be connected to a tuning or selecting mechanism to position the mechanism to some value within its adjustable range. It is designed to be read in conjunction with a vernier indicator, pointer, or like instruments which may or may not be an integral part of the item. May include a knob. For items with one graduation, letter, or symbol, or marked to indicate the position of items such as a valve, brake, or two position switch, see KNOB or HANDWHEEL. See also DIAL, SCALE.

Part Alternates: 533C3262, 533C326-2, 5355-00-925-8250, 00-925-8250, 5355009258250, 009258250

Hardware and Abrasives | Knobs and Pointers

Supply Group (FSG) NSN Assign. NIIN
53 24 JAN 1966 00-925-8250

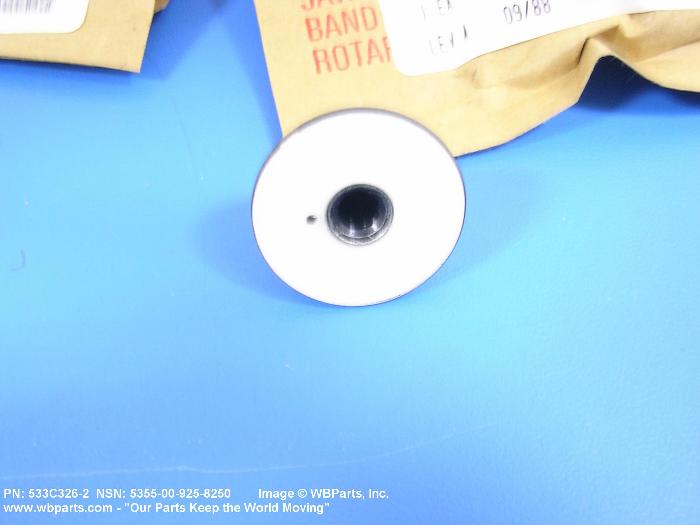

Drawings & Photos | NSN 5355-00-925-8250


Demand History | NSN 5355-00-925-8250

Part Number Request Date QTY Origin
533C3262 2008-04-99 2 Malaysia

Cross Reference | NSN 5355-00-925-8250

Part Number Cage Code Manufacturer
533C326-2 59475 REX SYSTEMS INCORPORATED
533C326-2 94033 CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5355-00-925-8250

Technical Data | NSN 5355-00-925-8250

Characteristic Specifications
STYLE DESIGNATOR A81 ROUND W/KNOB
OUTSIDE DIAMETER 1.250 INCHES NOMINAL
KNOB PORTION DIAMETER 0.750 INCHES NOMINAL
HEIGHT 0.830 INCHES NOMINAL
ATTACHMENT METHOD SETSCREWS
SETSCREW HOLE QUANTITY 2
SCREW DRIVE TYPE CROSS RECESS TYPE 1
DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE 0.236 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNC SCREW HOLE
NOMINAL THREAD SIZE 0.164 INCHES SCREW HOLE
THREAD QUANTITY PER INCH 32 SCREW HOLE
MATERIAL PLASTIC ACRYLIC DIAL ALUMINUM ALLOY 6061 OVERALL
POSITIONING MECHANISM TYPE KNOB
DRIVE TYPE DIRECT

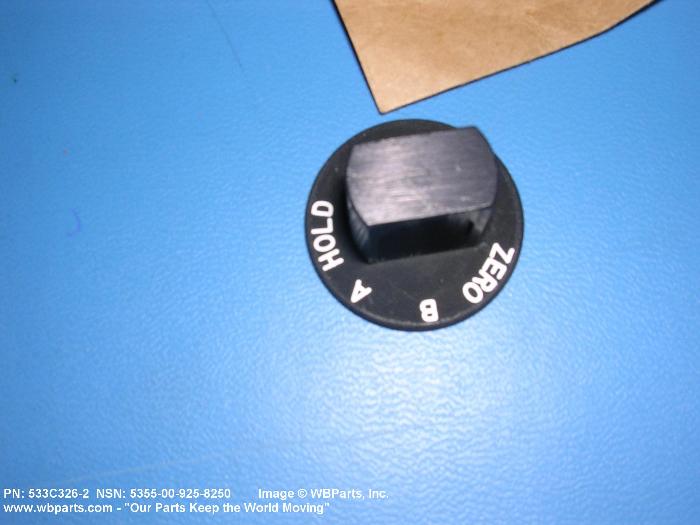

SPECIAL FEATURES MARKED ZERO B A HOLD;ADDITIONAL SCREW HOLE DIAMETER 0.486
(NON-CORE DATA) OVERALL DEPTH 0.643 INCHES NOMINAL
(NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION MIL-P-5425,FINISH A MIL SPEC SINGLE MATERIAL RESPONSE QQ-A-325,T6 FED SPEC SINGLE MATERIAL RESPONSE
(NON-CORE DATA) INSIDE DIAMETER 0.2505 INCHES MINIMUM AND 0.2520 INCHES MAXIMUM
MANUFACTURERS CODE 59475
DESIGN CONTROL REFERENCE 533C326-2
