Product Details | DIAL POINTER

5355-00-674-3954 An item intended to be mounted on or associated with a rotating shaft or similar device to determine relative position or definite dial and/or scale readings. Positioning may be indicated by the shape of the item or by a reference line thereon. Excludes CURSOR, INDICATOR and KNOB.

Part Alternates: 913B937P1, 5355-00-674-3954, 00-674-3954, 5355006743954, 006743954

Hardware and Abrasives | Knobs and Pointers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-674-3954

Drawings & Photos | NSN 5355-00-674-3954


Cross Reference | NSN 5355-00-674-3954

Part Number Cage Code Manufacturer
913B937P1 24446 GENERAL ELECTRIC CO
913B937P1 89954 BAE SYSTEMS CONTROLS INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5355-00-674-3954

Technical Data | NSN 5355-00-674-3954

Characteristic Specifications
SURFACE TREATMENT ANODIZE OVERALL

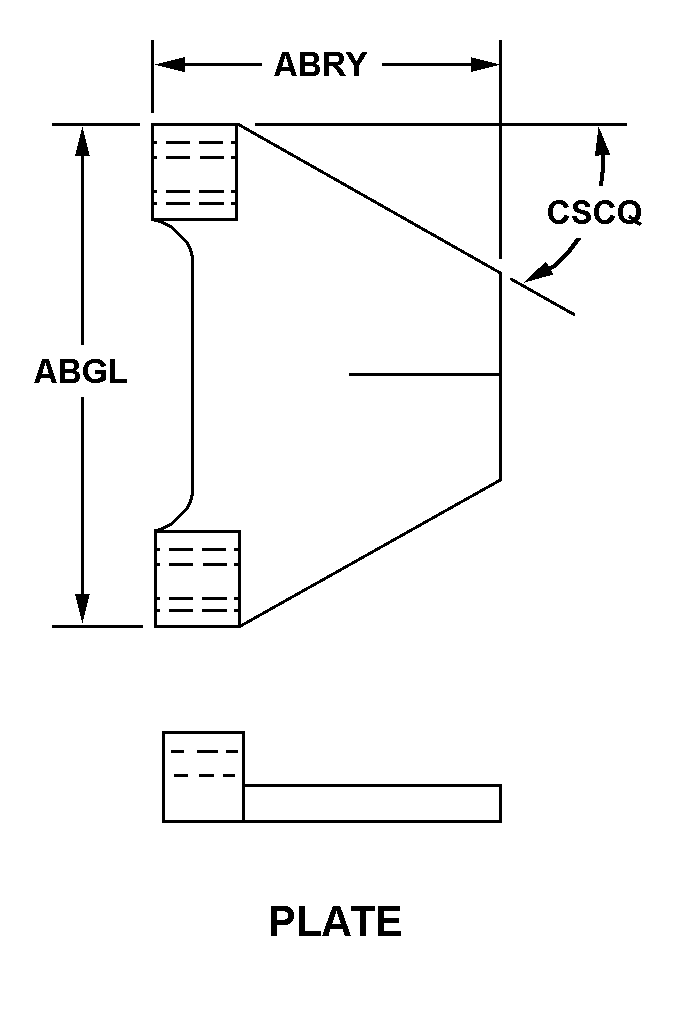

STYLE DESIGNATOR A128 PLATE
WIDTH 1.000 INCHES NOMINAL
LENGTH 0.365 INCHES NOMINAL
MOUNTING HOLE DIAMETER 0.117 INCHES NOMINAL
MOUNTING HOLE QUANTITY 2
MATERIAL TRANSPARENCY OPAQUE
ATTACHMENT METHOD HOLE
SPECIAL FEATURES W/ 0.010 IN. W ENGRAVE LINE,FILL W/ WHITE COMPOUND,D14Y10A,O/A 0.032 IN. THICK
(NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE
MANUFACTURERS CODE 24446
DESIGN CONTROL REFERENCE 913B937P1

Restrictions/Controls & Freight Information | NSN 5355-00-674-3954

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 013120 ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 576 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5355-00-674-3954

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeAYTG:FIRE CONTROL AND BOMBING SYSTEMS
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
