NSN 5355-00-668-5955 7222162, 722216-2, 00-668-5955
Product Details | DIAL POINTER
5355-00-668-5955 An item intended to be mounted on or associated with a rotating shaft or similar device to determine relative position or definite dial and/or scale readings. Positioning may be indicated by the shape of the item or by a reference line thereon. Excludes CURSOR, INDICATOR and KNOB.
Part Alternates: 7222162, 722216-2, 5355-00-668-5955, 00-668-5955, 5355006685955, 006685955
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-668-5955 | 08084 ( POINTER, DIAL ) |
Drawings & Photos | NSN 5355-00-668-5955
Demand History | NSN 5355-00-668-5955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5355-00-668-5955 | 2010-12-337 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-668-5955
Technical Data | NSN 5355-00-668-5955
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |

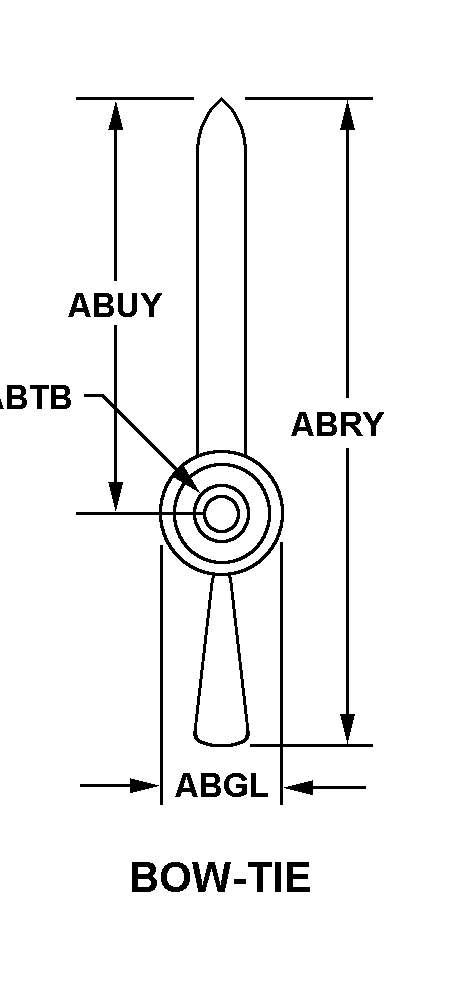

| STYLE DESIGNATOR | A121 BOW-TIE |
| WIDTH | 0.270 INCHES NOMINAL |
| LENGTH | 1.248 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.120 INCHES MINIMUM AND 0.122 INCHES MAXIMUM |
| MATERIAL TRANSPARENCY | OPAQUE |
| ATTACHMENT METHOD | HOLE |
| MANUFACTURERS CODE | 83762 |
| DESIGN CONTROL REFERENCE | 722216-2 |
Restrictions/Controls & Freight Information | NSN 5355-00-668-5955
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
