NSN 5355-00-672-5822 52303, 00-672-5822, 006725822
Product Details | CONTROL DIAL
5355-00-672-5822 A dial designed to be connected to a tuning or selecting mechanism to position the mechanism to some value within its adjustable range. It is designed to be read in conjunction with a vernier indicator, pointer, or like instruments which may or may not be an integral part of the item. May include a knob. For items with one graduation, letter, or symbol, or marked to indicate the position of items such as a valve, brake, or two position switch, see KNOB or HANDWHEEL. See also DIAL, SCALE.
Part Alternates: 52303, 5355-00-672-5822, 00-672-5822, 5355006725822, 006725822
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-672-5822 | 03265 ( DIAL, CONTROL ) |
Drawings & Photos | NSN 5355-00-672-5822
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-672-5822
Technical Data | NSN 5355-00-672-5822
| Characteristic | Specifications |
|---|---|

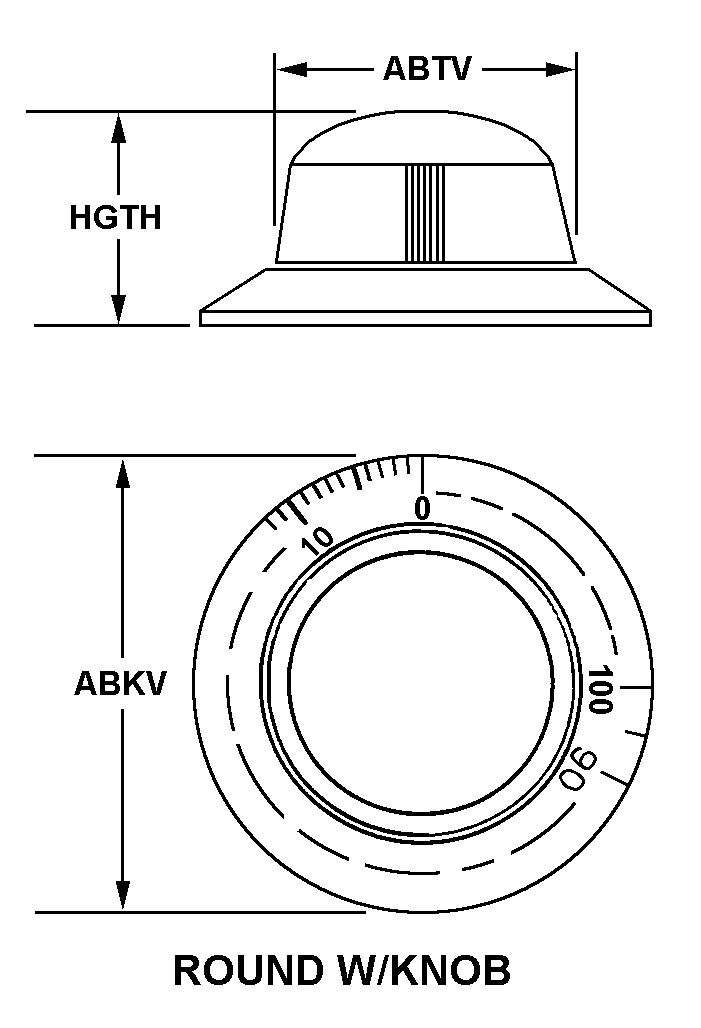

| STYLE DESIGNATOR | A81 ROUND W/KNOB |
| KNOB PORTION DIAMETER | 0.900 INCHES NOMINAL |
| HEIGHT | 1.010 INCHES NOMINAL |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.484 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| POSITIONING MECHANISM TYPE | KNOB |
| (NON-CORE DATA) COUNTERBORE DIAMETER | 0.640 INCHES NOMINAL |
| (NON-CORE DATA) COUNTERBORE DEPTH | 0.320 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL DEPTH | 0.730 INCHES NOMINAL |
| (NON-CORE DATA) INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| MANUFACTURERS CODE | 15280 |
| DESIGN CONTROL REFERENCE | 52303 |
Restrictions/Controls & Freight Information | NSN 5355-00-672-5822
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-672-5822
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
