NSN 5355-00-671-0444 5408210002, 540-8210-002, 00-671-0444
Product Details | CONTROL DIAL
5355-00-671-0444 A dial designed to be connected to a tuning or selecting mechanism to position the mechanism to some value within its adjustable range. It is designed to be read in conjunction with a vernier indicator, pointer, or like instruments which may or may not be an integral part of the item. May include a knob. For items with one graduation, letter, or symbol, or marked to indicate the position of items such as a valve, brake, or two position switch, see KNOB or HANDWHEEL. See also DIAL, SCALE.
Part Alternates: 5408210002, 540-8210-002, 5355-00-671-0444, 00-671-0444, 5355006710444, 006710444
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-671-0444 | 03265 ( DIAL, CONTROL ) |

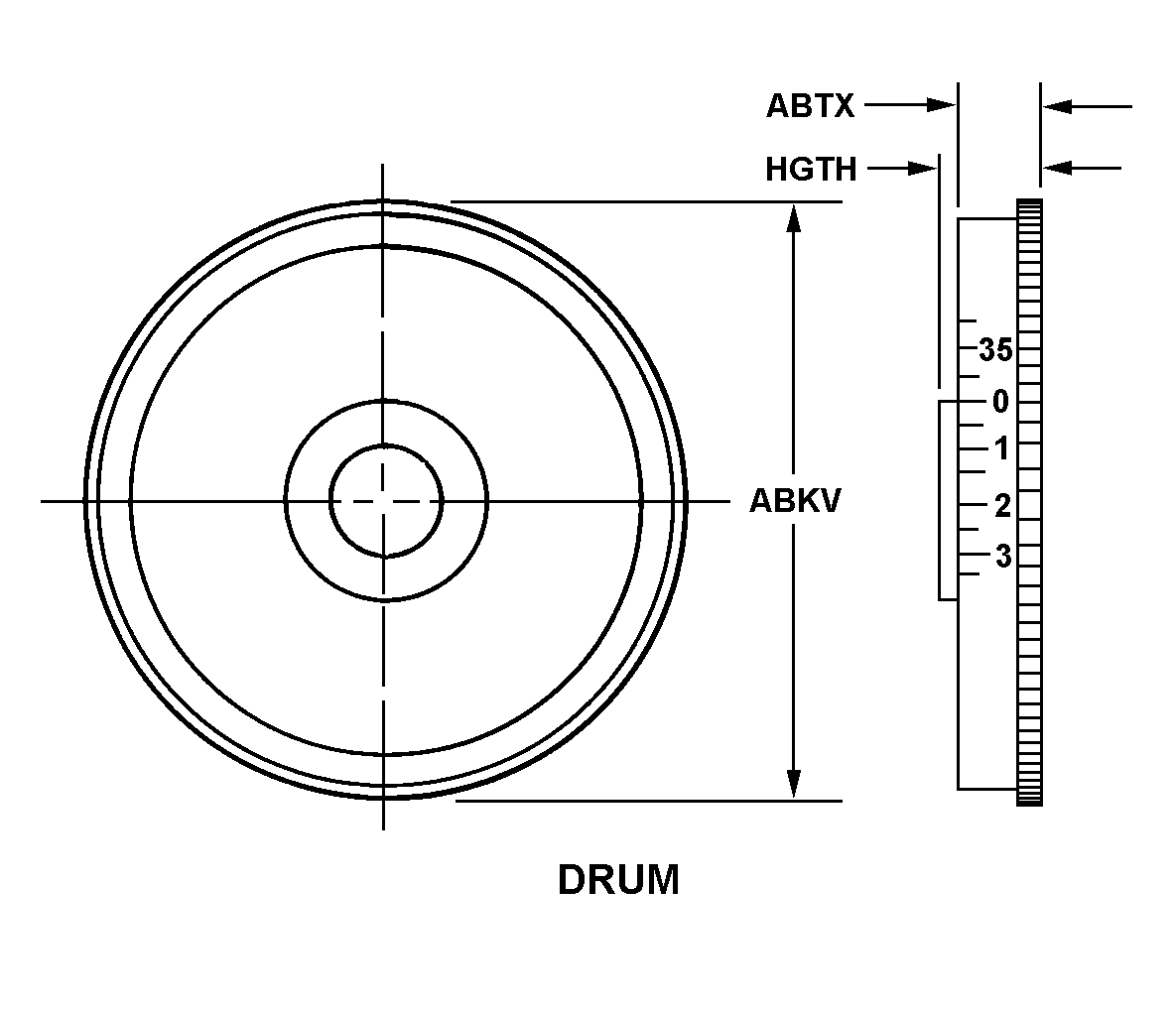

Drawings & Photos | NSN 5355-00-671-0444
Cross Reference | NSN 5355-00-671-0444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 540-8210-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-671-0444
Technical Data | NSN 5355-00-671-0444
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A83 DRUM |
| OUTSIDE DIAMETER | 1.281 INCHES NOMINAL |
| HEIGHT | 0.438 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY DIAL |
| (NON-CORE DATA) FSC APPLICATION DATA | RADIO AND TELEVISION COMMUNICATIONS EQUIPMENT,AIRBORNE |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 540-8210-002 |
Restrictions/Controls & Freight Information | NSN 5355-00-671-0444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-671-0444
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
