NSN 5345-01-036-3446 K-615, K615, 01-036-3446
Product Details | ABRASIVE WHEEL
5345-01-036-3446 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: K-615, K615, 5345-01-036-3446, 01-036-3446, 5345010363446, 010363446
Hardware and Abrasives | Disks and Stones, Abrasive
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 FEB 1977 | 01-036-3446 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 5345-01-036-3446
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5345-01-036-3446
Technical Data | NSN 5345-01-036-3446
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | DIAMOND |
| SCREEN GRIT SIZE DESIGNATOR | 320 |
| USAGE DESIGN | METAL WORKING |
| ABRASIVE DIAMOND POWDER CONCENTRATION DESIGNATION | 25 |

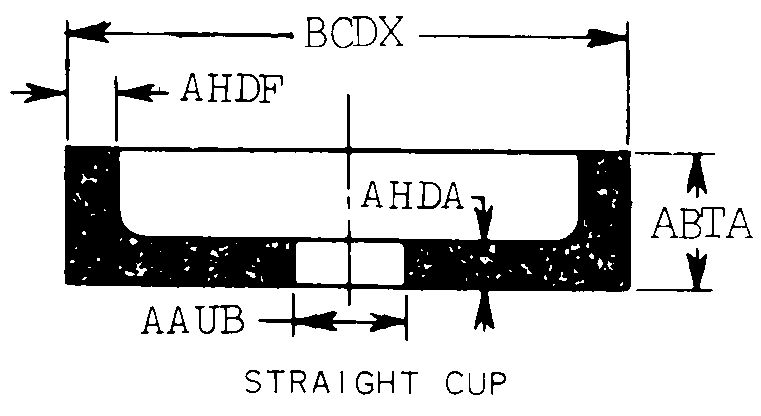

| WHEEL STYLE | 4 STRAIGHT CUP |
| HOLE DIAMETER | 0.438 INCHES NOMINAL |
| OVERALL THICKNESS | 1.500 INCHES NOMINAL |
| HOLE THICKNESS | 0.375 INCHES NOMINAL |
| GRINDING FACE WALL THICKNESS | 0.250 INCHES NOMINAL |
| WHEEL DIAMETER | 3.000 INCHES NOMINAL |
| BINDER MATERIAL | RESINOIDS |
Restrictions/Controls & Freight Information | NSN 5345-01-036-3446
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
