NSN 3460-00-435-0390 B74.3 TY 15A2-6 X 3/4 X 1-1/4, B743TY15A26X34X114, D100M50B116
Product Details | ABRASIVE WHEEL
3460-00-435-0390 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: B74.3 TY 15A2-6 X 3/4 X 1-1/4, B743TY15A26X34X114, D100M50B116, D100-M50-B1-16, 151001, 3460-00-435-0390, 00-435-0390, 3460004350390, 004350390
Metalworking Machinery | Machine Tool accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 20 MAY 1974 | 00-435-0390 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 3460-00-435-0390
Demand History | NSN 3460-00-435-0390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 151001 | 2015-02-57 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3460-00-435-0390
Technical Data | NSN 3460-00-435-0390
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | DIAMOND |
| AVERAGE PARTICLE SIZE DESIGNATOR | 100 |
| USAGE DESIGN | GLASS WORKING |
| ABRASIVE DIAMOND POWDER CONCENTRATION DESIGNATION | 50 |

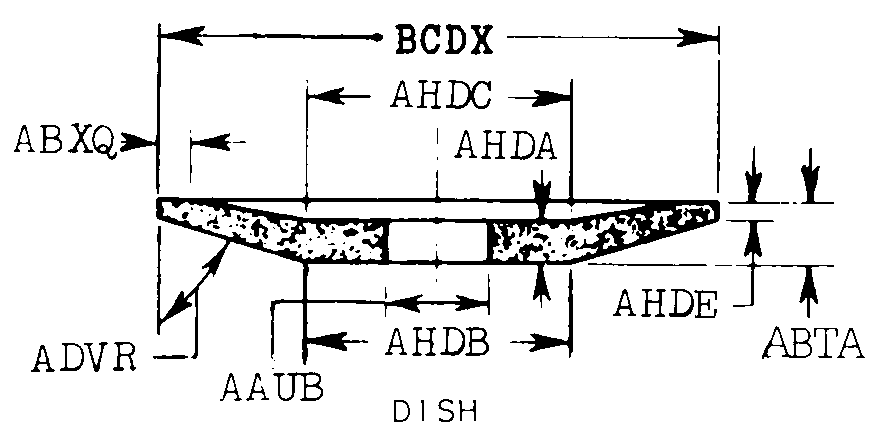

| WHEEL STYLE | 3 DISH |
| HOLE DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL THICKNESS | 0.750 INCHES NOMINAL |
| FLATTED PORTION LENGTH | 0.188 INCHES NOMINAL |
| HOLE THICKNESS | 0.438 INCHES NOMINAL |
| OUTSIDE FLAT DIAMETER | 3.125 INCHES NOMINAL |
| INSIDE FLAT DIAMETER | 3.125 INCHES NOMINAL |
| EDGE WIDTH | 0.062 INCHES NOMINAL |
| WHEEL DIAMETER | 6.000 INCHES NOMINAL |
| ANGLE IN DEG | 45.0 |
| MOUNTING METHOD | ARBOR HOLE |
| MOUNTING OPENING SHAPE STYLE | 1 ROUND |
| DIAMETER | 0.750 INCHES NOMINAL |
| BINDER MATERIAL | RESINOIDS |
| MAXIMUM SPEED RATING IN RPM | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80204-B74.3 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 3460-00-435-0390
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3460-00-435-0390
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
