5345-00-283-2094 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies

Part Alternates: 26247521, 2624752-1, 5345-00-283-2094, 00-283-2094, 5345002832094, 002832094

Hardware and Abrasives | Disks and Stones, Abrasive

Supply Group (FSG) NSN Assign. NIIN
53 25 AUG 1973 00-283-2094

Drawings & Photos | NSN 5345-00-283-2094


Cross Reference | NSN 5345-00-283-2094

Part Number Cage Code Manufacturer
2624752-1 80064 NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5345-00-283-2094

Technical Data | NSN 5345-00-283-2094

Characteristic Specifications
ABRASIVE MATERIAL ALUMINUM OXIDE
SCREEN GRIT SIZE DESIGNATOR 16
USAGE DESIGN METAL WORKING

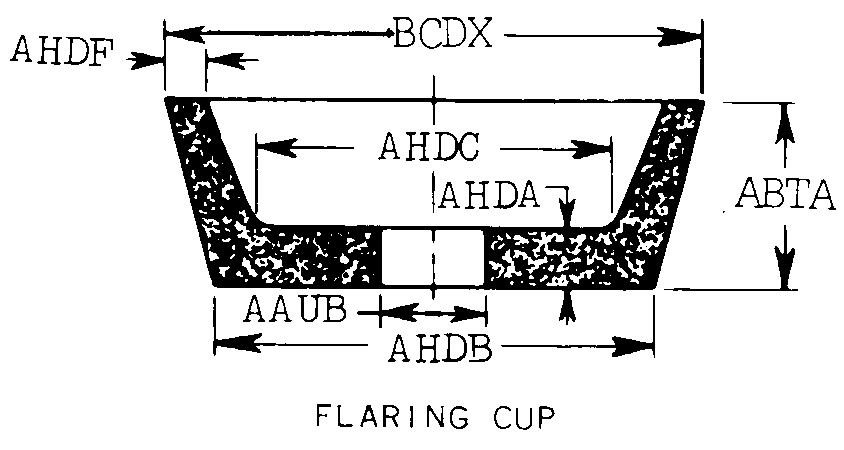

WHEEL STYLE 6 FLARING CUP
HOLE DIAMETER 1.250 INCHES NOMINAL
OVERALL THICKNESS 1.950 INCHES MINIMUM AND 2.020 INCHES MAXIMUM
HOLE THICKNESS 0.730 INCHES MINIMUM AND 0.770 INCHES MAXIMUM
OUTSIDE FLAT DIAMETER 4.125 INCHES NOMINAL
INSIDE FLAT DIAMETER 1.250 INCHES NOMINAL
GRINDING FACE WALL THICKNESS 1.500 INCHES NOMINAL
WHEEL DIAMETER 5.063 INCHES MINIMUM AND 5.250 INCHES MAXIMUM
MOUNTING METHOD ARBOR HOLE
MOUNTING OPENING SHAPE STYLE 1 ROUND
DIAMETER 0.625 INCHES NOMINAL
THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.625-11 UNC
THREAD DIRECTION RIGHT-HAND
BINDER MATERIAL RESINOIDS
ABRASIVE BOND GRADE DESIGNATION Q HARD
