NSN 5342-01-472-6489 AS1895/4-300, AS18954300, SAE AS1895

Product Details | GROOVED CLAMP COUPLING

5342-01-472-6489 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.

Part Alternates: AS1895/4-300, AS18954300, SAE AS1895, SAEAS1895, 75342011602368, 5342-01-472-6489, 01-472-6489, 5342014726489, 014726489

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 MAR 2000	01-472-6489	20319 ( COUPLING, CLAMP, GROOVED )

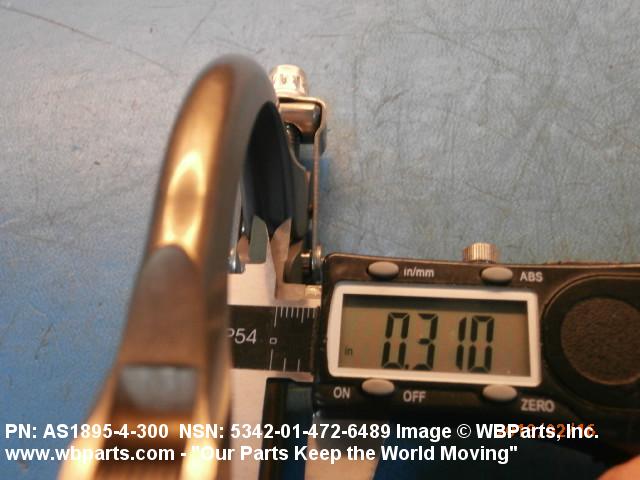

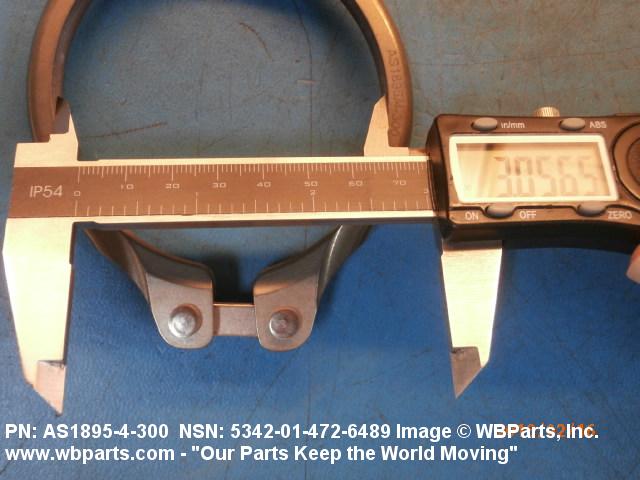

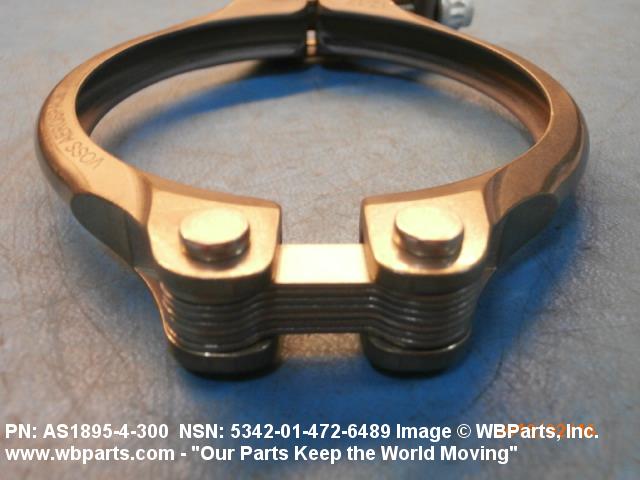

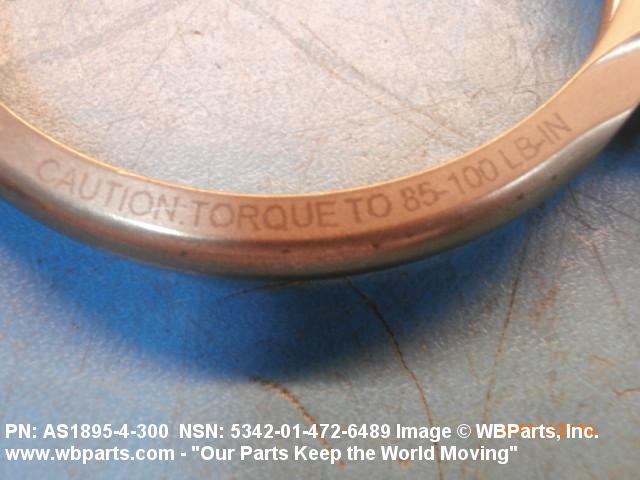

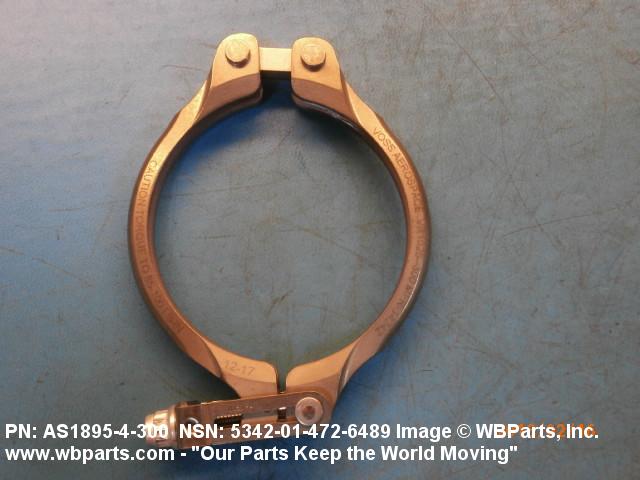

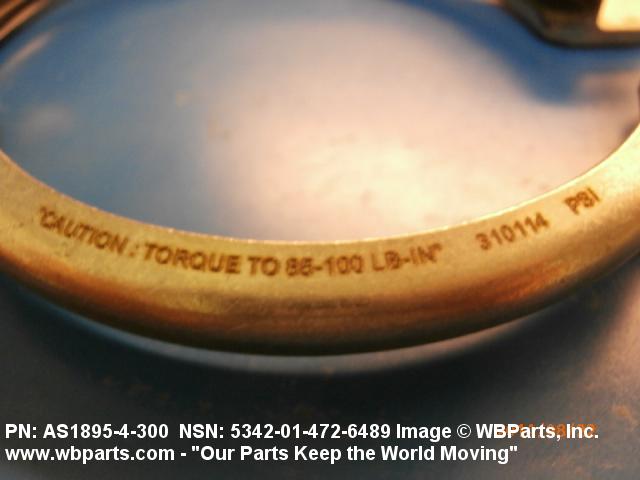

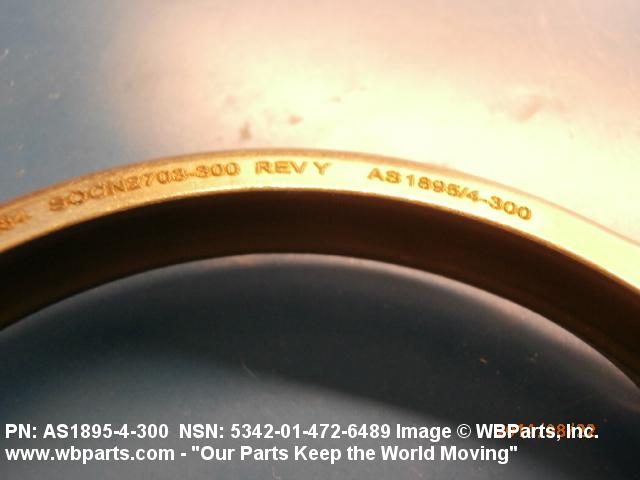

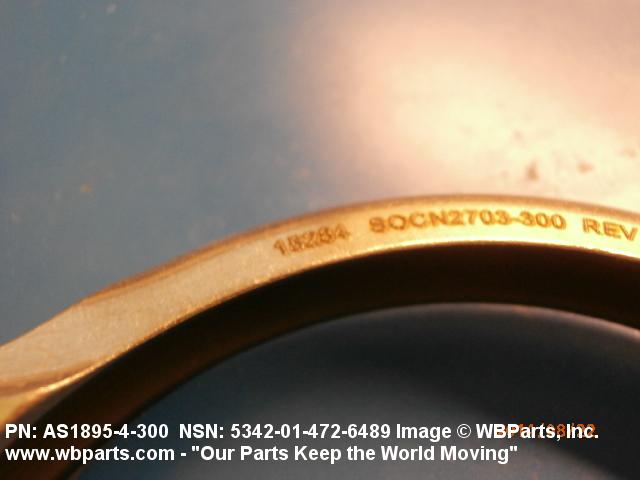

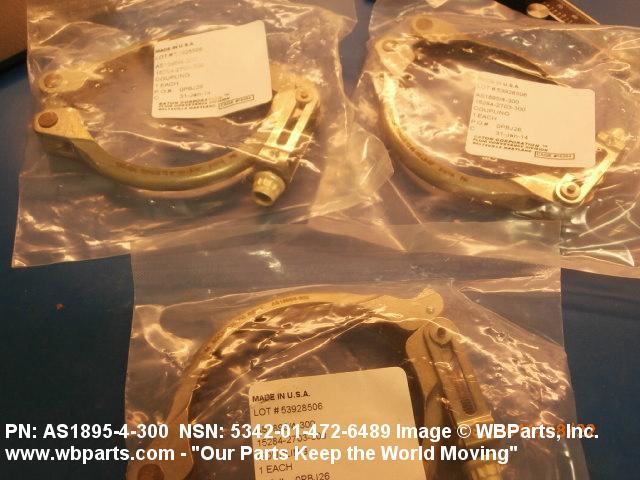

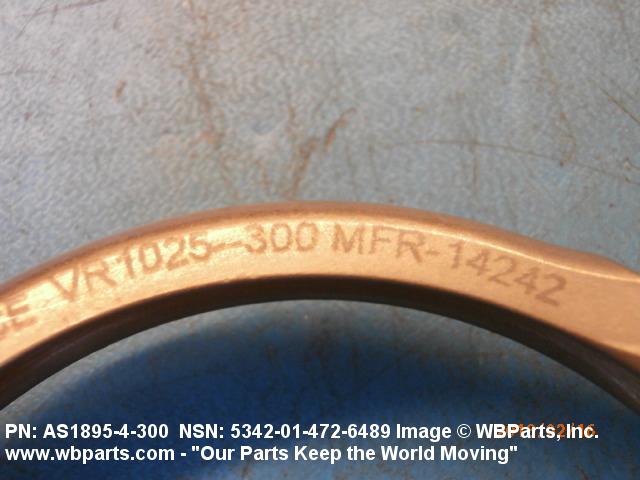

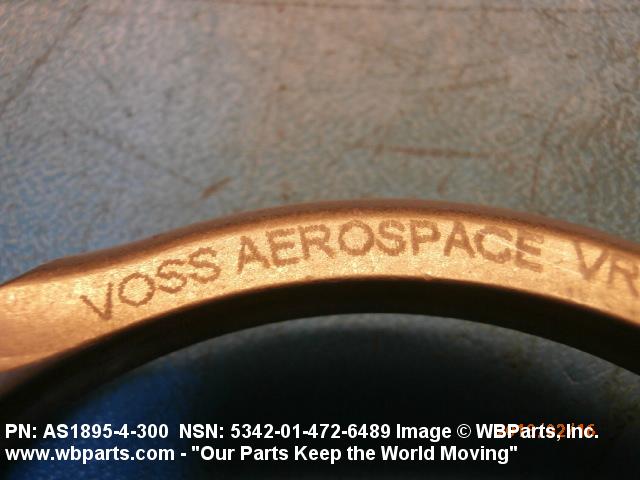

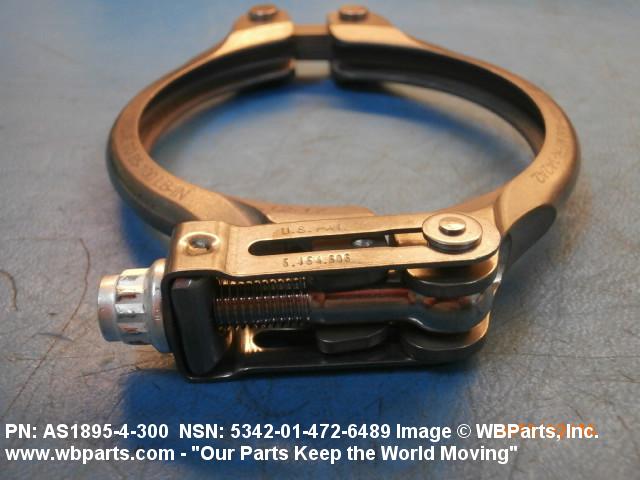

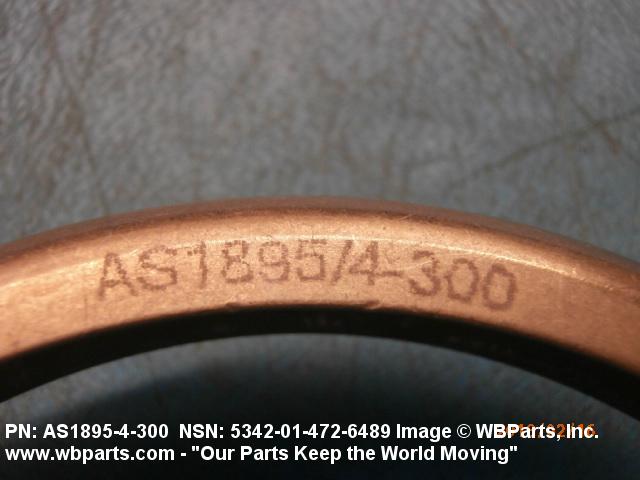

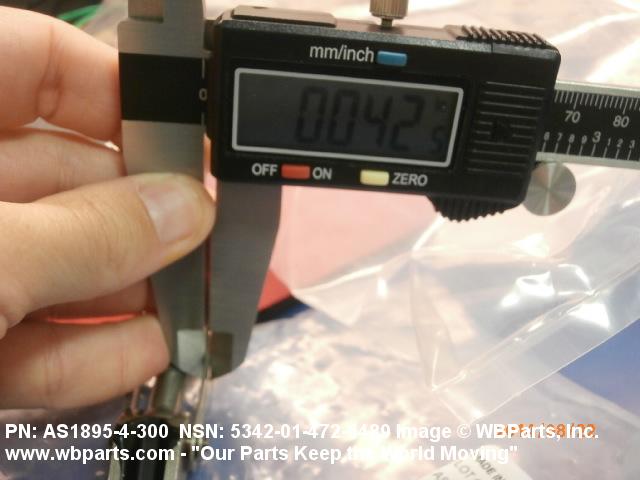

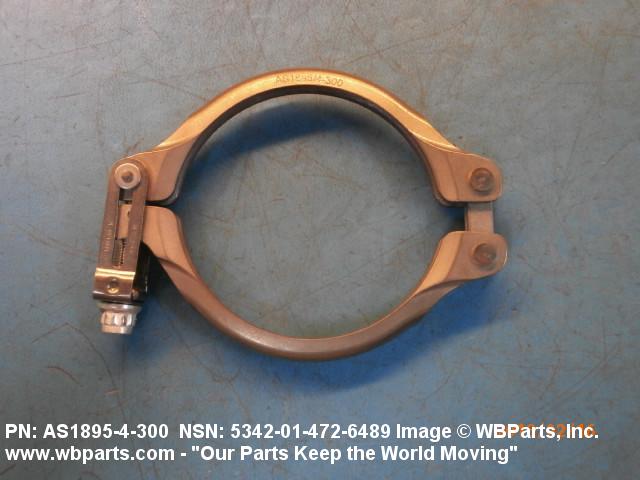

Drawings & Photos | NSN 5342-01-472-6489

Part Number	Request Date	QTY	Origin
AS18954300	2025-04-115	10	US
AS18954300	2025-01-20	4	US
AS18954300	2024-12-366	6	United States
AS18954300	2024-11-324	1	FX
AS18954300	2024-10-304	4	United States
AS18954300	2024-10-299	5	us
AS18954300	2024-09-253	1	United States
AS18954300	2024-09-249	1	Turkey
AS18954300	2024-08-234	7	us
5342-01-472-6489	2023-11-328	1	MX
AS18954300	2023-08-230	8	United States
AS18954300	2023-03-76	4	US
5342-01-472-6489	2022-08-237	628	US
AS18954300	2022-04-118	2	United States
AS18954300	2022-02-45	18	US
AS18954300	2022-02-36	1	United States
AS18954300	2022-02-33	10	United States
5342-01-472-6489	2021-09-266	96	DIBBS
5342-01-472-6489	2021-08-215	180	DIBBS
AS18954300	2021-07-186	3	ES
5342-01-472-6489	2021-06-164	203	DIBBS
AS18954300	2021-02-49	2	Canada
AS18954300	2020-01-21	5	US
AS18954300	2018-12-352	1	US
5342-01-472-6489	2018-11-310	367	DIBBS
5342-01-472-6489	2018-11-309	1	DIBBS-RFPs
5342-01-472-6489	2018-09-269	253	DIBBS
AS18954300	2018-08-213	2	us
5342-01-472-6489	2018-07-185	209	DIBBS
AS18954300	2018-05-143	4	United States
AS18954300	2018-05-124	2	US
5342-01-472-6489	2018-03-66	301	DIBBS
5342-01-472-6489	2018-02-37	5	CA
AS18954300	2018-02-32	1	United States
5342-01-472-6489	2017-12-354	164	DIBBS
5342-01-472-6489	2017-12-348	479	DIBBS
AS18954300	2017-10-282	2	US
AS18954300	2017-07-186	1	Canada
5342-01-472-6489	2015-07-188	127	DIBBS
AS18954300	2015-05-124	3	Germany
5342-01-472-6489	2015-03-74	113	DIBBS
5342-01-472-6489	2015-02-35	120	DIBBS
5342-01-472-6489	2014-11-308	181	DIBBS
AS18954300	2014-08-218	3	US
AS18954300	2014-08-216	3	United States
5342-01-472-6489	2014-08-213	3	US
AS1895/4-300	2014-06-167	6	FR
AS18954300	2014-06-156	2	United States
AS18954300	2014-06-154	2	Canada
AS18954300	2014-06-154	4	Canada
AS18954300	2014-06-154	6	Canada
AS18954300	2014-03-90	2	FR
AS18954300	2014-01-08	4	Canada
5342-01-472-6489	2014-01-01	242	DIBBS
014726489	2013-01-24	6	US
5342-01-472-6489	2012-09-268	880	DIBBS
5342-01-472-6489	2011-10-297	953	DIBBS
5342-01-472-6489	2011-04-111	572	DIBBS
5342-01-472-6489	2010-10-291	90	DIBBS
5342-01-472-6489	2009-09-246	216	DIBBS
5342-01-472-6489	2009-09-244	464	DIBBS
5342-01-472-6489	2009-08-232	142	DIBBS
5342-01-472-6489	2009-08-222	67	DIBBS
5342-01-472-6489	2009-08-215	340	DIBBS
5342-01-472-6489	2009-05-125	123	DIBBS
5342-01-472-6489	2009-04-113	54	DIBBS
AS18954300	2009-01-27	10	US
AS18954300	2008-10-302	3	us

Cross Reference | NSN 5342-01-472-6489

Part Number	Cage Code	Manufacturer
75342011602368	80132	NAVAL INVENTORY CONTROL POINT
AS1895/4-300	0U583	SAE INTERNATIONAL
AS1895/4-300	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
SAE AS1895	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5342-01-472-6489

Compare

Related Products | NSN 5342-01-472-6489

5342-01-472-6494, 5342-01-472-6604, 5342-01-472-6606, 5342-01-472-6675, 5342-01-472-7554

Technical Data | NSN 5342-01-472-6489

Characteristic	Specifications
CROSS-SECTIONAL SHAPE STYLE	10A GROOVED RETAINER
GROOVE WIDTH	0.312 INCHES NOMINAL

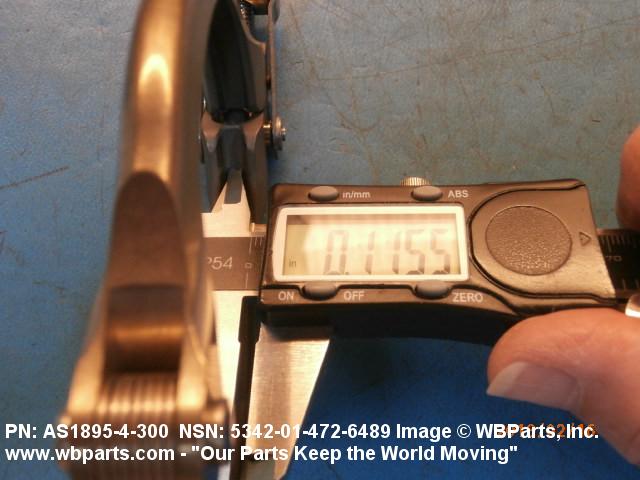

RETAINER THICKNESS	0.105 INCHES MAXIMUM

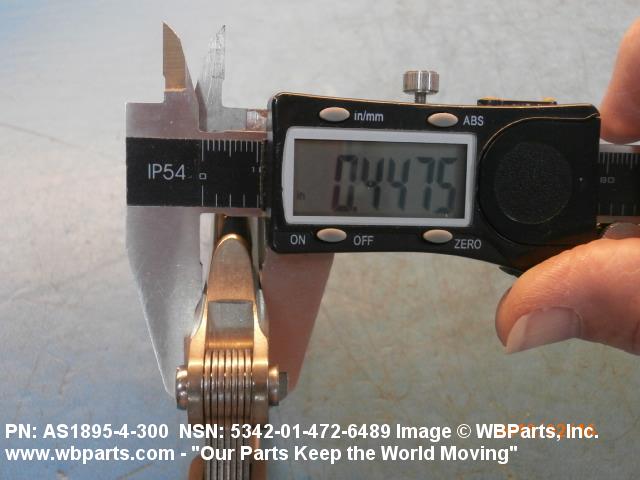

RETAINER WIDTH	0.440 INCHES MAXIMUM
ROOT WIDTH	0.143 INCHES MINIMUM AND 0.153 INCHES MAXIMUM
HEIGHT	0.177 INCHES MINIMUM AND 0.225 INCHES MAXIMUM
INCLUDED ANGLE IN DEG	38.5
MATERIAL AND LOCATION	IRON ALLOY, AMS 5525, COMP 660 OVERALL OR IRON ALLOY, AMS 5732, COMP 660 OVERALL IRON ALLOY, AMS 5732, COMP 660 TRUNNION AND IRON ALLOY, AMS 5732, COMP 660 BOLT AND IRON ALLOY, AMS 5732, COMP 660 PIN AND IRON ALLOY, AMS 5732, COMP 660 NUT
SURFACE TREATMENT AND LOCATION	PASSIVATED, QQ-P-35 OVERALL SILVER PLATED NUT
SHAPE	ROUND

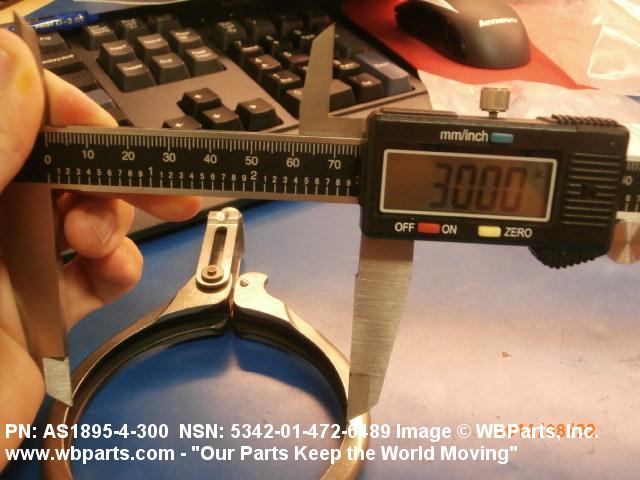

INSIDE DIAMETER	3.000 INCHES NOMINAL
LATCH STYLE	30 SINGLE
NUT TYPE	SELF-LOCKING CAP
SEGMENT QUANTITY	1
SEALING INNER LINER	NOT INCLUDED
TEMP RATING	NOT RATED
MAXIMUM LOAD RATING	NOT RATED
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	NUT SILVER
III END ITEM IDENTIFICATION	A/F-18 ACFT

Restrictions/Controls & Freight Information | NSN 5342-01-472-6489

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5342-01-472-6489

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
