NSN 5342-01-472-6606 AS1895/4-150, AS18954150, SAE AS1895
Product Details | GROOVED CLAMP COUPLING
5342-01-472-6606 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: AS1895/4-150, AS18954150, SAE AS1895, SAEAS1895, 75342003169231, 5342-01-472-6606, 01-472-6606, 5342014726606, 014726606
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAR 2000 | 01-472-6606 | 20319 ( COUPLING, CLAMP, GROOVED ) |

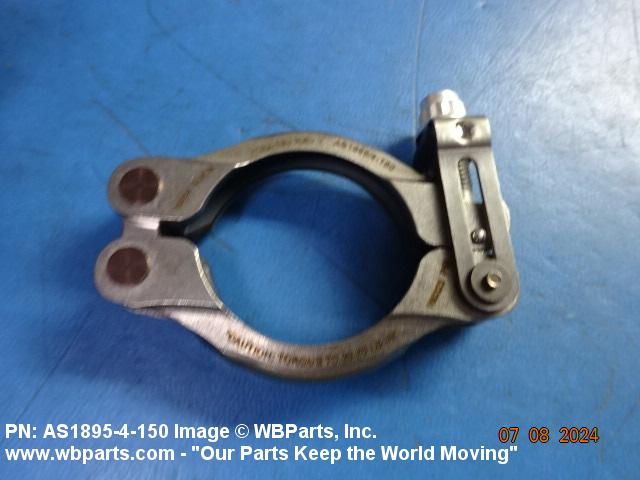

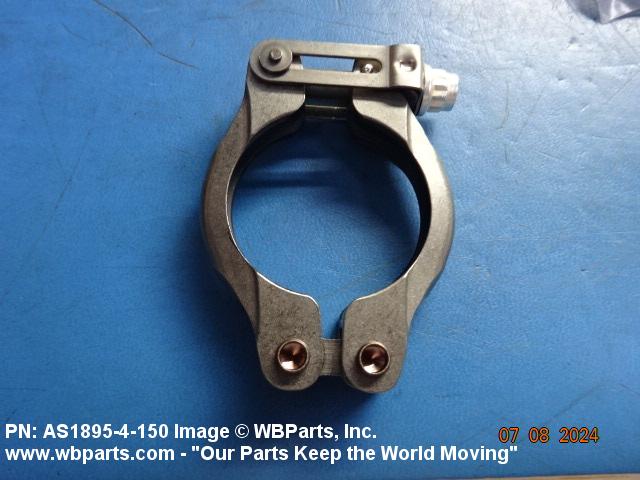

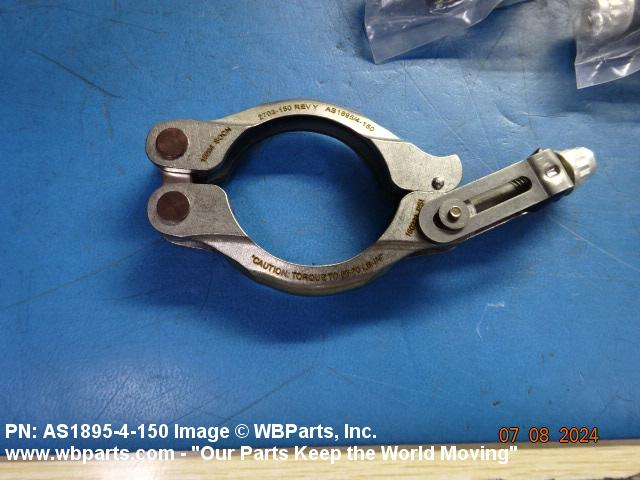

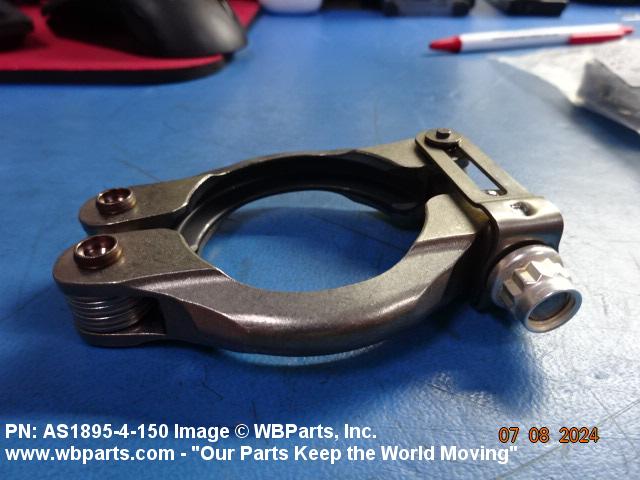

Drawings & Photos | NSN 5342-01-472-6606
Demand History | NSN 5342-01-472-6606
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-472-6606 | 2025-02-34 | 189 | DIBBS |
| AS18954150 | 2024-06-158 | 6 | United States |
| AS18954150 | 2023-08-243 | 10 | United States |
| AS1895 | 2023-08-236 | 189 | DIBBS |
| AS1895/4-150 | 2023-08-236 | 189 | DIBBS |
| AS1895 | 2023-06-156 | 170 | DIBBS |
| AS1895/4-150 | 2023-06-156 | 170 | DIBBS |
| 5342-01-472-6606 | 2022-07-200 | 41 | DIBBS |
| 5342-01-472-6606 | 2022-04-102 | 97 | DIBBS |
| 5342-01-472-6606 | 2022-03-82 | 59 | DIBBS |
| 5342-01-472-6606 | 2021-12-342 | 33 | DIBBS |
| 5342-01-472-6606 | 2021-11-334 | 26 | DIBBS |
| 5342-01-472-6606 | 2021-10-293 | 7 | DIBBS |
| 5342-01-472-6606 | 2021-10-293 | 12 | DIBBS |
| 5342-01-472-6606 | 2021-09-266 | 7 | DIBBS |
| 5342-01-472-6606 | 2021-06-164 | 12 | DIBBS |
| 5342-01-472-6606 | 2018-04-106 | 1 | DIBBS-RFPs |
| 5342-01-472-6606 | 2018-02-37 | 24 | DIBBS |
| 5342-01-472-6606 | 2017-11-317 | 21 | DIBBS |
| 5342-01-472-6606 | 2017-09-262 | 24 | DIBBS |
| 5342-01-472-6606 | 2017-09-249 | 21 | DIBBS |
| 5342-01-472-6606 | 2017-03-81 | 51 | DIBBS |
| 5342-01-472-6606 | 2016-06-162 | 1 | United States |
| 5342-01-472-6606 | 2013-04-99 | 106 | DIBBS |
| 5342-01-472-6606 | 2009-07-189 | 60 | DIBBS |
| 5342-01-472-6606 | 2009-06-174 | 60 | DIBBS |
| 5342-01-472-6606 | 2009-04-114 | 4 | DIBBS |
| 5342-01-472-6606 | 2009-04-105 | 60 | DIBBS |
| 5342-01-472-6606 | 2009-02-36 | 24 | DIBBS |
| 5342-01-472-6606 | 2008-10-280 | 13 | DIBBS |
| AS18954150 | 2007-08-225 | 15 | Netherlands |
| AS18954150 | 2007-08-225 | 15 | Netherlands |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-472-6606
Related Products | NSN 5342-01-472-6606
Technical Data | NSN 5342-01-472-6606
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 10A GROOVED RETAINER |
| GROOVE WIDTH | 0.312 INCHES NOMINAL |
| RETAINER THICKNESS | 0.105 INCHES MAXIMUM |
| RETAINER WIDTH | 0.440 INCHES MAXIMUM |
| ROOT WIDTH | 0.143 INCHES MINIMUM AND 0.153 INCHES MAXIMUM |
| HEIGHT | 0.177 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| INCLUDED ANGLE IN DEG | 38.5 |
| MATERIAL AND LOCATION | IRON ALLOY, AMS 5525, COMP 660 OVERALL OR IRON ALLOY, AMS 5732, COMP 660 OVERALL IRON ALLOY, AMS 5732, COMP 660 TRUNNION AND IRON ALLOY, AMS 5732, COMP 660 BOLT AND IRON ALLOY, AMS 5732, COMP 660 PIN AND IRON ALLOY, AMS 5732, COMP 660 NUT |
| SURFACE TREATMENT AND LOCATION | PASSIVATED, QQ-P-35 OVERALL SILVER PLATED NUT |
| SHAPE | ROUND |
| INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| LATCH STYLE | 30 SINGLE |
| NUT TYPE | SELF-LOCKING CAP |
| SEGMENT QUANTITY | 1 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | NUT SILVER |
| III END ITEM IDENTIFICATION | A/F-18 ACFT |
Restrictions/Controls & Freight Information | NSN 5342-01-472-6606
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146190 | GUN CARRAIGES/MOUNTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-472-6606
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
