NSN 5340-01-596-8431 MS20001PA5350, MS20001PA5-350, 01-596-8431
Product Details | SPEC BUTT HINGE
5340-01-596-8431 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: MS20001PA5350, MS20001PA5-350, 5340-01-596-8431, 01-596-8431, 5340015968431, 015968431
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAY 2011 | 01-596-8431 | 22894 ( HINGE, BUTT ) |

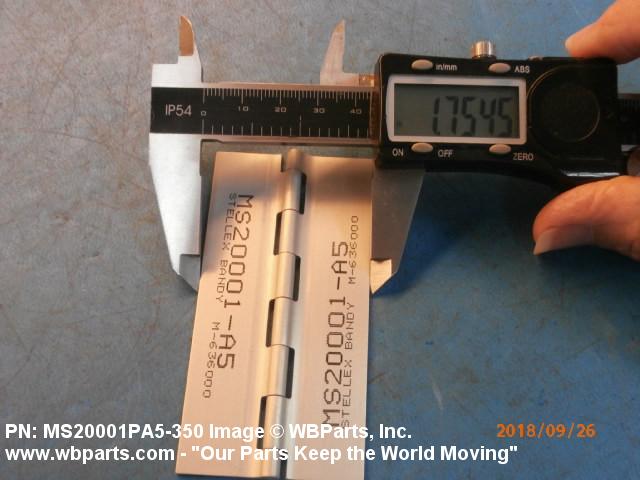

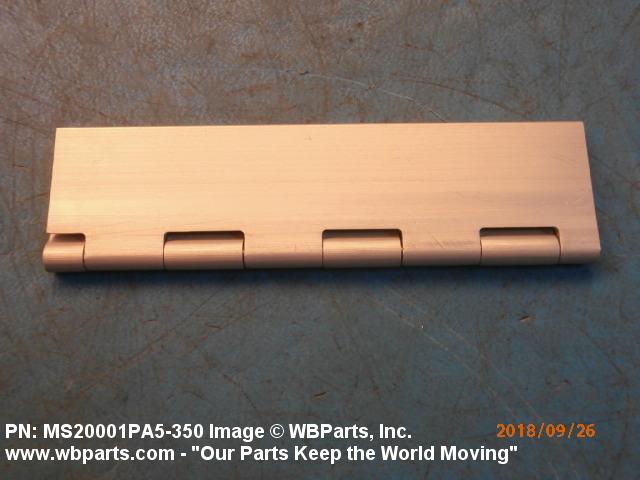

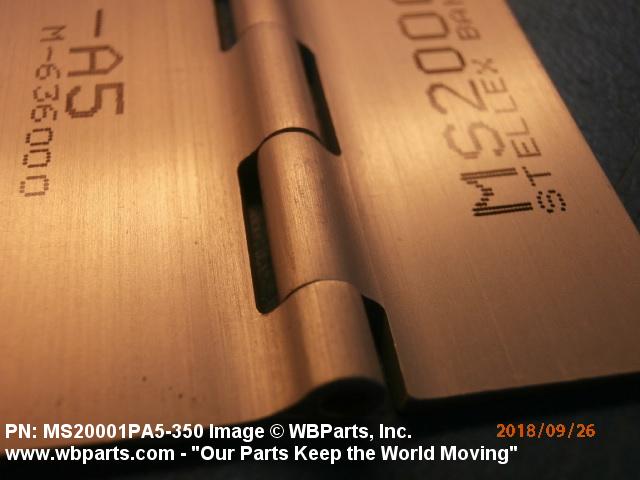

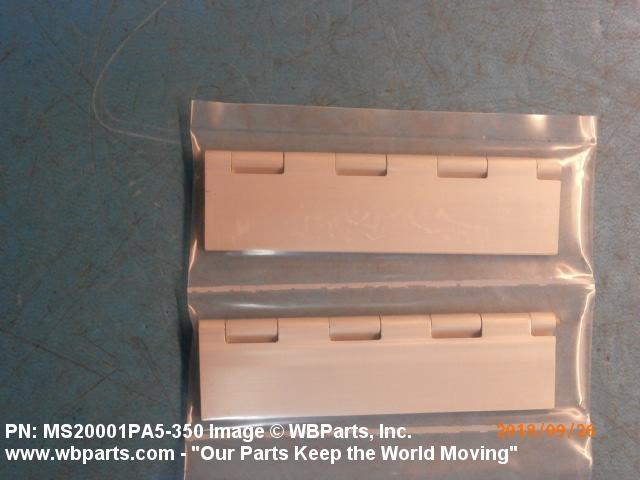

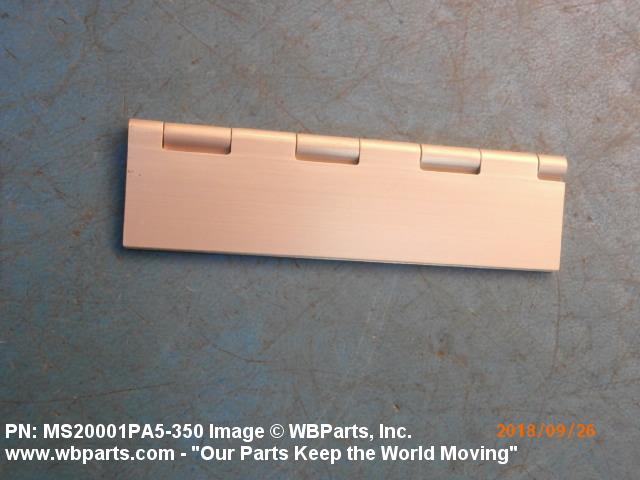

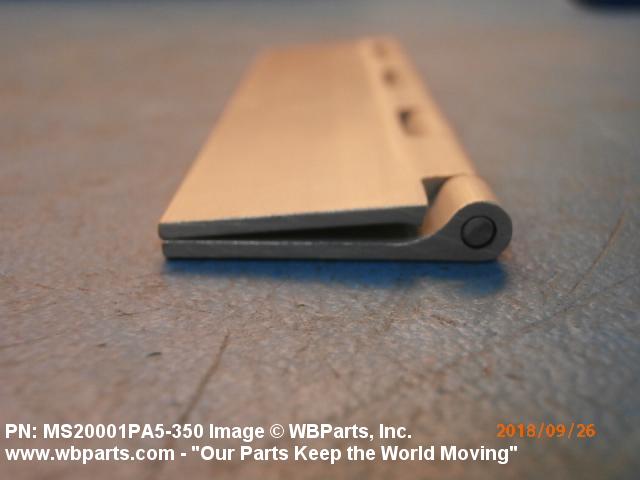

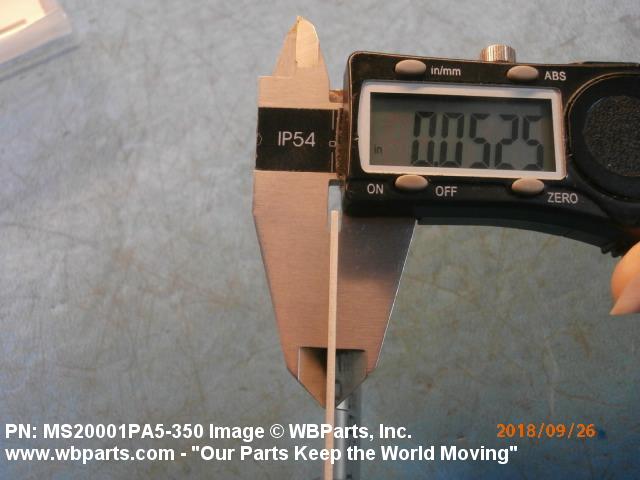

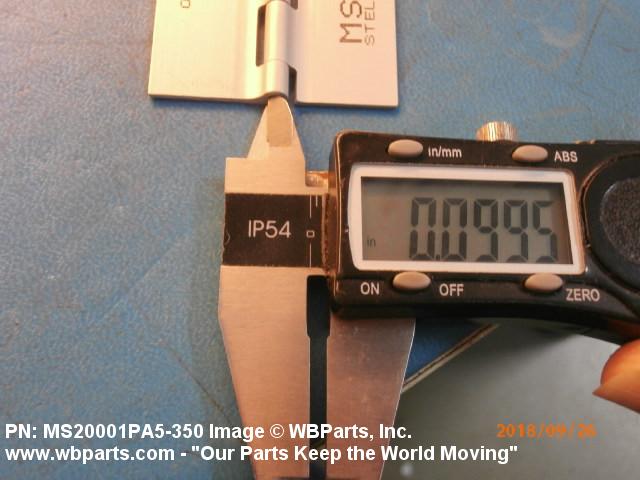

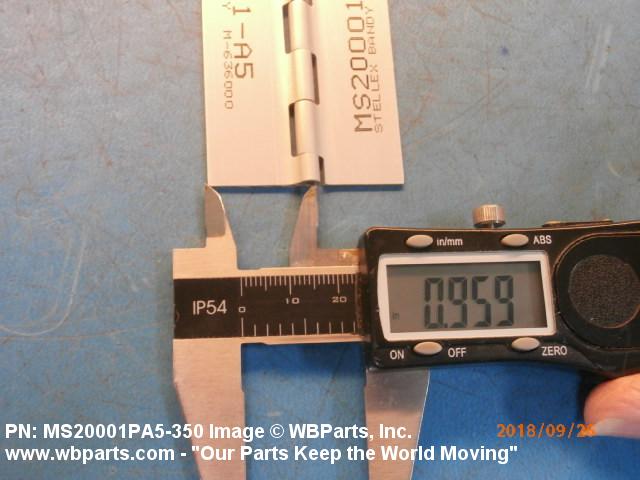

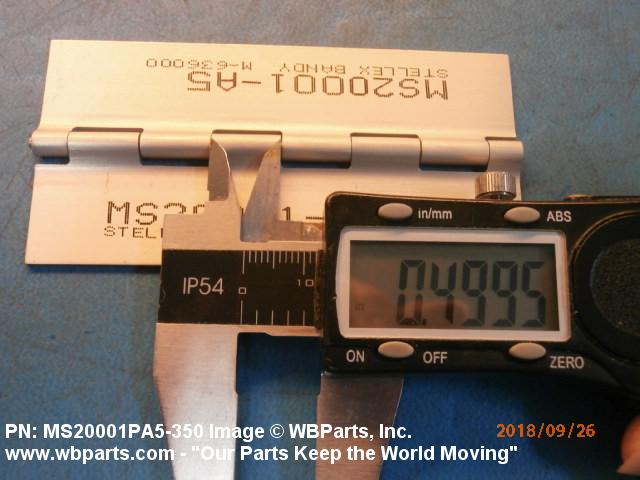

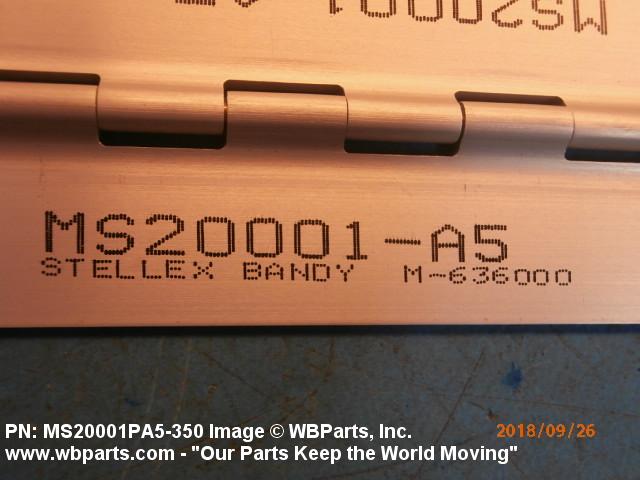

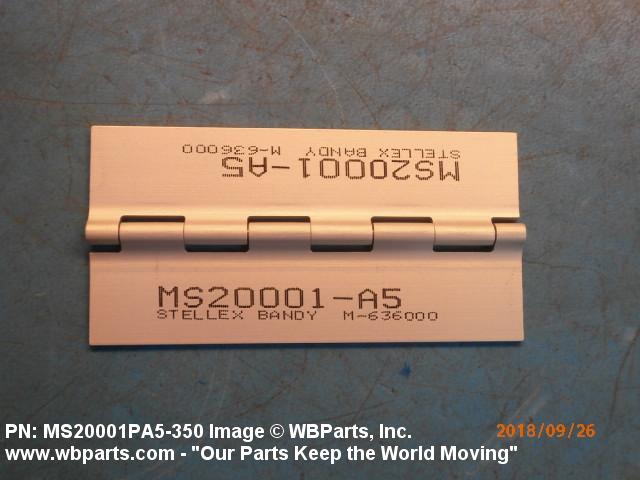

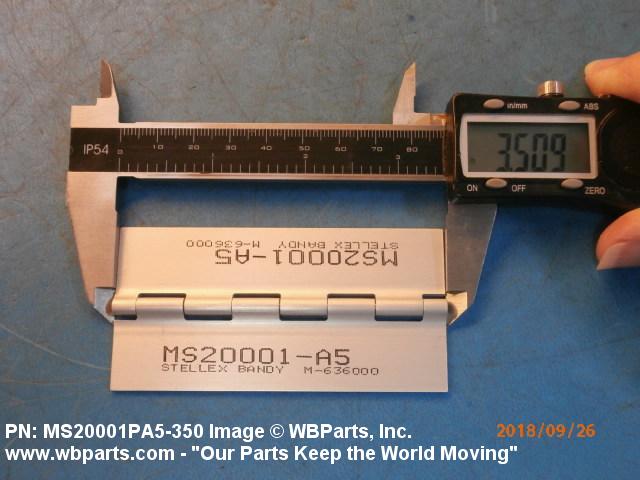

Drawings & Photos | NSN 5340-01-596-8431
Demand History | NSN 5340-01-596-8431
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20001PA5350 | 2018-08-226 | 2 | Oman |
Cross Reference | NSN 5340-01-596-8431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20001PA5-350 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
