Product Details | INSTRUMENT MOUNTING CLAMP

5340-01-542-2167 A clamp specifically designed to hold a dial instrument in position in the cutout of an instrument panel, or the like. It incorporates an adjusting mechanism that permits installation and removal of the instrument from the front of the panel while the clamp remains secured to the back of the panel.

Part Alternates: 64293, 5340-01-542-2167, 01-542-2167, 5340015422167, 015422167

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 26 JUL 2006 01-542-2167

Drawings & Photos | NSN 5340-01-542-2167


Cross Reference | NSN 5340-01-542-2167

Part Number Cage Code Manufacturer
64293 91893 MSP AVIATION, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-542-2167

Technical Data | NSN 5340-01-542-2167

Characteristic Specifications

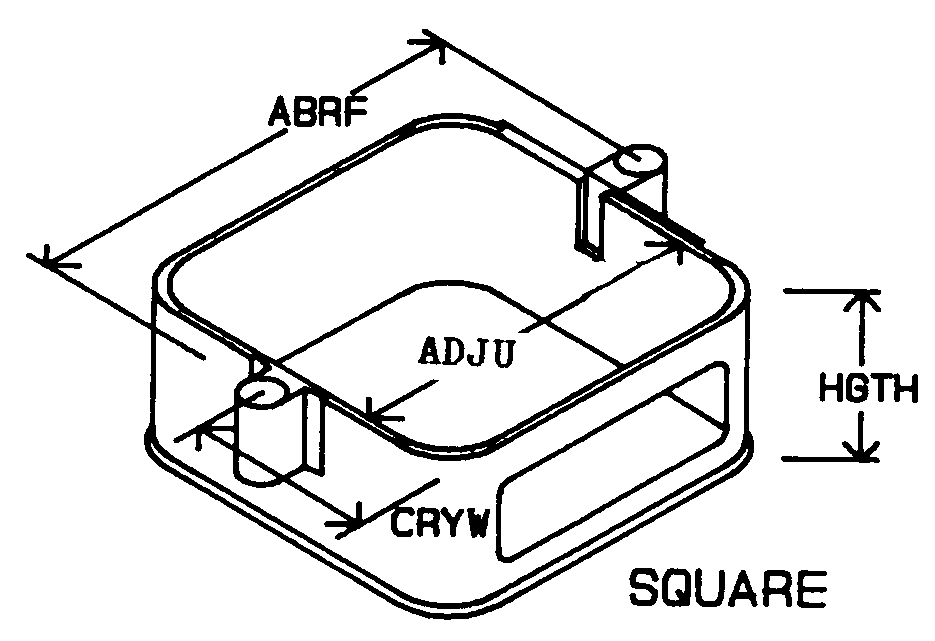

STYLE DESIGNATOR B4 SQUARE
CENTER TO CENTER DISTANCE BETWEEN HOLES 0.242 INCHES NOMINAL
INSIDE LENGTH 2.250 INCHES NOMINAL
DISTANCE FROM MOUNTING HOLE CENTER TO END 1.125 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5340-01-542-2167

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
