NSN 5340-01-393-0654 1233232F, 123-3232-F, 01-393-0654
Product Details | INSTRUMENT MOUNTING CLAMP
5340-01-393-0654 A clamp specifically designed to hold a dial instrument in position in the cutout of an instrument panel, or the like. It incorporates an adjusting mechanism that permits installation and removal of the instrument from the front of the panel while the clamp remains secured to the back of the panel.
Part Alternates: 1233232F, 123-3232-F, 5340-01-393-0654, 01-393-0654, 5340013930654, 013930654
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1994 | 01-393-0654 | 20996 ( CLAMP, INSTRUMENT MOUNTING ) |

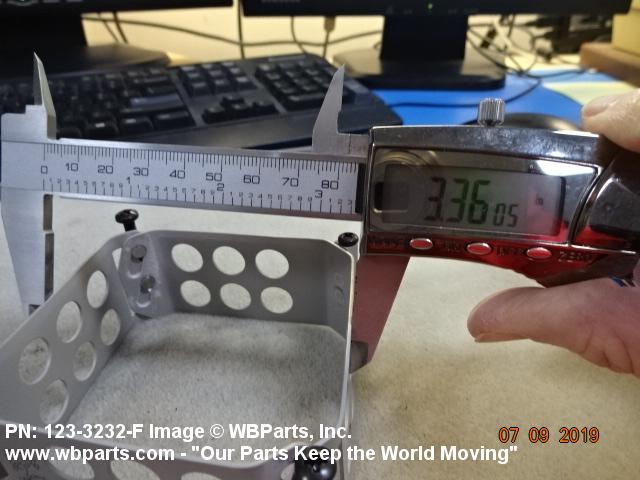

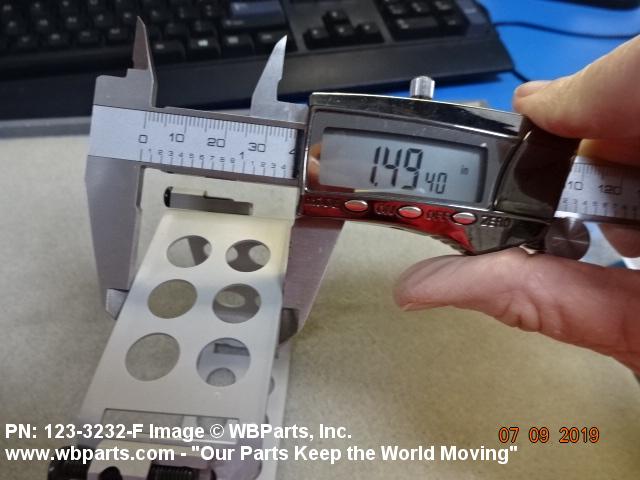

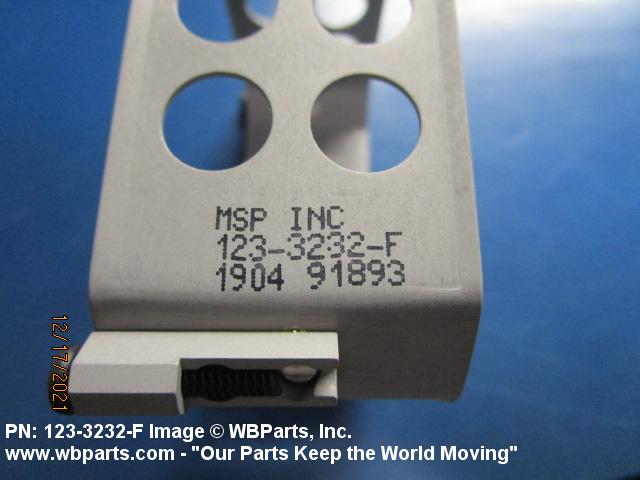

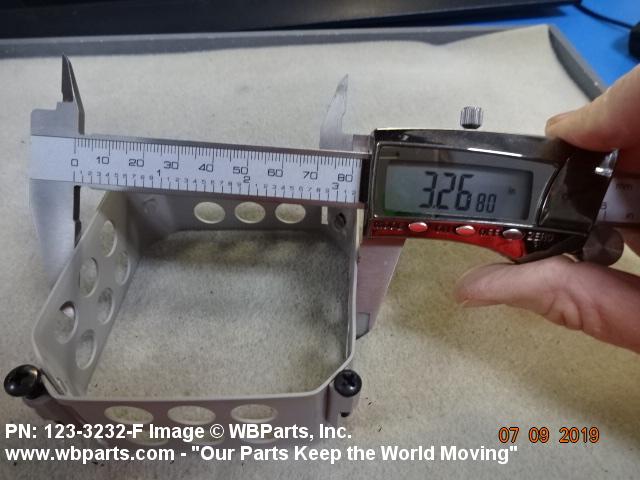

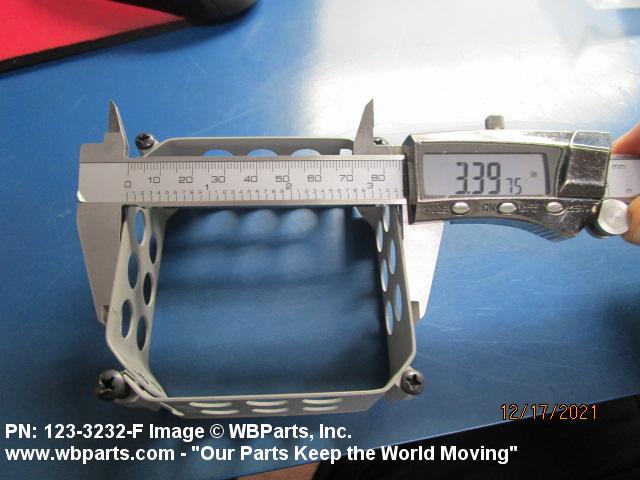

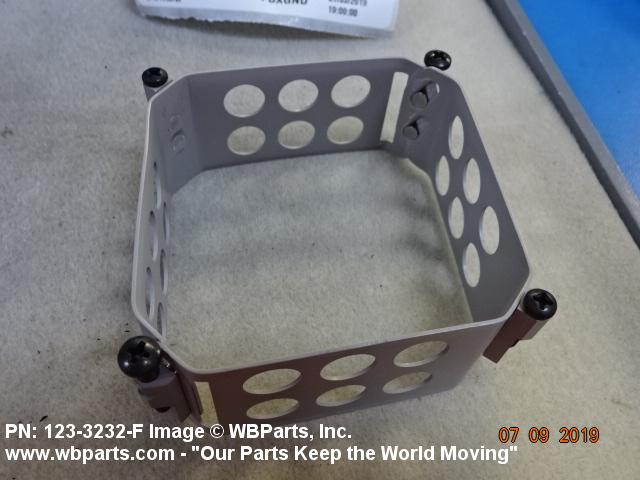

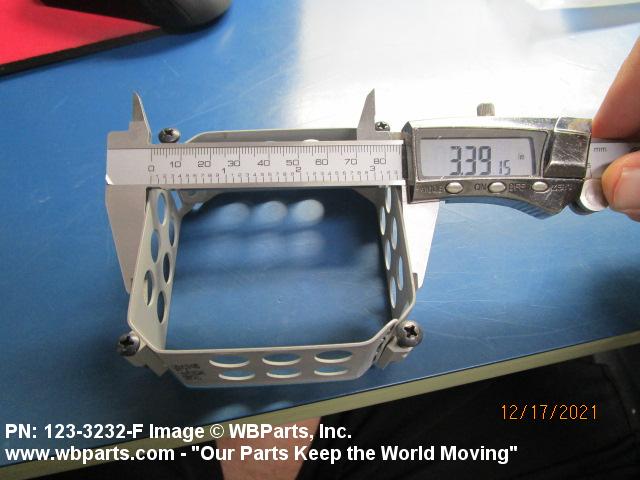

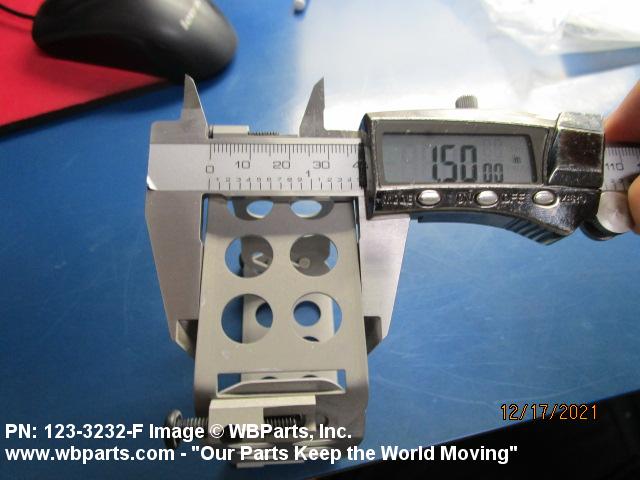

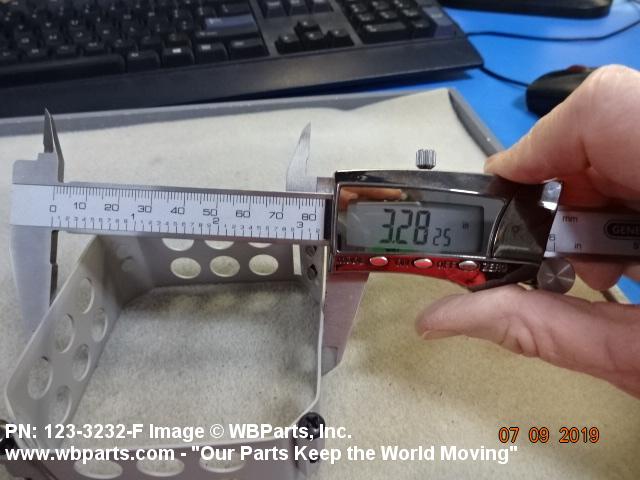

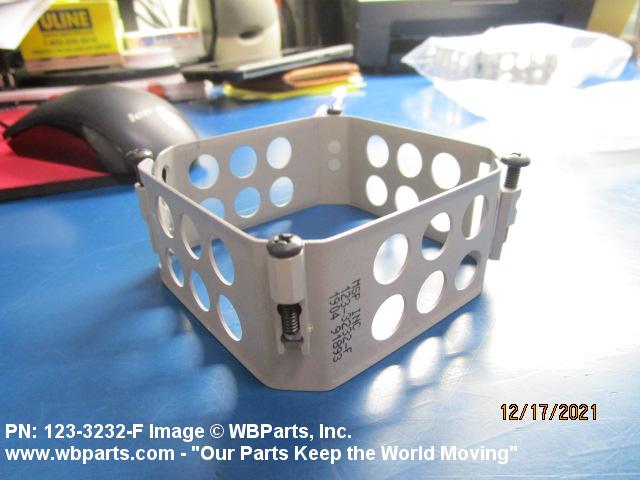

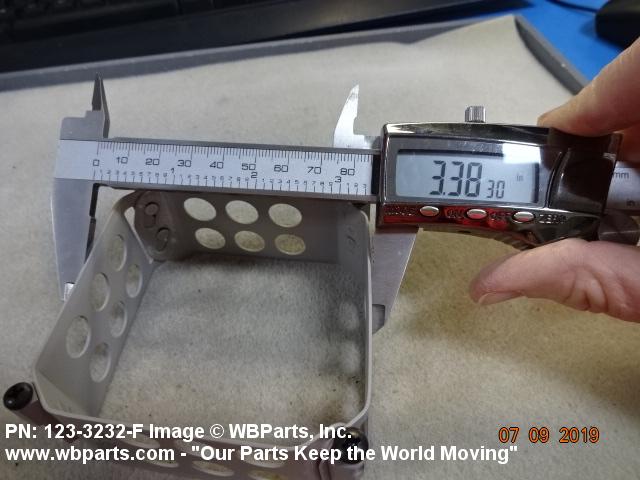

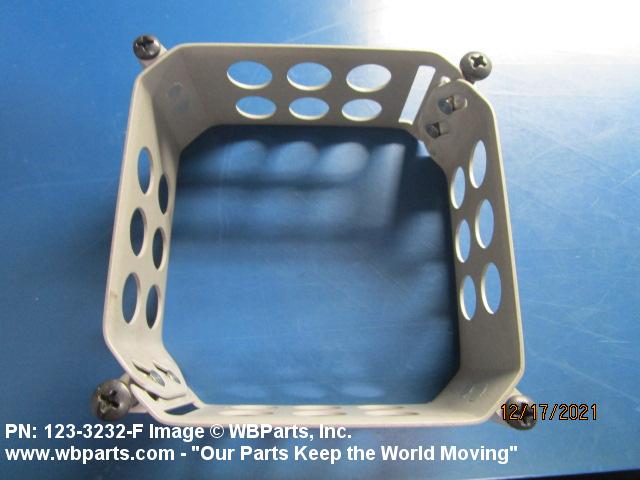

Drawings & Photos | NSN 5340-01-393-0654
Demand History | NSN 5340-01-393-0654
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-393-0654 | 2021-06-175 | 50 | Russian Federation |
| 1233232F | 2021-01-07 | 1 | UK |
| 123-3232-F | 2020-11-317 | 12 | DIBBS |
| 123-3232-F | 2020-10-281 | 12 | DIBBS |
| 1233232F | 2020-08-220 | 1 | RU |
| 123-3232-F | 2020-07-195 | 11 | DIBBS |
| 1233232F | 2019-06-168 | 2 | United States |
| 123-3232-F | 2019-04-94 | 1 | DIBBS |
| 123-3232-F | 2019-03-90 | 11 | DIBBS |
| 123-3232-F | 2019-03-71 | 1 | DIBBS |
| 5340-01-393-0654 | 2018-08-241 | 1 | DIBBS |
| 5340-01-393-0654 | 2018-05-144 | 1 | DIBBS |
| 5340-01-393-0654 | 2017-03-61 | 6 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-393-0654
Technical Data | NSN 5340-01-393-0654
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| STYLE DESIGNATOR | B6 SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 3.885 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 3.885 INCHES NOMINAL |
| INSIDE LENGTH | 3.175 INCHES NOMINAL |
| HEIGHT | 1.500 INCHES NOMINAL |
| SPECIAL FEATURES | 2JACKING SCREW SIZE 8-32 AND 2 MOUNTING SCREW SIZE 6-32 |
Restrictions/Controls & Freight Information | NSN 5340-01-393-0654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 63 | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
