NSN 5340-01-476-2396 MS20001107200, MS20001-10-7200, 01-476-2396
Product Details | BUTT HINGE
5340-01-476-2396 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: MS20001107200, MS20001-10-7200, 5340-01-476-2396, 01-476-2396, 5340014762396, 014762396
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUL 2000 | 01-476-2396 | 22894 ( HINGE, BUTT ) |
Drawings & Photos | NSN 5340-01-476-2396
Demand History | NSN 5340-01-476-2396
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-476-2396 | 2024-08-234 | 1 | US |
| MS20001107200 | 2019-04-106 | 2 | US |
| MS20001107200 | 2018-10-298 | 1 | United States |
| MS20001-10-7200 | 2014-06-157 | 50 | United States |
| MS20001107200 | 2009-07-196 | 250 | United States |
Cross Reference | NSN 5340-01-476-2396
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20001-10-7200 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-476-2396
Technical Data | NSN 5340-01-476-2396
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-200/3, ALLOY 2024, T3511 OVERALL |
| STYLE DESIGNATOR | 18 BUTT |

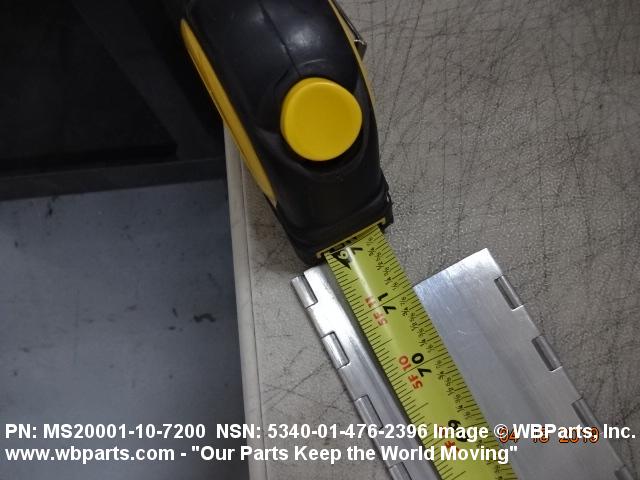

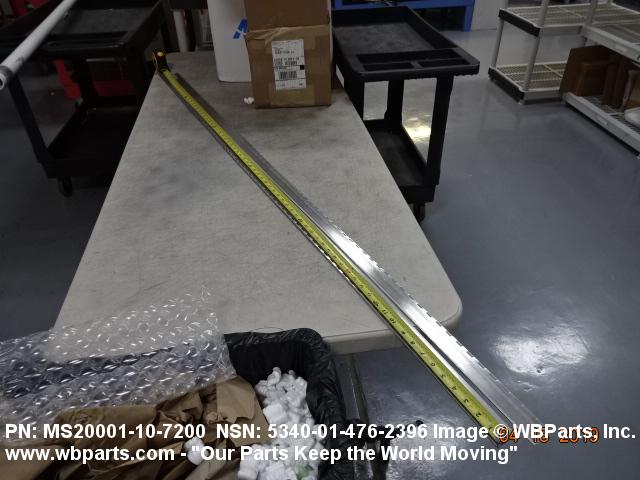

| OVERALL LENGTH | 72.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.044 INCHES MINIMUM AND 0.056 INCHES MAXIMUM |

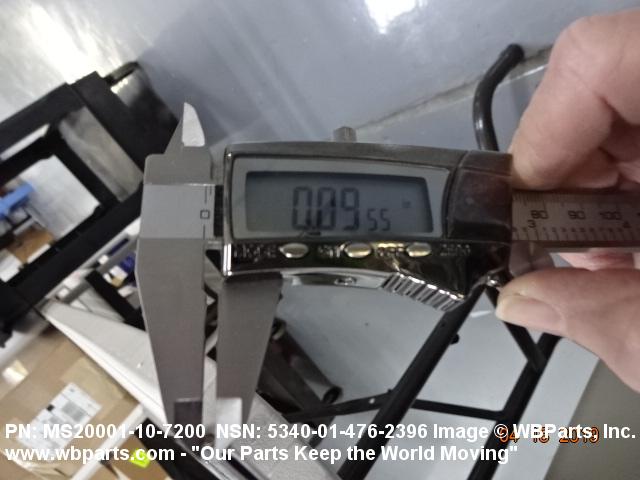

| PIN DIAMETER | 0.090 INCHES NOMINAL |

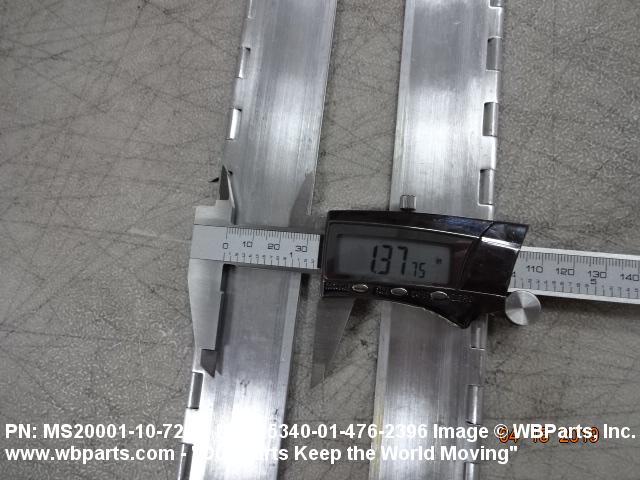

| PIN CENTER TO BODY EDGE DISTANCE | 1.375 INCHES NOMINAL |
| HINGE MOUNTING TYPE | FULL SURFACE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | REMOVABLE |
| RISING PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | ANY ACCEPTABLE |
| PERFORMANCE TYPE | NOT RATED |
| TEST DATA DOCUMENT | 96906-MS20001 STANDARD |
| SPECIFICATION/STANDARD DATA | 96906-MS20001-10 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20001-10-7200 |
Restrictions/Controls & Freight Information | NSN 5340-01-476-2396
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
