NSN 5340-01-467-1942 64621B105, 64621B-105, 01-467-1942
Product Details | INSTRUMENT MOUNTING CLAMP
5340-01-467-1942 A clamp specifically designed to hold a dial instrument in position in the cutout of an instrument panel, or the like. It incorporates an adjusting mechanism that permits installation and removal of the instrument from the front of the panel while the clamp remains secured to the back of the panel.
Part Alternates: 64621B105, 64621B-105, 5340-01-467-1942, 01-467-1942, 5340014671942, 014671942
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 AUG 1999 | 01-467-1942 | 20996 ( CLAMP, INSTRUMENT MOUNTING ) |
Drawings & Photos | NSN 5340-01-467-1942
Demand History | NSN 5340-01-467-1942
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-467-1942 | 2011-10-07 | 4 | CA |
Cross Reference | NSN 5340-01-467-1942
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 64621B-105 | 91893 | MSP AVIATION, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-467-1942
Technical Data | NSN 5340-01-467-1942
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/8-T6 MIL SPEC ALL MATERIAL RESPONSES |

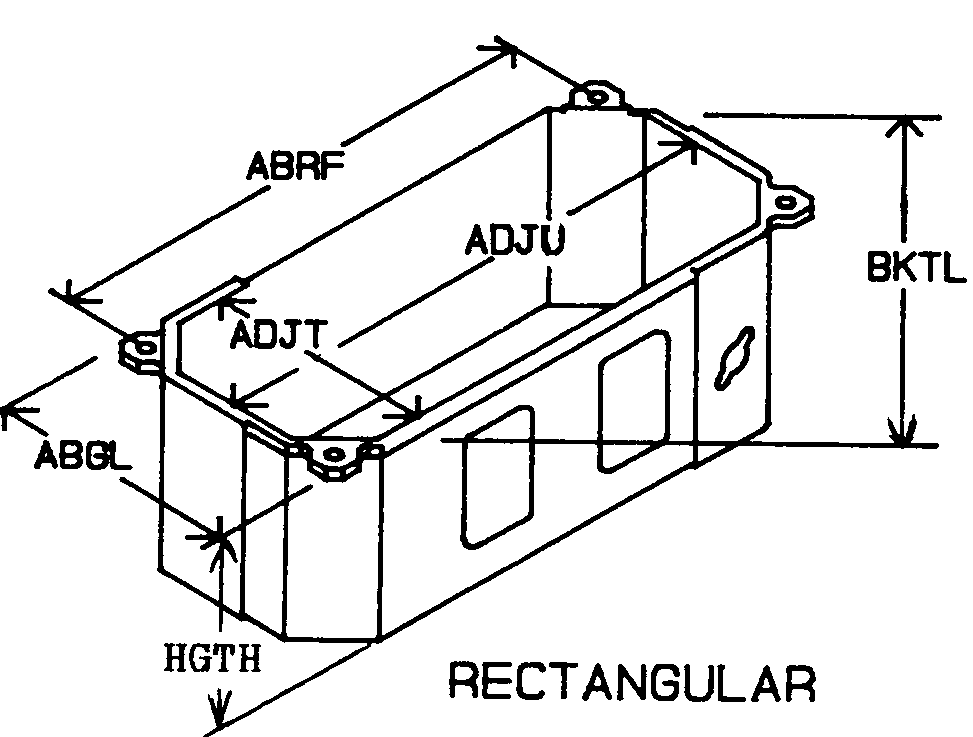

| STYLE DESIGNATOR | B1 RECTANGULAR |
| WIDTH | 0.160 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 7.000 INCHES NOMINAL |
| FURNISHED ITEMS | SCREW |
Restrictions/Controls & Freight Information | NSN 5340-01-467-1942
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
