NSN 5340-01-417-1702 SCBS819, SCBS-8-19, SCBS8R
Product Details | SNAP-IN THREADED STANDOFF
5340-01-417-1702 A standoff with one threaded end and projection on the other end which can be snapped, press fitted or locked into position.
Part Alternates: SCBS819, SCBS-8-19, SCBS8R, SCBS-8R, 5340-01-417-1702, 01-417-1702, 5340014171702, 014171702
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 AUG 1995 | 01-417-1702 | 40279 ( STANDOFF, THREADED, SNAP-IN ) |

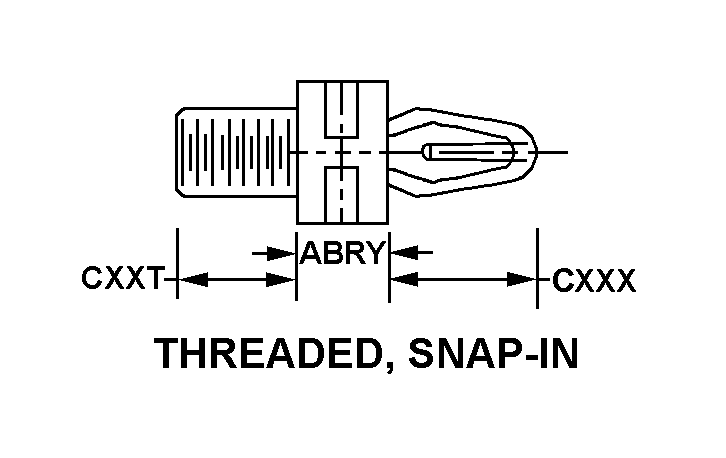

Drawings & Photos | NSN 5340-01-417-1702
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-417-1702
Technical Data | NSN 5340-01-417-1702
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE ADIPAMIDE OVERALL |
| STYLE DESIGNATOR | 41 THREADED, SNAP-IN |
| LENGTH | 12.7 MILLIMETERS NOMINAL |
| LEFT PROJECTION LENGTH | 6.4 MILLIMETERS NOMINAL |
| RIGHT PROJECTION LENGTH | 10.2 MILLIMETERS NOMINAL |
| THREAD SERIES DESIGNATOR | UNC LEFT EXTERNAL |
| NOMINAL THREAD SIZE | 0.164 INCHES LEFT EXTERNAL |
| THREAD QUANTITY PER INCH | 32 LEFT EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND LEFT EXTERNAL |
Restrictions/Controls & Freight Information | NSN 5340-01-417-1702
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
