Product Details | SNAP-IN THREADED STANDOFF

5340-01-468-5101 A standoff with one threaded end and projection on the other end which can be snapped, press fitted or locked into position.

Part Alternates: FDC2650M517, FDC2650M5-17, 5340-01-468-5101, 01-468-5101, 5340014685101, 014685101

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 13 OCT 1999 01-468-5101

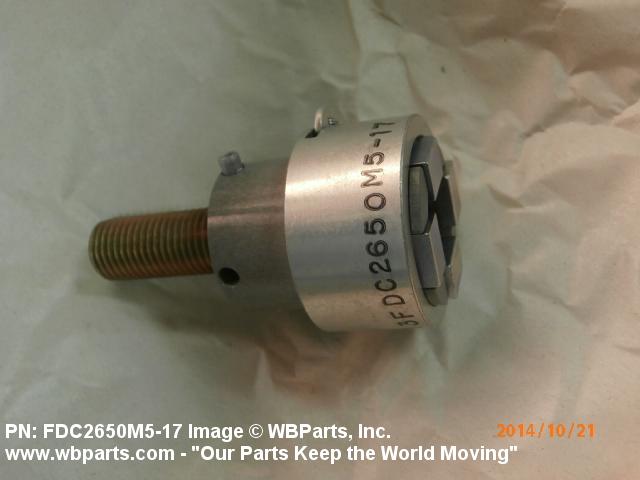

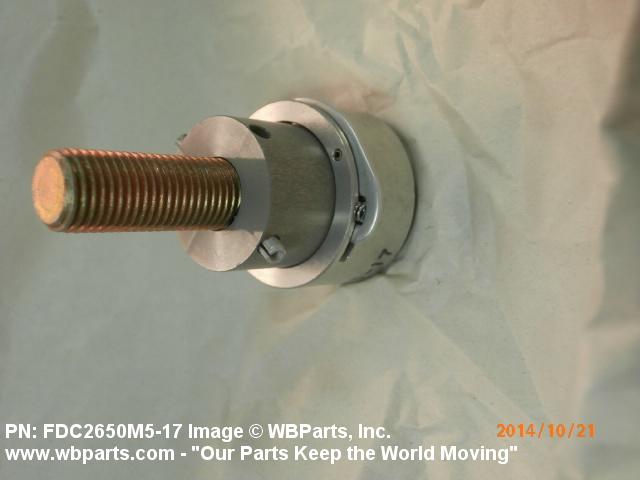

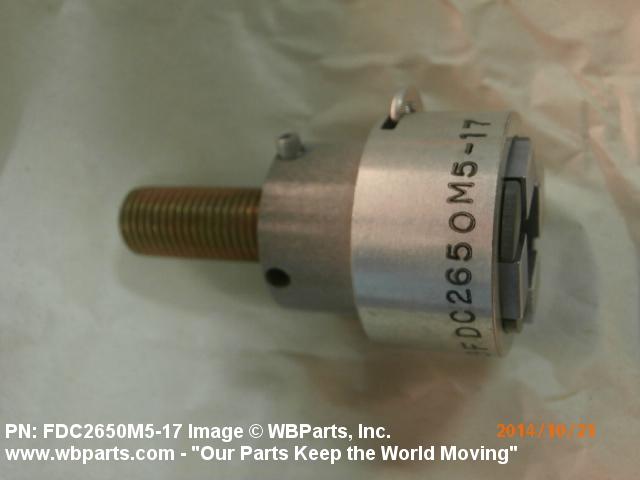

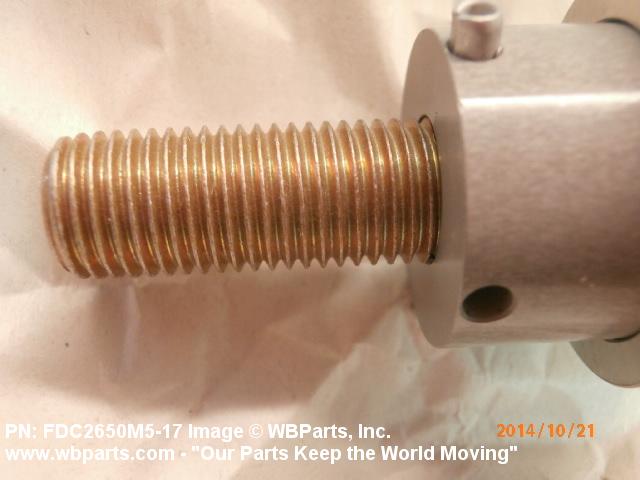

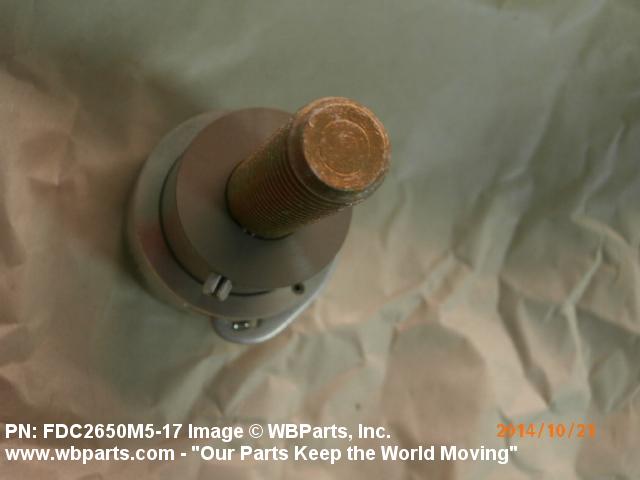

Drawings & Photos | NSN 5340-01-468-5101


Demand History | NSN 5340-01-468-5101

Part Number Request Date QTY Origin
5340-01-468-5101 2014-07-205 10 Canada

Cross Reference | NSN 5340-01-468-5101

Part Number Cage Code Manufacturer
FDC2650M5-17 98313 DAVIS AIRCRAFT PRODUCTS CO., INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-468-5101

Technical Data | NSN 5340-01-468-5101

Characteristic Specifications
THREAD SERIES DESIGNATOR UNF RIGHT EXTERNAL

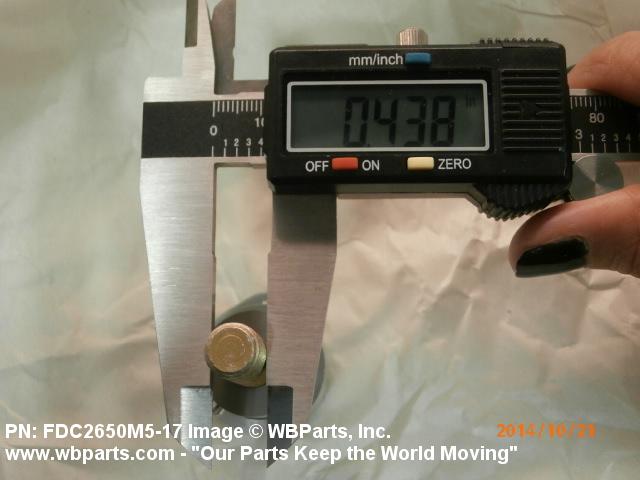

NOMINAL THREAD SIZE 0.438 INCHES RIGHT EXTERNAL
THREAD QUANTITY PER INCH 20 RIGHT EXTERNAL
THREAD CLASS 2A RIGHT EXTERNAL
THREAD DIRECTION RIGHT-HAND RIGHT EXTERNAL

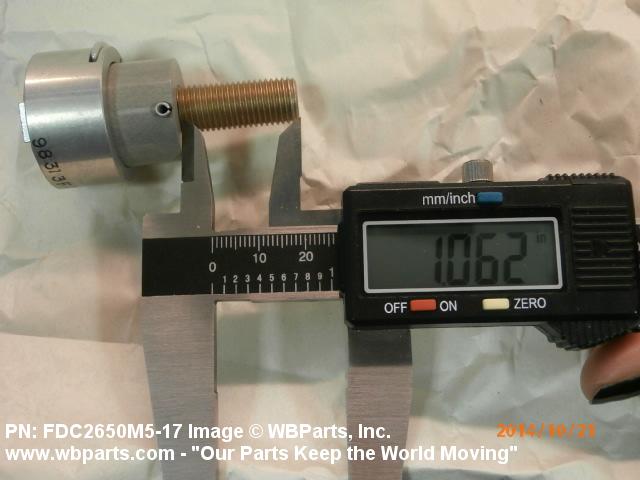

THREAD LENGTH 1.062 INCHES NOMINAL RIGHT EXTERNAL

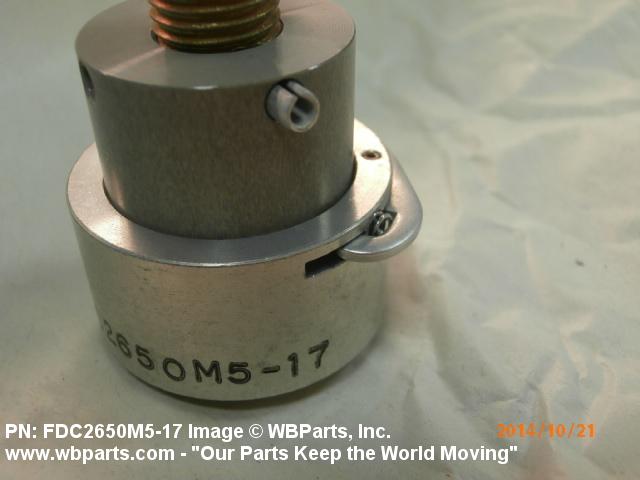

SPECIAL FEATURES SNAP-IN END HAS INTERNAL JAWS DESIGNED TO LOCK ONTO FLOOR STUD AND CAN BE RELEASED BY A LOCK MECHANISM ON THESIDE OF THE COLLAR; MANUFACTURER'S NAME: THREADED FLOOR STUD OR ADAPTER, QUICK DISCONNECT, PASSENGER SEAT TO FLOOR
III END ITEM IDENTIFICATION HELICOPTER, EH101

Restrictions/Controls & Freight Information | NSN 5340-01-468-5101

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
