NSN 5340-01-346-7932 MS20257H2300, MS20257H2-300, MS20257H27200
Product Details | BUTT HINGE LEAF

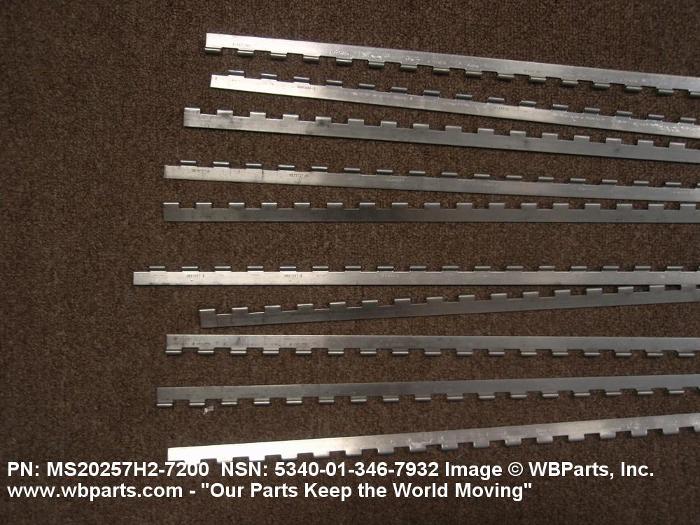

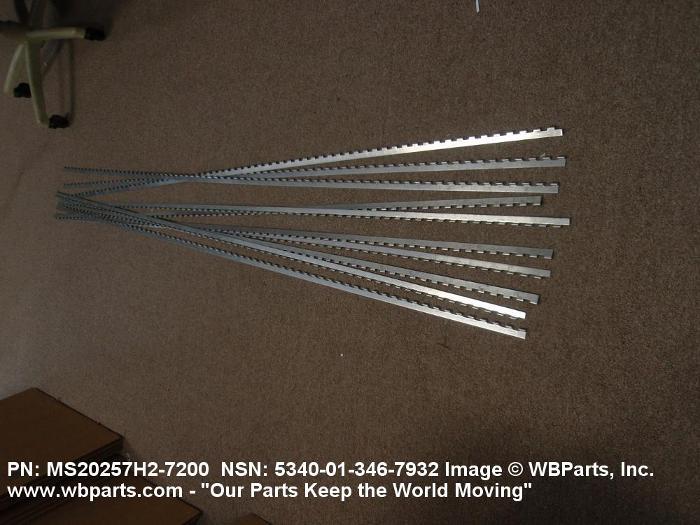

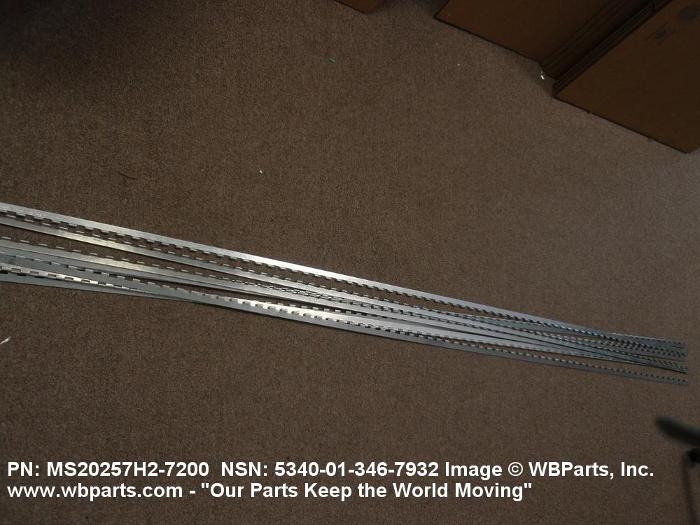

5340-01-346-7932 An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin.
Part Alternates: MS20257H2300, MS20257H2-300, MS20257H27200, MS20257H2-7200, 5340-01-346-7932, 01-346-7932, 5340013467932, 013467932
Hardware and Abrasives | Hardware, Commercial
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 10 OCT 1991 | 01-346-7932 | 07655 ( LEAF, BUTT HINGE ) |
Demand History | NSN 5340-01-346-7932
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5340-01-346-7932 | 2021-07-186 | 31 | DIBBS |
5340-01-346-7932 | 2017-11-306 | 83 | DIBBS |
5340-01-346-7932 | 2017-08-239 | 36 | DIBBS |
MS20257H2300 | 2011-02-53 | 10 | United States |
5340-01-346-7932 | 2010-08-235 | 11 | DIBBS |
5340-01-346-7932 | 2010-05-132 | 11 | DIBBS |
5340-01-346-7932 | 2009-08-233 | 11 | DIBBS |
5340-01-346-7932 | 2009-06-164 | 1 | DIBBS |
5340-01-346-7932 | 2008-12-342 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-346-7932
Related Products | NSN 5340-01-346-7932
Technical Data | NSN 5340-01-346-7932
Characteristic | Specifications |
---|---|
MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-250/8, ALLOY 5052, H24 OVERALL OR ALUMINUM ALLOY, QQ-A-250/8, ALLOY 5052, H32 OVERALL |
SURFACE TREATMENT AND LOCATION | ANODIZED, MIL-A-8625, TYPE 2 OVERALL |
STYLE DESIGNATOR | 48 BUTT BLANK |
OVERALL LENGTH | 72.000 INCHES NOMINAL |
MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
KNUCKLE LENGTH | 0.482 INCHES MINIMUM AND 0.491 INCHES MAXIMUM |
PIN CENTER TO BODY EDGE DISTANCE | 0.523 INCHES MINIMUM AND 0.539 INCHES MAXIMUM |
KNUCKLE INSIDE DIAMETER | 0.090 INCHES NOMINAL |
HINGE MOUNTING TYPE | HALF SURFACE |
REVERSIBLE FEATURE | NOT INCLUDED |
HINGE PIN | NOT INCLUDED |
KNUCKLE TYPE | FRICTION |
KNUCKLE QUANTITY | 36 |
PERFORMANCE TYPE | NOT RATED |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20257H2-7200 |
