NSN 5340-00-601-1180 344121L, 00-601-1180, 006011180
Product Details | BUTT HINGE LEAF
5340-00-601-1180 An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin.
Part Alternates: 344121L, 5340-00-601-1180, 00-601-1180, 5340006011180, 006011180
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-601-1180 | 07655 ( LEAF, BUTT HINGE ) |

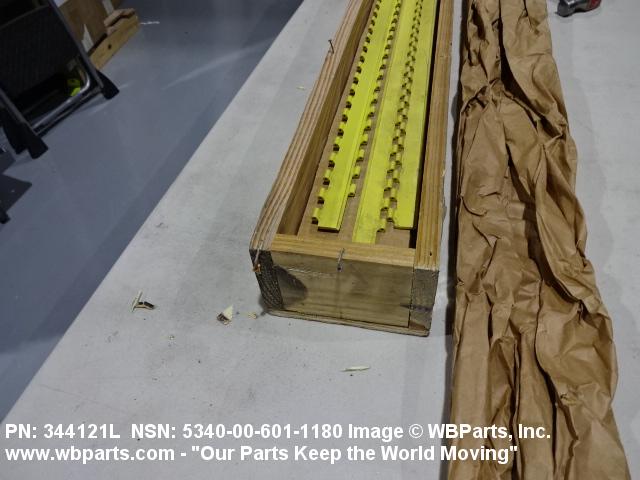

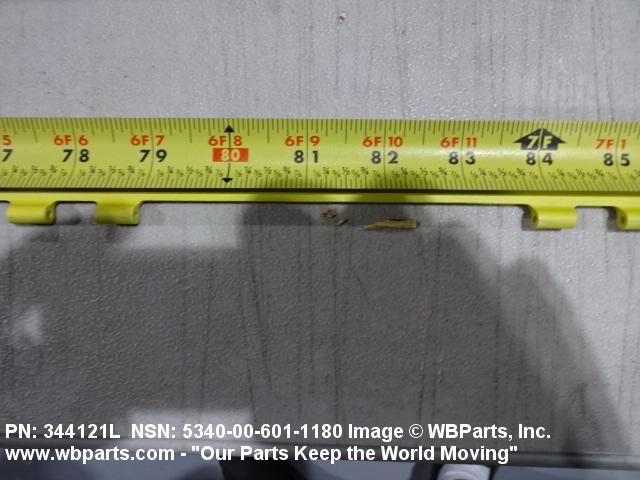

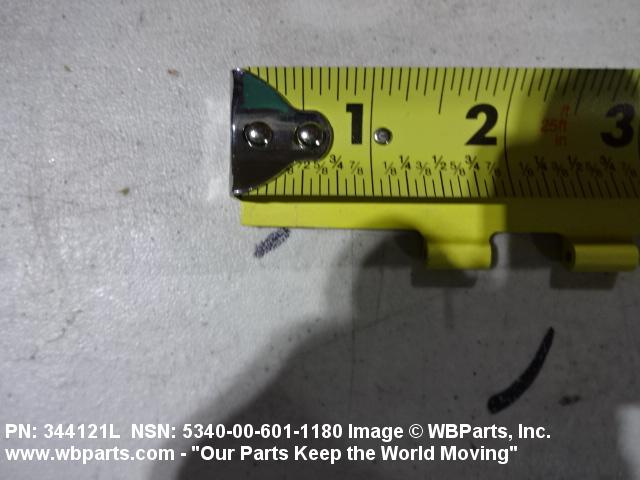

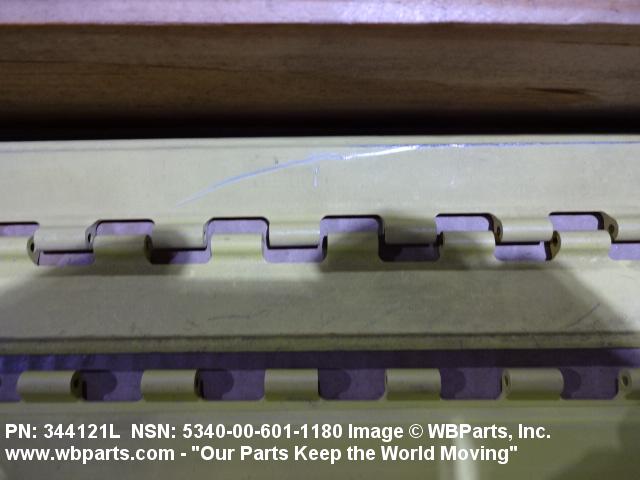

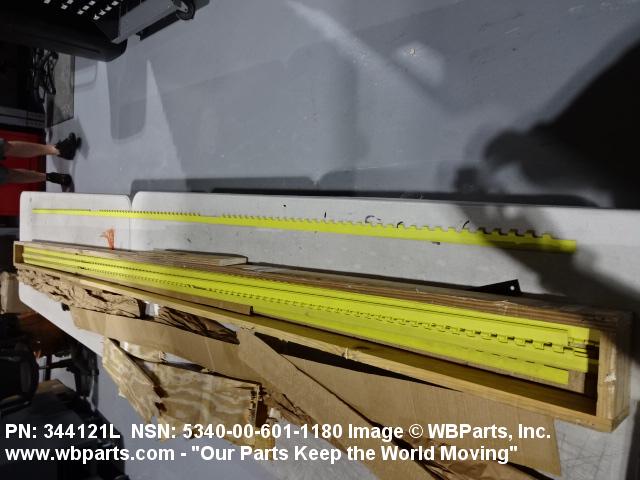

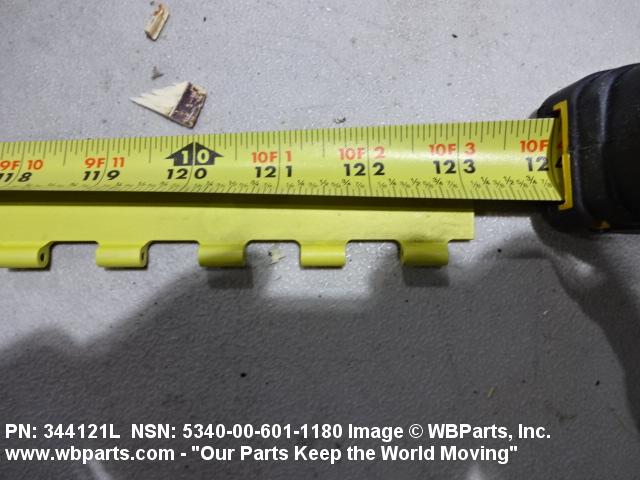

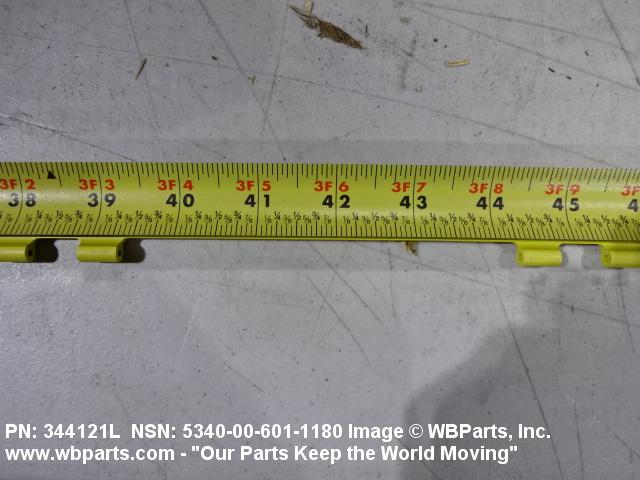

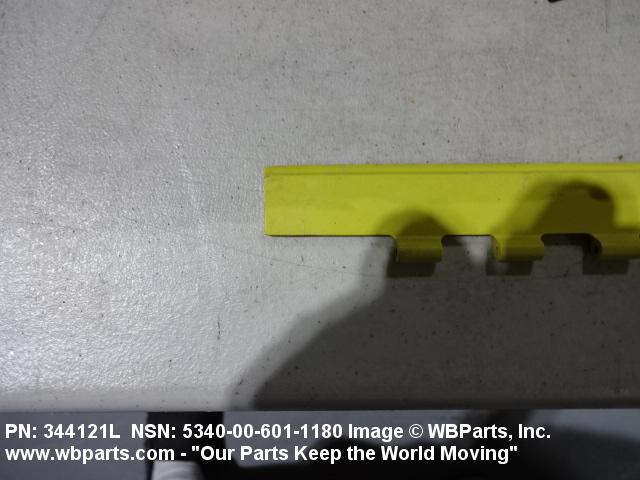

Drawings & Photos | NSN 5340-00-601-1180
Demand History | NSN 5340-00-601-1180
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 344121L | 2019-08-237 | 18 | DIBBS |
| 5340-00-601-1180 | 2019-04-91 | 1 | US |
| 5340-00-601-1180 | 2018-04-110 | 16 | United States |
| 5340-00-601-1180 | 2018-02-37 | 16 | DIBBS |
| 5340-00-601-1180 | 2015-06-155 | 8 | DIBBS |
| 5340-00-601-1180 | 2015-02-34 | 6 | DIBBS |
| 5340-00-601-1180 | 2014-05-141 | 6 | DIBBS |
| 5340-00-601-1180 | 2014-04-120 | 6 | DIBBS |
| 5340-00-601-1180 | 2013-03-60 | 1 | DIBBS |
| 5340-00-601-1180 | 2012-10-296 | 3 | DIBBS |
| 5340-00-601-1180 | 2011-12-346 | 15 | DIBBS |
| 5340-00-601-1180 | 2009-01-23 | 15 | DIBBS |
Cross Reference | NSN 5340-00-601-1180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 344121L | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-601-1180
Related Products | NSN 5340-00-601-1180
Technical Data | NSN 5340-00-601-1180
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |

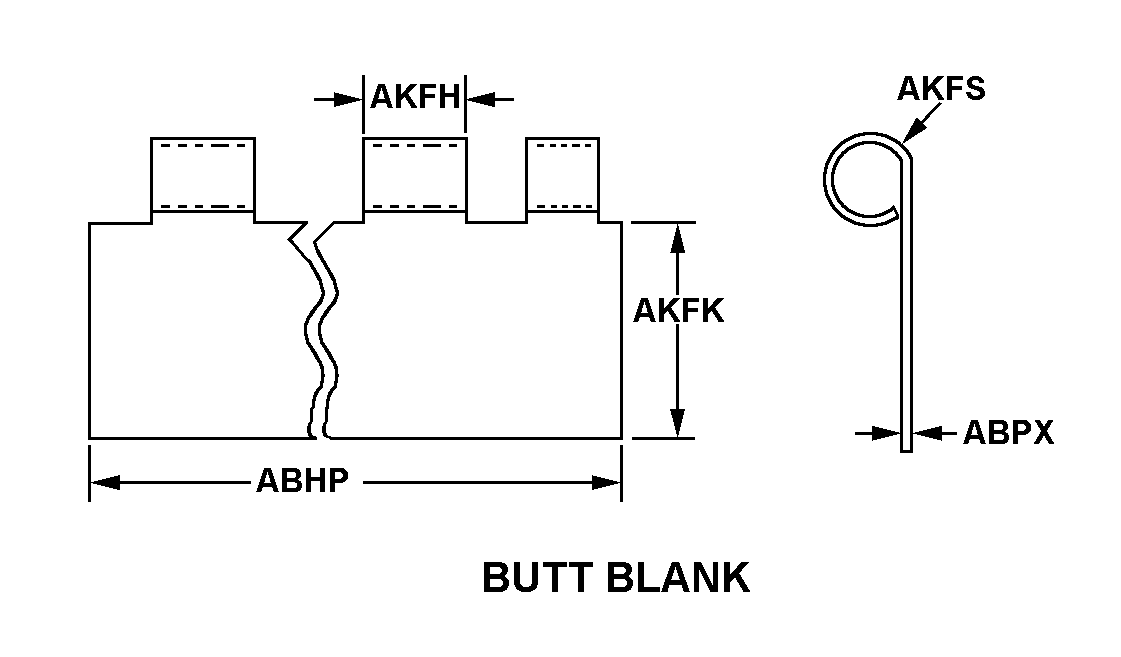

| STYLE DESIGNATOR | 51 BUTT BLANK |
