NSN 5340-01-262-6633 LS35064A2C075, LS35064A2C-075, 00289449
Product Details | SPACING THREADED STANDOFF
5340-01-262-6633 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: LS35064A2C075, LS35064A2C-075, 00289449, 002894-49 , 5340-01-262-6633, 01-262-6633, 5340012626633, 012626633
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 SEP 1987 | 01-262-6633 | 40280 ( STANDOFF, THREADED, SPACING ) |

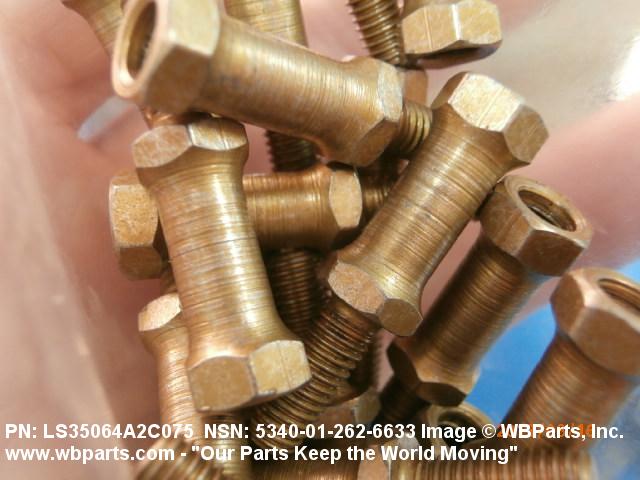

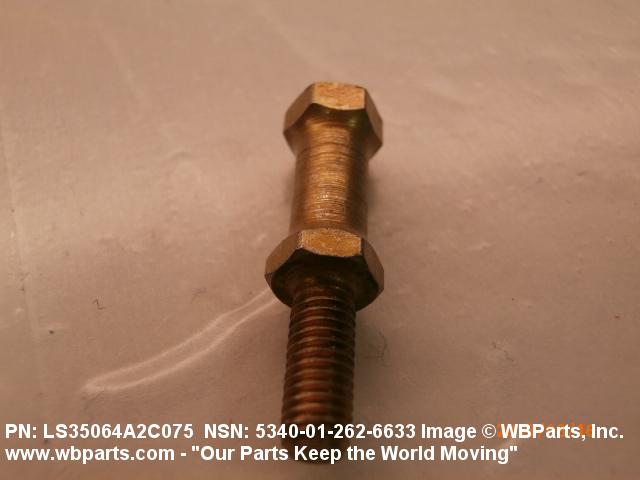

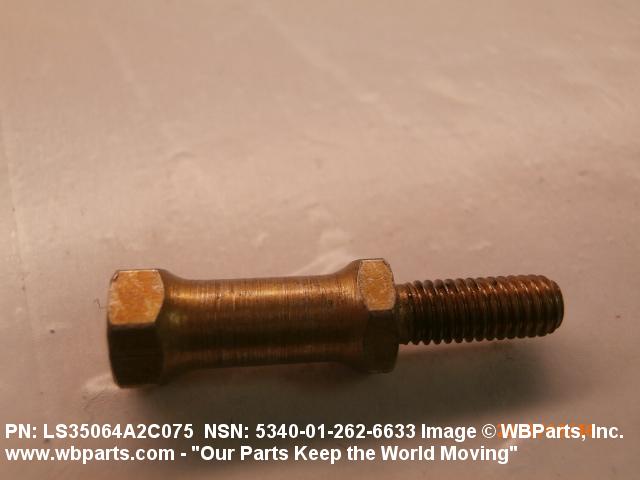

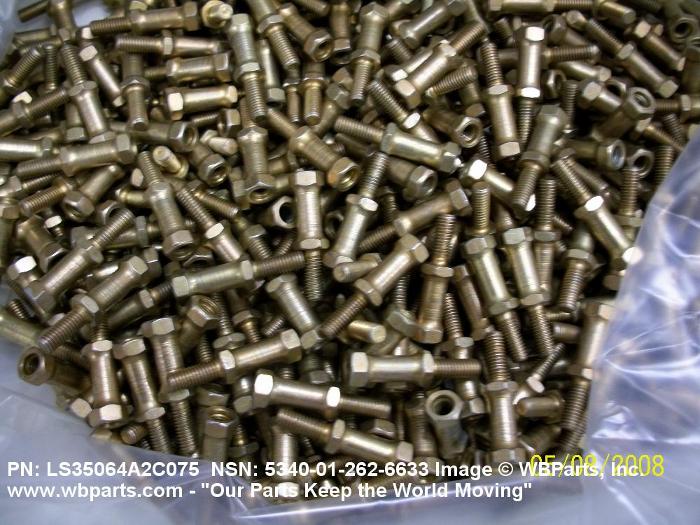

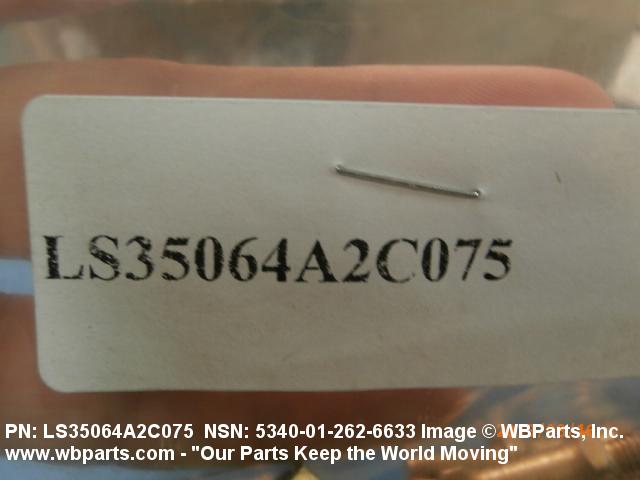

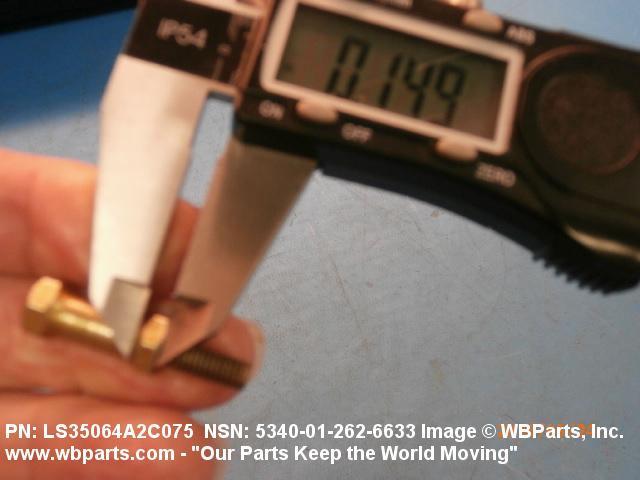

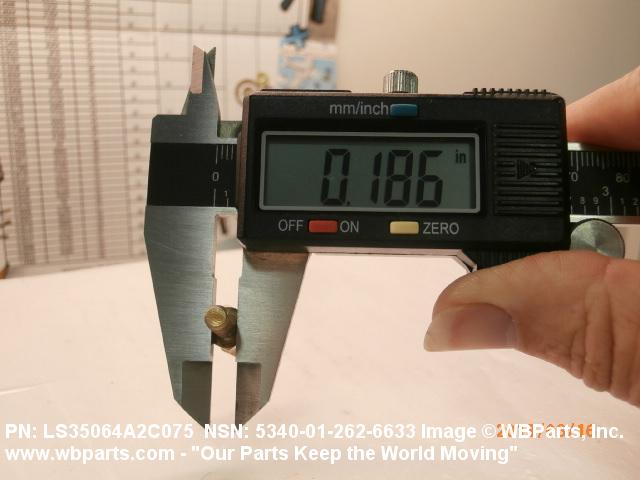

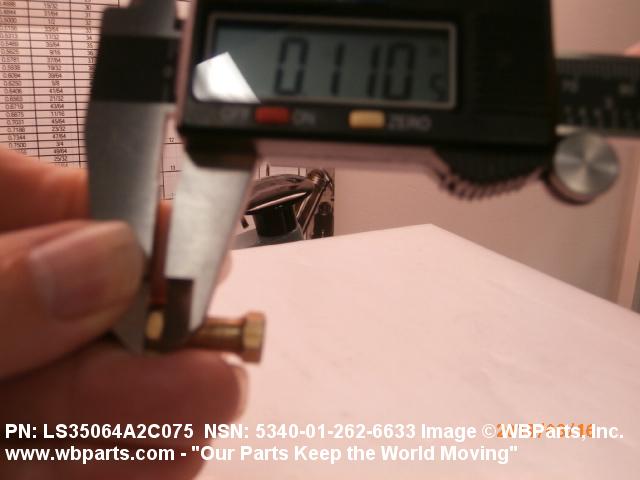

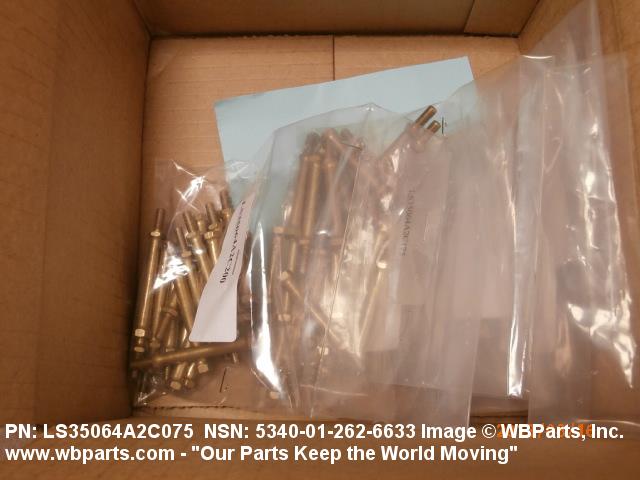

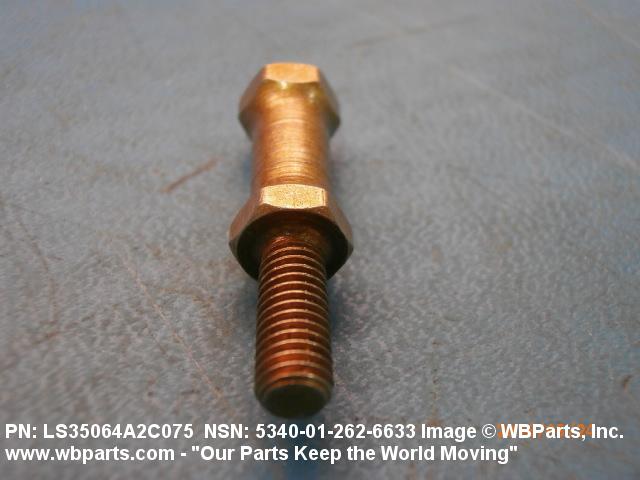

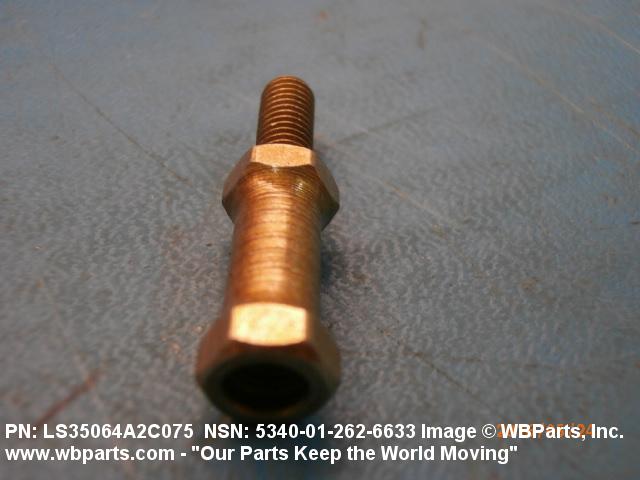

Drawings & Photos | NSN 5340-01-262-6633
Demand History | NSN 5340-01-262-6633
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-262-6633 | 2024-08-225 | 15 | United States |
| 5340-01-262-6633 | 2024-02-40 | 30 | US |
| LS35064A2C075 | 2023-08-230 | 474 | United States |
| LS35064A2C075 | 2023-03-72 | 1920 | United States |
| 5340-01-262-6633 | 2022-12-353 | 22 | US |
| 5340-01-262-6633 | 2022-09-257 | 200 | Malaysia |
| 5340-01-262-6633 | 2022-09-255 | 200 | Malaysia |
| LS35064A2C075 | 2022-02-41 | 610 | Taiwan |
| 5340-01-262-6633 | 2021-11-307 | 165 | MY |
| LS35064A2C075 | 2021-09-273 | 165 | Malaysia |
| 5340-01-262-6633 | 2020-02-52 | 25 | US |
| 5340-01-262-6633 | 2018-10-295 | 100 | United States |
| LS35064A2C075 | 2018-08-232 | 1650 | us |
| 5340-01-262-6633 | 2018-06-178 | 14242 | DIBBS |
| LS35064A2C075 | 2018-06-155 | 775 | us |
| 5340-01-262-6633 | 2018-05-150 | 26706 | DIBBS |
| LS35064A2C075 | 2018-04-107 | 191 | United States |
| 5340-01-262-6633 | 2018-03-67 | 50000 | DIBBS |
| LS35064A2C075 | 2018-02-54 | 400 | US |
| 5340-01-262-6633 | 2018-02-38 | 8391 | DIBBS |
| LS35064A2C075 | 2017-12-348 | 7 | US |
| 5340-01-262-6633 | 2017-11-306 | 50 | US |
| 5340-01-262-6633 | 2017-10-299 | 4 | United States |
| 5340-01-262-6633 | 2017-08-241 | 2 | United States |
| LS35064A2C075 | 2017-08-223 | 100 | United States |
| LS35064A2C075 | 2017-08-215 | 29 | United States |
| LS35064A2C075 | 2017-07-212 | 29 | US |
| LS35064A2C075 | 2017-07-205 | 100 | United States |
| 5340-01-262-6633 | 2017-07-194 | 66 | United States |
| LS35064A2C075 | 2017-07-184 | 400 | United States |
| 5340-01-262-6633 | 2017-05-141 | 11188 | DIBBS |
| LS35064A2C075 | 2017-04-107 | 750 | United States |
| LS35064A2C075 | 2017-03-69 | 200 | United States |
| LS35064A2C075 | 2017-03-60 | 2700 | United States |
| LS35064A2C075 | 2017-02-33 | 2800 | United States |
| LS35064A2C075 | 2017-01-23 | 525 | United States |
| LS35064A2C075 | 2016-10-279 | 3300 | United States |
| LS35064A2C075 | 2016-10-279 | 3300 | United States |
| 5340-01-262-6633 | 2016-10-279 | 9802 | DIBBS |
| LS35064A2C075 | 2016-05-133 | 400 | United States |
| 5340-01-262-6633 | 2016-05-122 | 2535 | DIBBS |
| LS35064A2C075 | 2015-07-190 | 140 | United States |
| 5340-01-262-6633 | 2015-06-156 | 375 | US |
| 5340-01-262-6633 | 2015-05-147 | 375 | US |
| 5340-01-262-6633 | 2015-05-140 | 10 | United States |
| 5340-01-262-6633 | 2015-05-134 | 25494 | DIBBS |
| LS35064A2C075 | 2015-04-107 | 100 | United States |
| 5340-01-262-6633 | 2015-04-105 | 100 | US |
| LS35064A2C075 | 2015-04-103 | 10 | United States |
| 5340-01-262-6633 | 2015-03-90 | 8688 | DIBBS |
| 5340-01-262-6633 | 2014-09-246 | 15000 | DIBBS |
| 5340-01-262-6633 | 2014-08-225 | 5 | US |
| LS35064A2C075 | 2014-07-189 | 560 | United States |
| 5340-01-262-6633 | 2014-03-69 | 20302 | DIBBS |
| 5340-01-262-6633 | 2013-11-322 | 15000 | DIBBS |
| LS35064A2C075 | 2013-10-290 | 20 | |
| 5340-01-262-6633 | 2013-09-252 | 9828 | DIBBS |
| LS35064A2C075 | 2013-08-224 | 20 | United States |
| LS35064A2C075 | 2013-07-200 | 7 | |
| 5340-01-262-6633 | 2013-07-193 | 15299 | DIBBS |
| 5340-01-262-6633 | 2013-07-192 | 8287 | DIBBS |
| 5340-01-262-6633 | 2013-05-133 | 20 | US |
| LS35064A2C075 | 2012-10-276 | 35 | France |
| 002894-49 | 2012-03-82 | 100 | US |
| LS35064A2C075 | 2012-03-82 | 50 | US |
| 5340-01-262-6633 | 2011-08-243 | 20000 | DIBBS |
| 5340-01-262-6633 | 2011-08-238 | 35000 | DIBBS |
| LS35064A2C075 | 2011-06-181 | 483 | United States |
| LS35064A2C075 | 2011-06-180 | 5 | United States |
| 5340-01-262-6633 | 2011-05-144 | 35000 | DIBBS |
| 5340-01-262-6633 | 2011-02-33 | 20000 | DIBBS |
| 5340-01-262-6633 | 2009-07-212 | 25391 | DIBBS |
| 5340-01-262-6633 | 2009-07-196 | 19798 | DIBBS |
| 5340-01-262-6633 | 2009-06-161 | 14134 | DIBBS |
| 5340-01-262-6633 | 2009-06-152 | 14144 | DIBBS |
| 5340-01-262-6633 | 2009-02-34 | 205 | Singapore |
| LS35064A2C075 | 2009-01-26 | 100 | US |
| 5340-01-262-6633 | 2008-10-296 | 18 | India |
| LS35064A2C075 | 2008-10-288 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-262-6633
Related Products | NSN 5340-01-262-6633
Technical Data | NSN 5340-01-262-6633
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8630 STANDOFF |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE STANDOFF |
| SURFACE TREATMENT | CADMIUM AND CHROMATE STANDOFF |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 2, CL 2 FED SPEC SINGLE TREATMENT RESPONSE STANDOFF |
| CROSS-SECTIONAL SHAPE | HEXAGON |

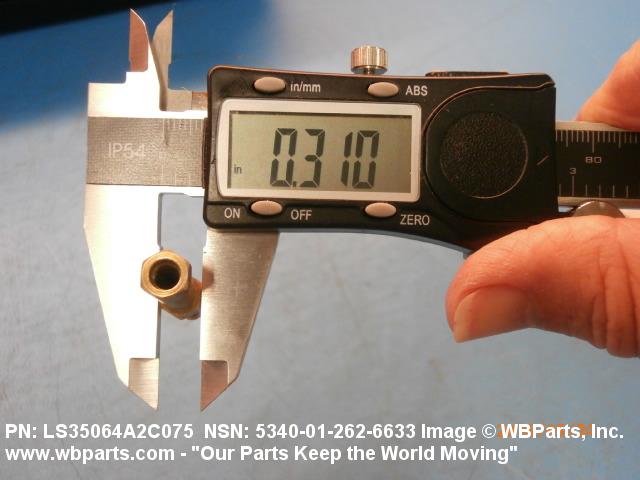

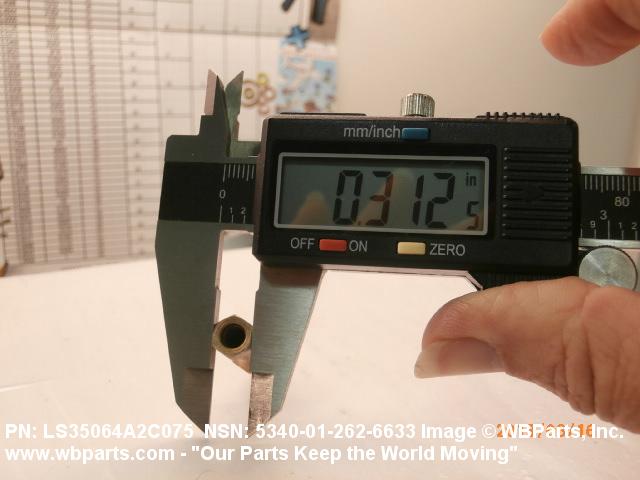

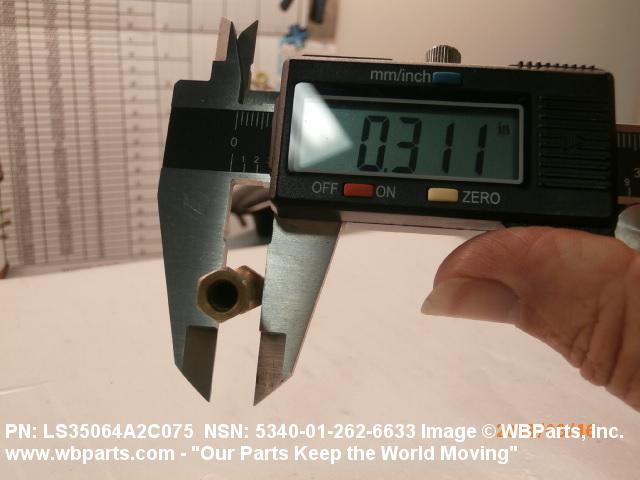

| WIDTH ACROSS FLATS | 0.3040 INCHES MINIMUM AND 0.3160 INCHES MAXIMUM |

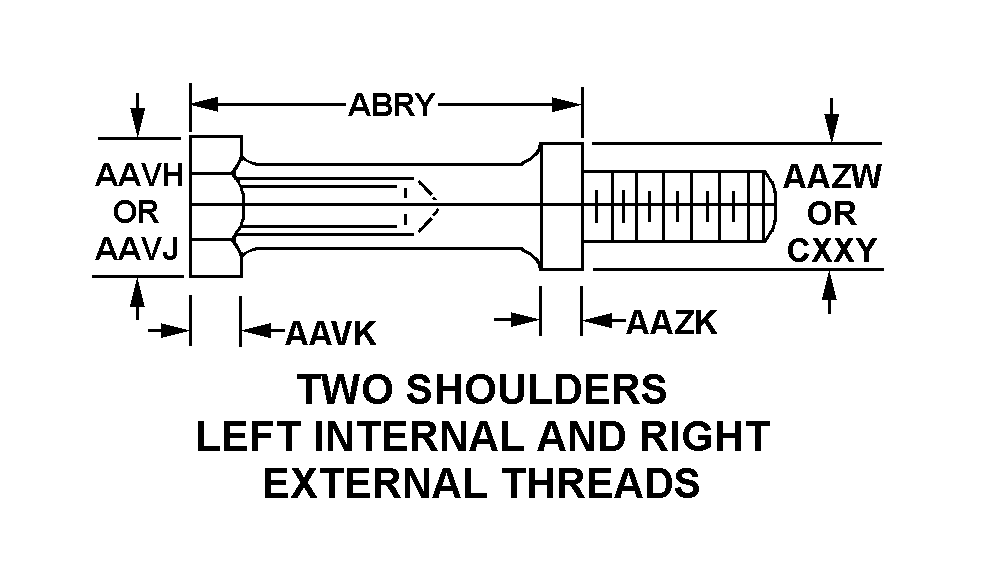

| STYLE DESIGNATOR | 25 TWO SHOULDERS LEFT INTERNAL AND RIGHT EXTERNAL THREADS |
| SHOULDER DIAMETER | 0.3040 INCHES MINIMUM AND 0.3160 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.1250 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 0.3470 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.0800 INCHES NOMINAL |

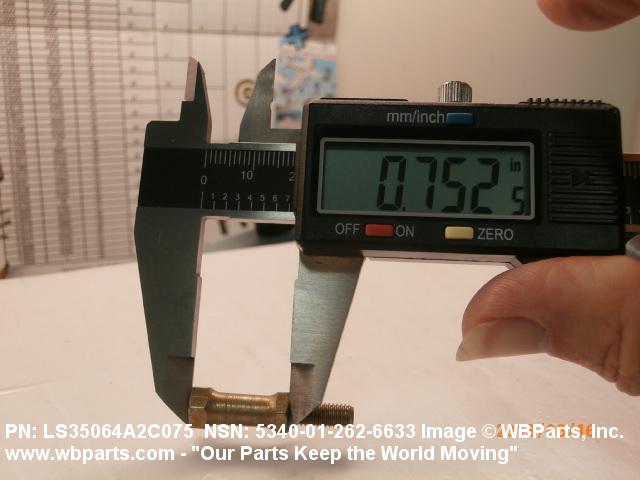

| LENGTH | 0.7500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF LEFT INTERNAL UNJF RIGHT EXTERNAL |
| NOMINAL THREAD SIZE | 0.190 INCHES LEFT INTERNAL 0.1900 INCHES RIGHT EXTERNAL |
| THREAD QUANTITY PER INCH | 32 LEFT INTERNAL 32 RIGHT EXTERNAL |
| THREAD CLASS | 3B LEFT INTERNAL 3B RIGHT EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND LEFT INTERNAL RIGHT-HAND RIGHT EXTERNAL |

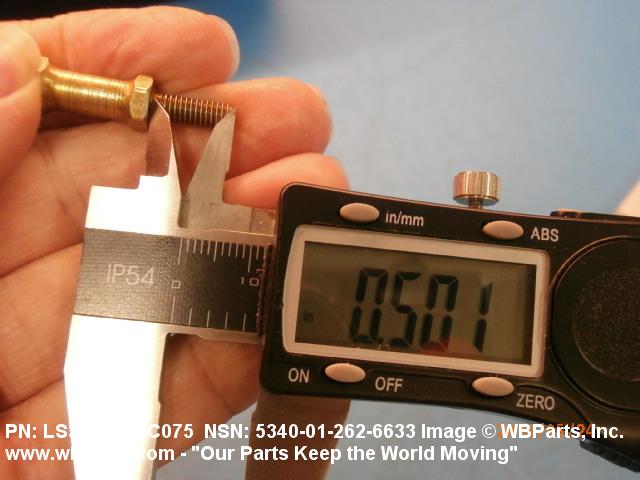

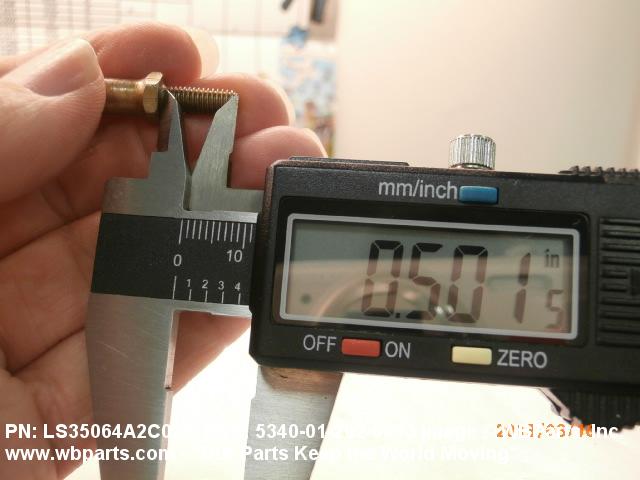

| THREAD LENGTH | 0.5000 INCHES NOMINAL LEFT INTERNAL 0.5000 INCHES NOMINAL RIGHT EXTERNAL |
Restrictions/Controls & Freight Information | NSN 5340-01-262-6633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 9Z | DLIS-K Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-262-6633
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SO | TG:SPECIAL OPERATIONAL FORCES (SOF) PECULIAR |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
