NSN 5340-01-262-4158 29124611, 2912461-1, 01-262-4158
Product Details | LOCKING STAY
5340-01-262-4158 A device designed to support either a slotted (sliding action) or a hinged device to support in the unfolded or extended position. Commonly used to brace and/or lock into position such items as card table legs, chest lids, folding counters, desk tops and trunk lids.
Part Alternates: 29124611, 2912461-1, 5340-01-262-4158, 01-262-4158, 5340012624158, 012624158
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 AUG 1987 | 01-262-4158 | 67545 ( STAY, LOCKING ) |

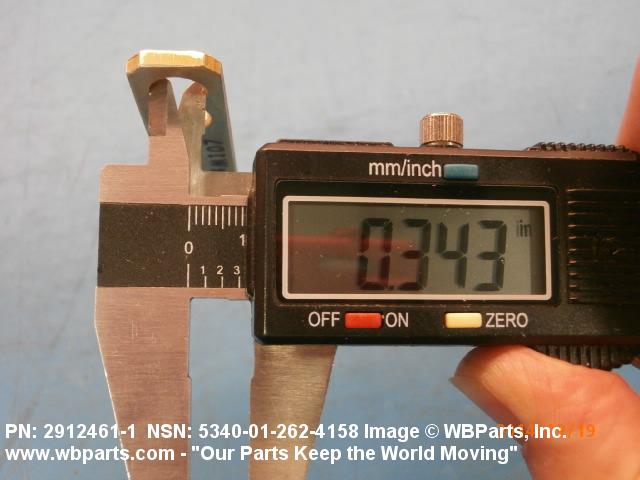

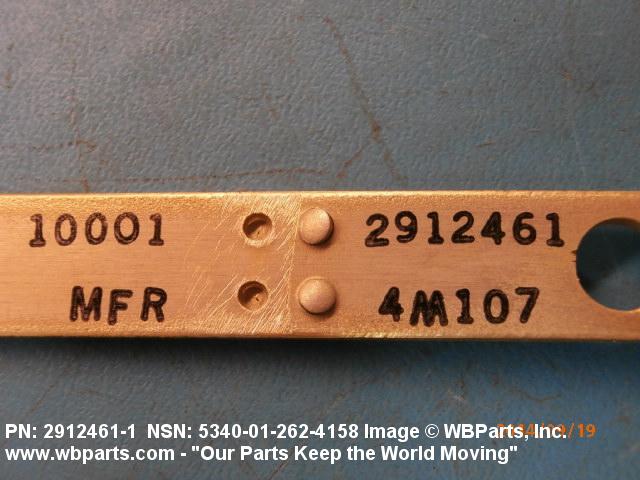

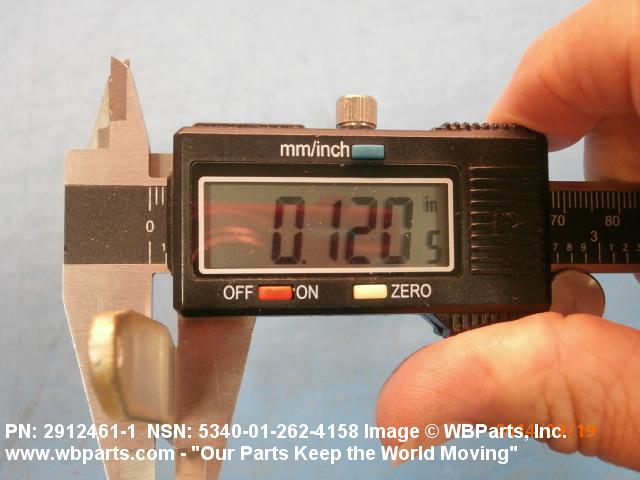

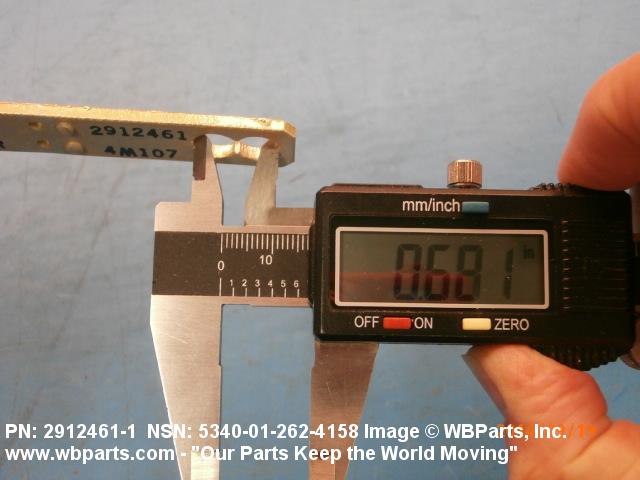

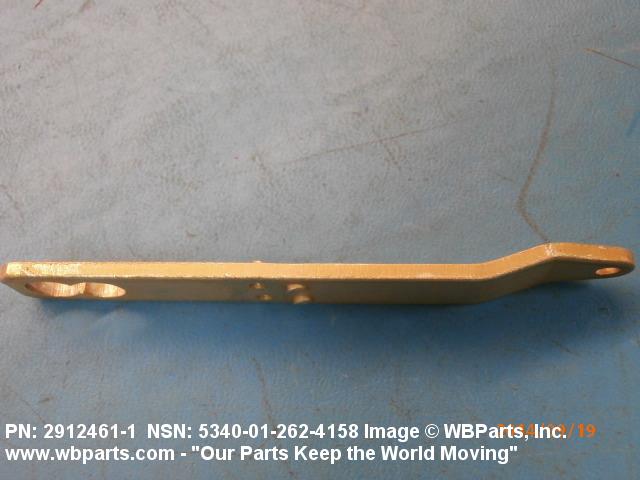

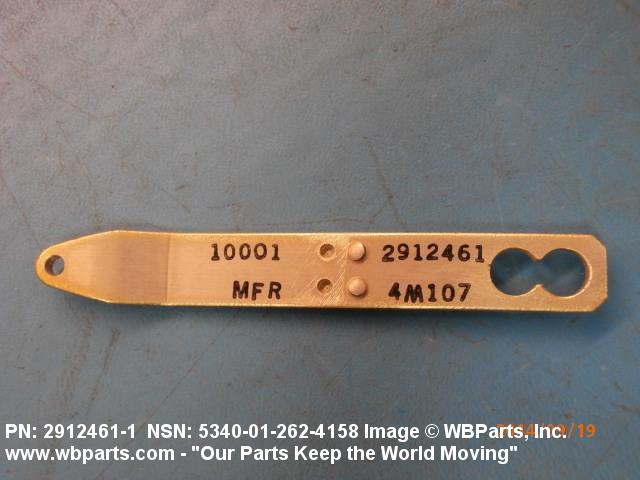

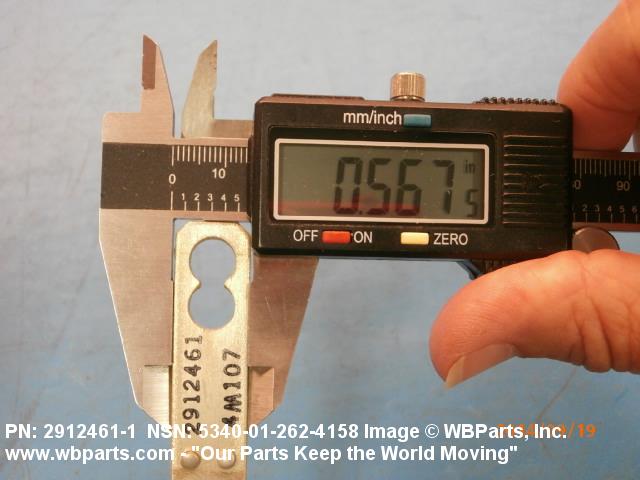

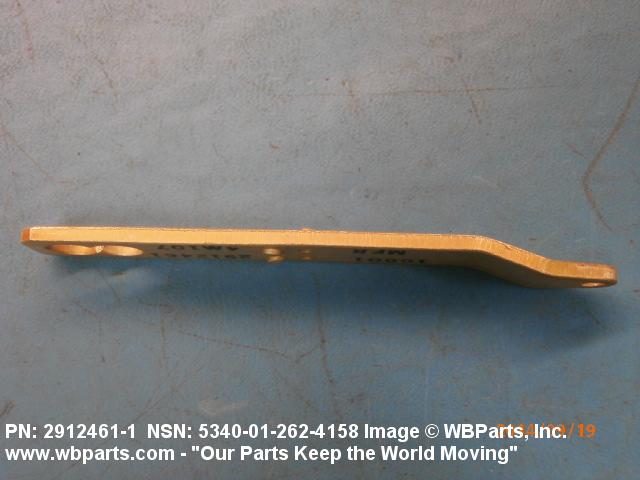

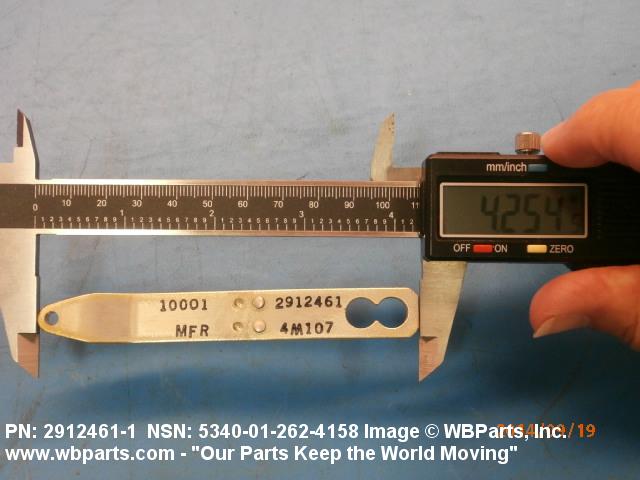

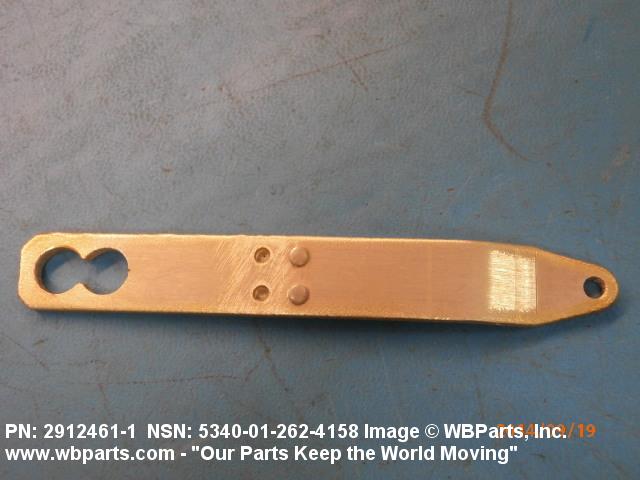

Drawings & Photos | NSN 5340-01-262-4158
Demand History | NSN 5340-01-262-4158
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-262-4158 | 2017-11-306 | 11 | DIBBS |
| 5340-01-262-4158 | 2014-09-251 | 10 | United States |
| 5340-01-262-4158 | 2014-05-149 | 10 | DIBBS |
| 5340-01-262-4158 | 2014-03-86 | 1 | DIBBS |
| 5340-01-262-4158 | 2014-03-71 | 1 | DIBBS |
| 5340-01-262-4158 | 2013-01-15 | 1 | DIBBS |
Cross Reference | NSN 5340-01-262-4158
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2912461-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-262-4158
Related Products | NSN 5340-01-262-4158
Technical Data | NSN 5340-01-262-4158
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11,6061-T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CLASS 1A MIL SPEC SINGLE TREATMENT RESPONSE |
| MOUNTING HOLE TYPE | PLAIN |
| OFFSET QUANTITY | 1 |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2912461-1 |
Restrictions/Controls & Freight Information | NSN 5340-01-262-4158
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-262-4158
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
