NSN 5340-01-262-4161 7589060001, 75-89060-001, 01-262-4161
Product Details | DOUBLE ANGLE BRACKET
5340-01-262-4161 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 7589060001, 75-89060-001, 5340-01-262-4161, 01-262-4161, 5340012624161, 012624161
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 AUG 1987 | 01-262-4161 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-01-262-4161
Cross Reference | NSN 5340-01-262-4161
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75-89060-001 | 33875 | RAYTHEON E-SYSTEMS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-262-4161
Technical Data | NSN 5340-01-262-4161
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE ZINC |
| STYLE DESIGNATOR | 13 ADJACENT ANGLES |
| III FIRST LEG LENGTH | 1.000 INCHES NOMINAL |
| III SECOND LEG LENGTH | 1.000 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.063 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.063 INCHES NOMINAL |
| III CENTER SECTION HEIGHT | 6.250 INCHES NOMINAL |
| III CENTER SECTION THICKNESS | 0.063 INCHES NOMINAL |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| III SECOND LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |

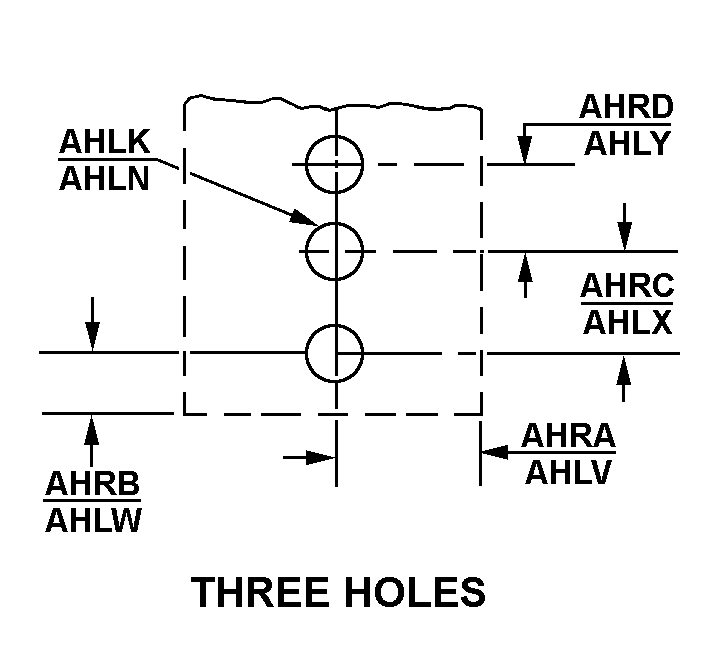

| FIRST LEG HOLE ARRANGEMENT STYLE | 138 THREE HOLES |
| FIRST LEG HOLE DIAMETER | 0.098 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG LENGTH | 3.130 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG LENGTH | 0.380 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | IDENTICAL |
| MOUNTING HOLE TYPE | PLAIN |
| REINFORCEMENT METHOD | GUSSET CENTER SECTION |
| SPECIAL FEATURES | GUSSET HAS HALF OVAL CUT 0.500 IN. WIDE |
| MANUFACTURERS CODE | 33875 |
| DESIGN CONTROL REFERENCE | 75-89060-001 |
Restrictions/Controls & Freight Information | NSN 5340-01-262-4161
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
