NSN 5340-01-234-7725 2000290020, 200-0290-02-0, 3521
Product Details | LINE SUPPORTING STRAP
5340-01-234-7725 A flexible strap, furnished with a buckle, specificifically designed to support other items, such as cable(s), wire(s), tube(s), and the like. The buckle may be permanently assembled and may be provided with a mounting feature. The strap may be used to bridge a channel by mounting the buckle and strap separately. Excludes CLAMP, LOOP; STRAP, RETAINING; STRAP, LEATHER; and STRAP, WEBBING.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: 2000290020, 200-0290-02-0, 3521, 3522, 5340-01-234-7725, 01-234-7725, 5340012347725, 012347725
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUN 1986 | 01-234-7725 | 22129 ( STRAP, LINE SUPPORTING ) |
Drawings & Photos | NSN 5340-01-234-7725
Demand History | NSN 5340-01-234-7725
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 200-0290-02-0 | 2019-08-220 | 50 | DIBBS |
| 3521 | 2019-08-220 | 50 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-234-7725
Technical Data | NSN 5340-01-234-7725
| Characteristic | Specifications |
|---|---|
| STRAP MATERIAL | NYLON |
| BUCKLE MATERIAL | NYLON |

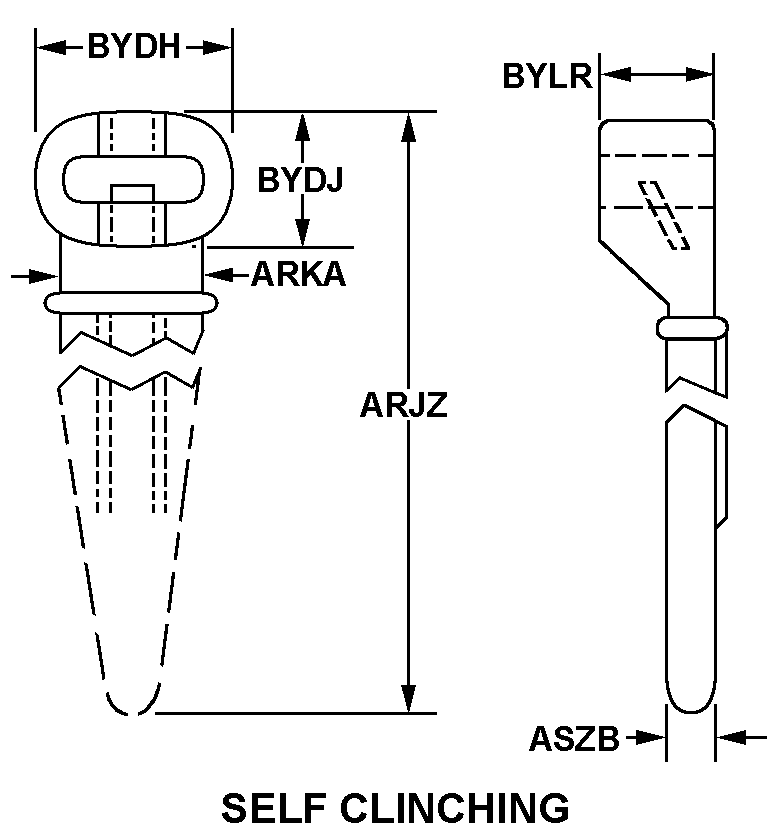

| STYLE DESIGNATOR | J11 SELF CLINCHING |
| STRAP LENGTH | 7.500 INCHES NOMINAL |
| STRAP WIDTH | 0.188 INCHES NOMINAL |
| STRAP THICKNESS | 0.055 INCHES NOMINAL |
| BUCKLE MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
| ANTIABRASION PAD | NOT INCLUDED |
| SPECIAL FEATURES | COLOR BLACK |
Restrictions/Controls & Freight Information | NSN 5340-01-234-7725
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-234-7725
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
