NSN 5340-00-656-6033 67638CR, 676-3-8-CR, 67638DR
Product Details | LINE SUPPORTING STRAP
5340-00-656-6033 A flexible strap, furnished with a buckle, specificifically designed to support other items, such as cable(s), wire(s), tube(s), and the like. The buckle may be permanently assembled and may be provided with a mounting feature. The strap may be used to bridge a channel by mounting the buckle and strap separately. Excludes CLAMP, LOOP; STRAP, RETAINING; STRAP, LEATHER; and STRAP, WEBBING.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: 67638CR, 676-3-8-CR, 67638DR, 676-3-8DR, 676-3-8-DR, 5340-00-656-6033, 00-656-6033, 5340006566033, 006566033
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-656-6033 | 22129 ( STRAP, LINE SUPPORTING ) |

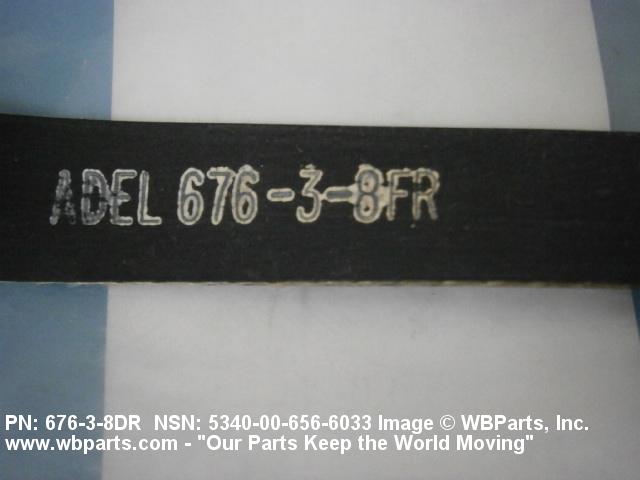

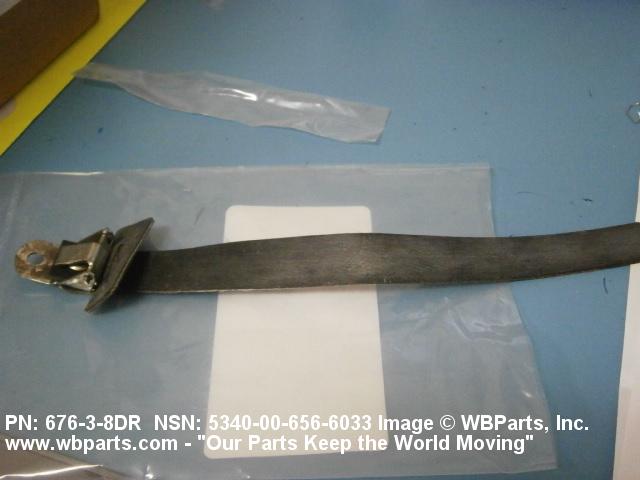

Drawings & Photos | NSN 5340-00-656-6033
Demand History | NSN 5340-00-656-6033
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 67638DR | 2012-01-16 | 10 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-656-6033
Technical Data | NSN 5340-00-656-6033
| Characteristic | Specifications |
|---|---|
| STRAP MATERIAL | RUBBER, SYNTHETIC |
| BUCKLE MATERIAL | STEEL |
| BUCKLE SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | J1 BOLT TYPE |
| MOUNTING HOLE DIAMETER | 0.199 INCHES NOMINAL |
| STRAP LENGTH | 8.000 INCHES NOMINAL |
| STRAP WIDTH | 0.625 INCHES NOMINAL |
| STRAP THICKNESS | 0.062 INCHES NOMINAL |
| BUCKLE OVERALL WIDTH | 0.938 INCHES NOMINAL |
| BUCKLE LENGTH | 1.125 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO BUCKLE END | 0.250 INCHES NOMINAL |
| BUCKLE MATERIAL THICKNESS | 0.035 INCHES NOMINAL |
| ANTIABRASION PAD | INCLUDED |
| REMOVABILITY FEATURE | NOT INCLUDED |
| MANUFACTURERS CODE | 81982 |
| DESIGN CONTROL REFERENCE | 676-3-8DR |
Restrictions/Controls & Freight Information | NSN 5340-00-656-6033
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-656-6033
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
