NSN 5340-01-197-6737 NAS1831C6E32, 01-197-6737, 011976737
Product Details | SPACING THREADED STANDOFF
5340-01-197-6737 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: NAS1831C6E32, 5340-01-197-6737, 01-197-6737, 5340011976737, 011976737
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 DEC 1984 | 01-197-6737 | 40280 ( STANDOFF, THREADED, SPACING ) |

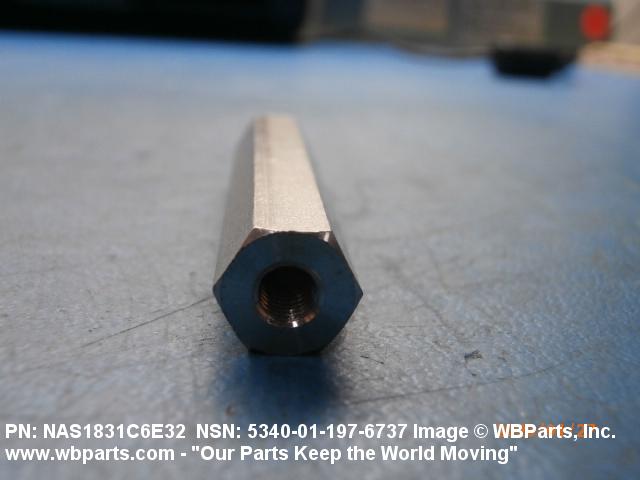

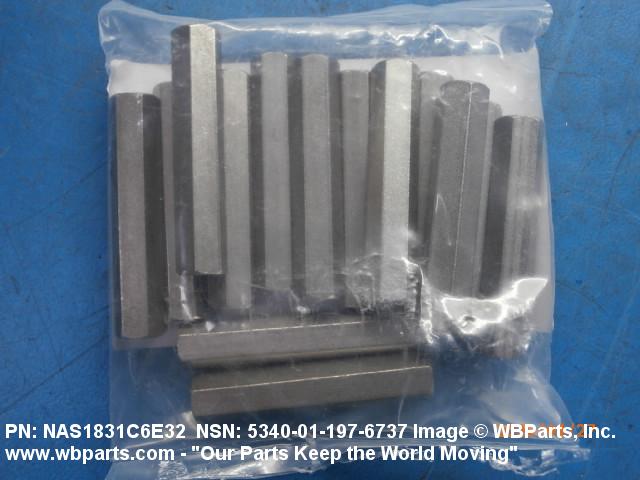

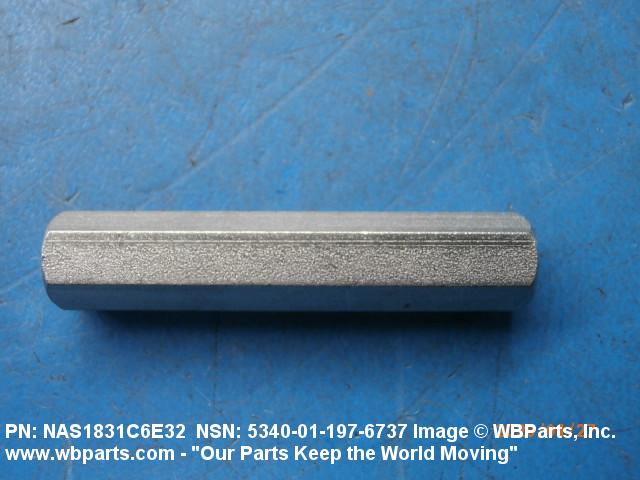

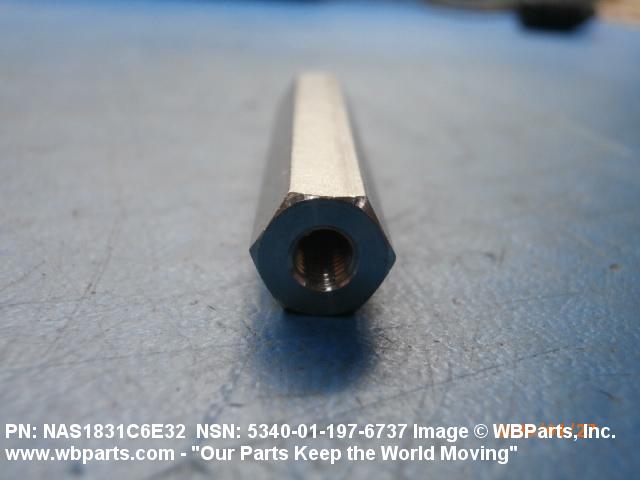

Drawings & Photos | NSN 5340-01-197-6737
Demand History | NSN 5340-01-197-6737
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1831C6E32 | 2020-01-15 | 14 | us |
| 5340-01-197-6737 | 2018-11-305 | 16 | DIBBS |
| 5340-01-197-6737 | 2018-08-214 | 4 | DIBBS |
Cross Reference | NSN 5340-01-197-6737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1831C6E32 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-197-6737
Related Products | NSN 5340-01-197-6737
Technical Data | NSN 5340-01-197-6737
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | HEXAGON |

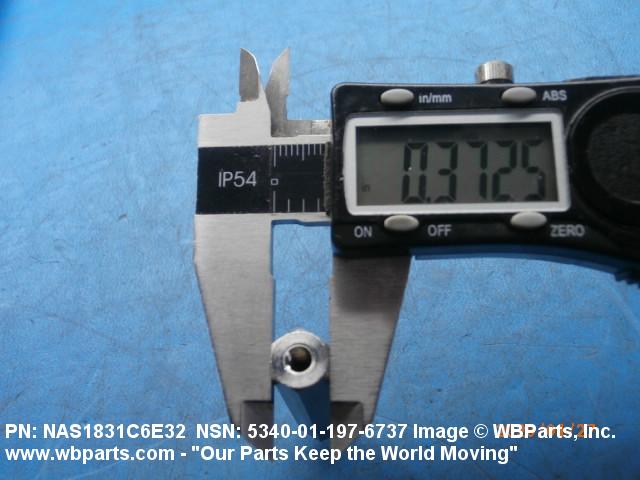

| WIDTH ACROSS FLATS | 0.371 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| STYLE DESIGNATOR | 8 LEFT INTERNAL AND RIGHT INTERNAL THREADS |

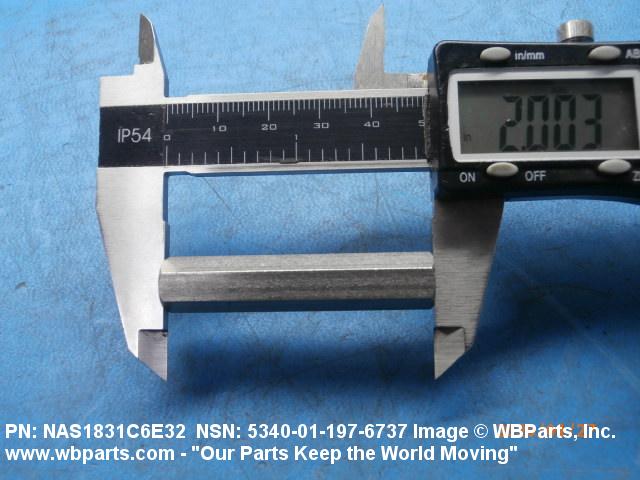

| LENGTH | 1.995 INCHES MINIMUM AND 2.005 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1831 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| (NON-CORE DATA) FIRST INTERNAL THREAD LENGTH | 0.500 INCHES MINIMUM |
| (NON-CORE DATA) SECOND INTERNAL THREAD LENGTH | 0.500 INCHES MINIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | 0.1900-32 UNJC-3B |
| (NON-CORE DATA) SECOND INTERNAL THREAD CHARACTERISTICS | 0.1900-32 UNJC-3B |
| (NON-CORE DATA) MATERIAL | STEEL, ASTM A582, TYPE 303 OR STEEL, ASTM A582, TYPE 303SE |
| (NON-CORE DATA) SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
Restrictions/Controls & Freight Information | NSN 5340-01-197-6737
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-197-6737
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
