NSN 5340-01-197-0520 5187187, 01-197-0520, 011970520

5340-01-197-0520 An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin.

Part Alternates: 5187187, 5340-01-197-0520, 01-197-0520, 5340011970520, 011970520

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	18 DEC 1984	01-197-0520	07655 ( LEAF, BUTT HINGE )

Part Number	Request Date	QTY	Origin
5340-01-197-0520	2013-02-51	2	DIBBS
5340-01-197-0520	2012-11-310	6	DIBBS
5340-01-197-0520	2012-07-195	1	DIBBS

Part Number	Cage Code	Manufacturer
5187187	53711	NAVAL SEA SYSTEMS COMMAND

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5340-01-197-0520

Compare

5340-01-197-0521, 5340-01-197-0604, 5340-01-197-0606, 5340-01-197-0607, 5340-01-197-0609

Characteristic	Specifications
MATERIAL AND LOCATION	STEEL OVERALL
SURFACE TREATMENT AND LOCATION	ANODIZED, MIL-A-8625, TYPE 1, CLASS 1 OVERALL

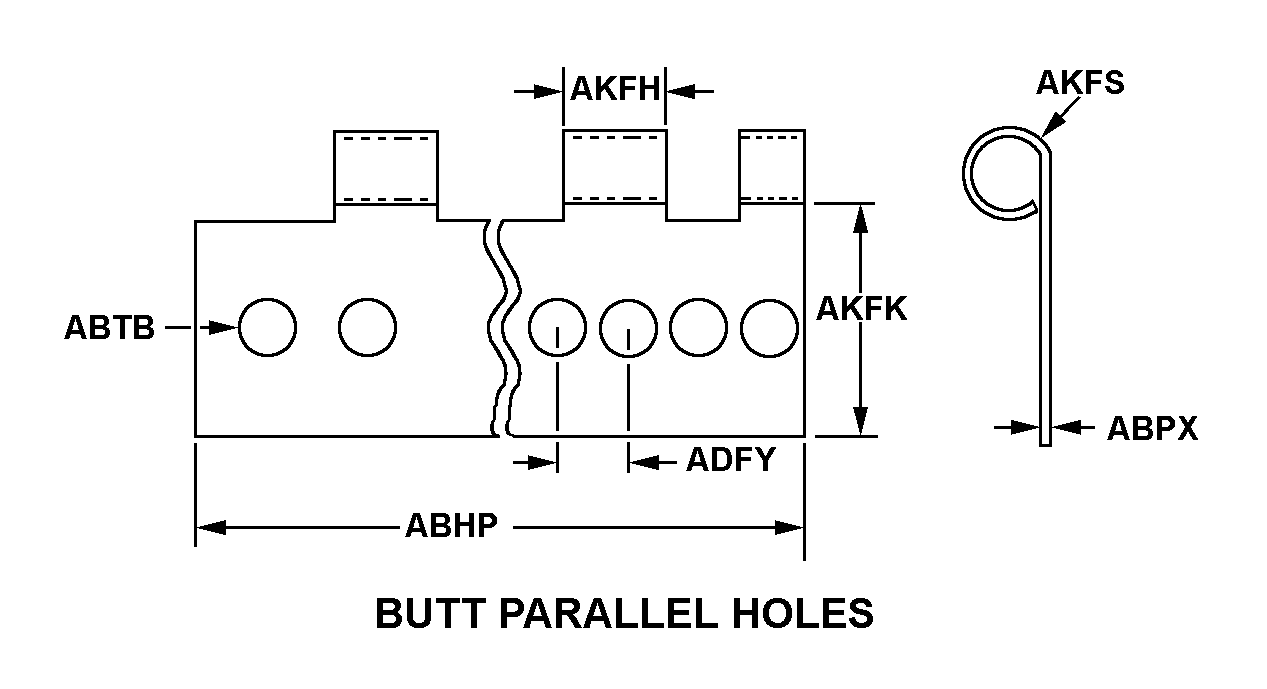

STYLE DESIGNATOR	49 BUTT PARALLEL HOLES
OVERALL LENGTH	3.000 INCHES NOMINAL
MATERIAL THICKNESS	0.312 INCHES NOMINAL
MOUNTING HOLE DIAMETER	0.373 INCHES MINIMUM AND 0.381 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	1.000 INCHES NOMINAL
KNUCKLE LENGTH	0.990 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
KNUCKLE INSIDE DIAMETER	0.376 INCHES MINIMUM AND 0.378 INCHES MAXIMUM
REVERSIBLE FEATURE	NOT INCLUDED
HINGE PIN	NOT INCLUDED
KNUCKLE TYPE	ANY ACCEPTABLE
KNUCKLE QUANTITY	1
MOUNTING HOLE QUANTITY	5
PERFORMANCE TYPE	NOT RATED
SPECIAL FEATURES	2 HOLES 0.096-0.094 IN. SPACED 1.000 IN. APART BETWEEN 1ST AND 2ND AND 2ND AND 3RD HOLES

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095300	HINGES/BUTTS NOI I/S
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	ZK	United Kingdom ZL ZM
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
