Product Details | BUTT HINGE

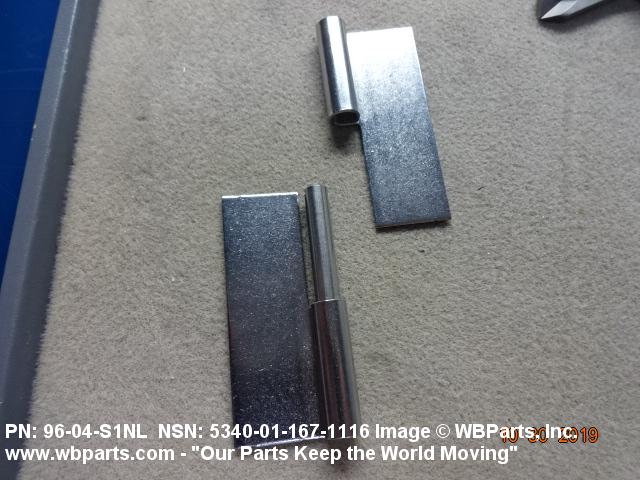

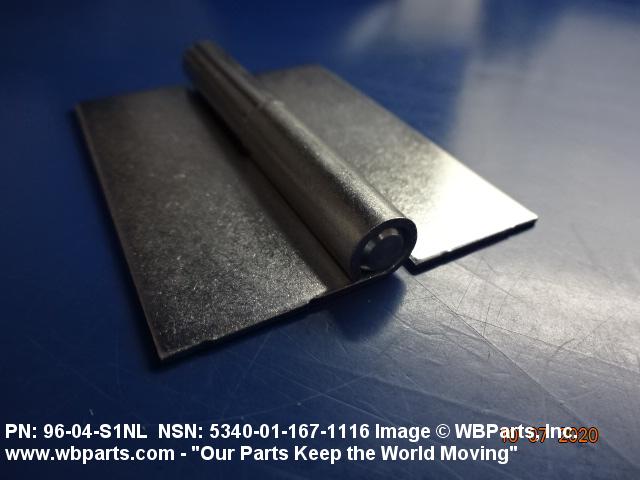

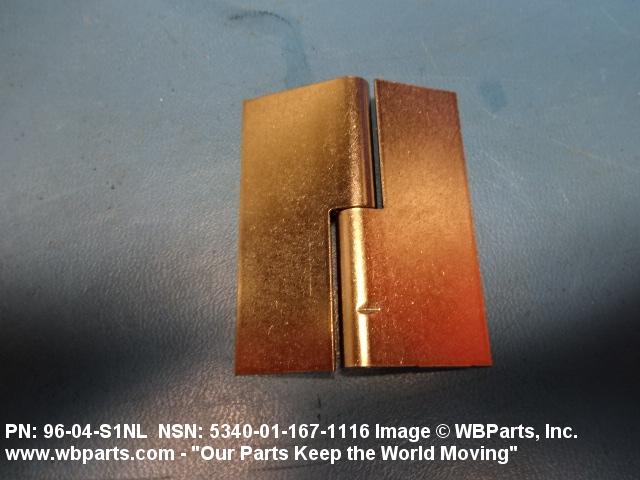

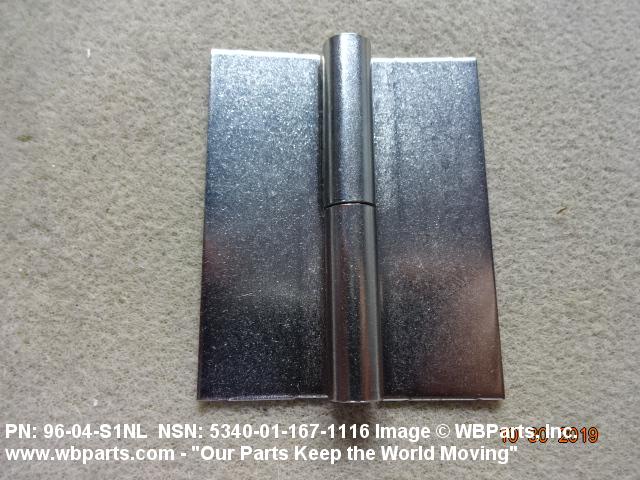

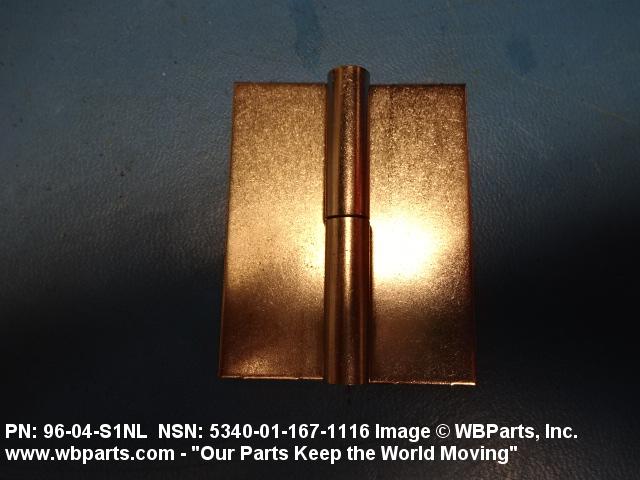

5340-01-167-1116 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: H1004S1NL, 9604S1NL, 96-04-S1NL, 5340-01-167-1116, 01-167-1116, 5340011671116, 011671116
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 NOV 1983 | 01-167-1116 | 22894 ( HINGE, BUTT ) |

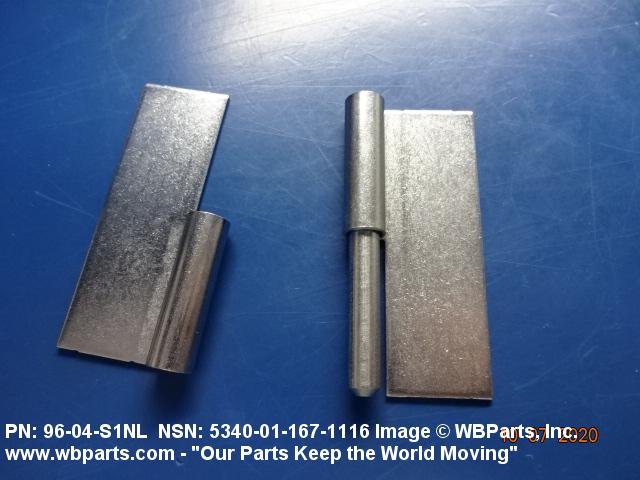

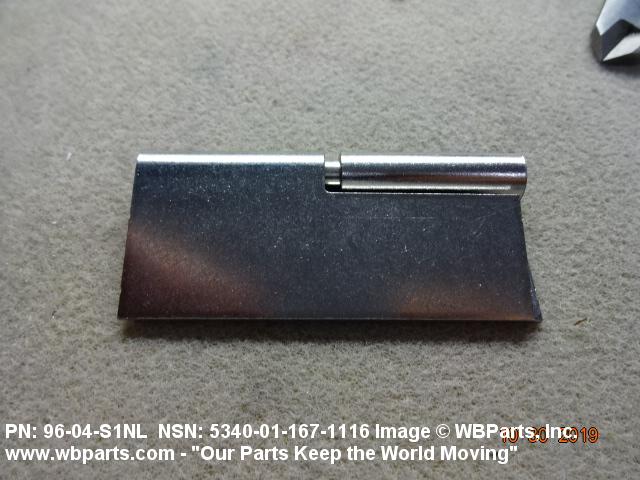

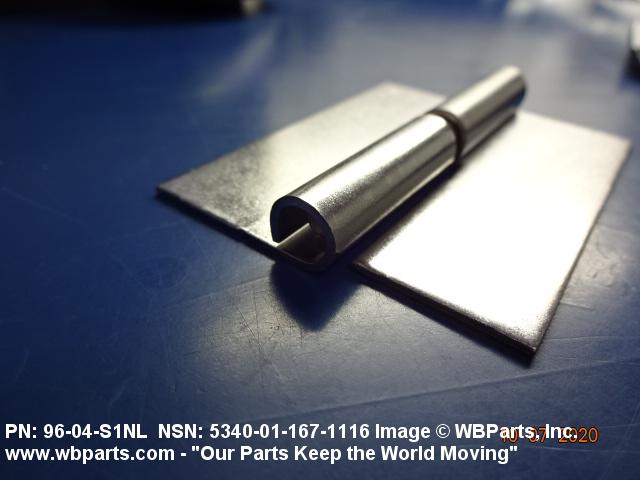

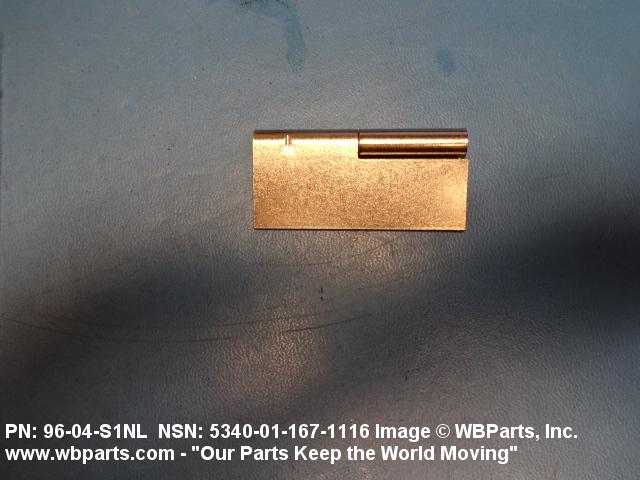

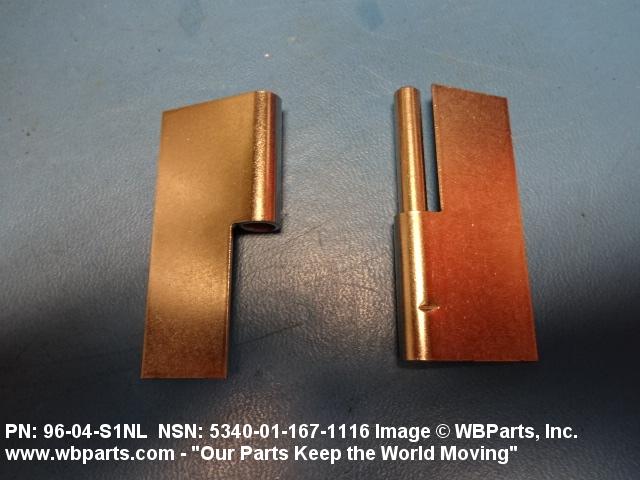

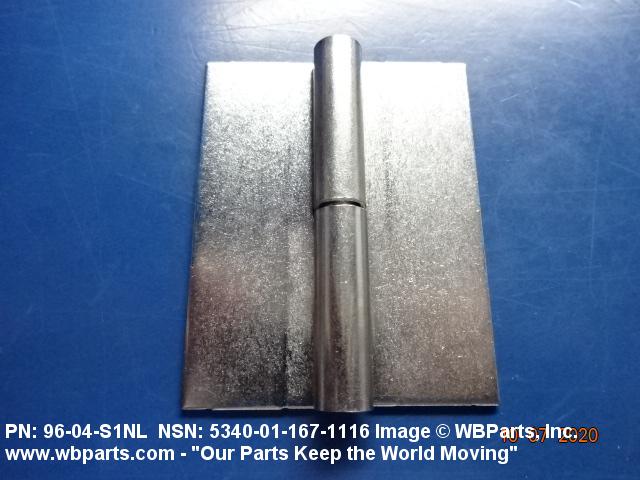

Drawings & Photos | NSN 5340-01-167-1116
Demand History | NSN 5340-01-167-1116
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-167-1116 | 2024-01-02 | 12 | US |
| 96-04-S1NL | 2022-08-220 | 59 | DIBBS |
| 96-04-S1NL | 2022-07-209 | 59 | DIBBS |
| H1004S1NL | 2022-05-129 | 24 | US |
| 5340-01-167-1116 | 2020-11-330 | 12 | US |
| 9604S1NL | 2020-09-274 | 12 | Australia |
| 9604S1NL | 2020-09-269 | 12 | Australia |
| H1004S1NL | 2020-04-99 | 16 | US |
| 9604S1NL | 2019-10-281 | 4 | Australia |
| 9604S1NL | 2018-11-325 | 30 | Australia |
| 5340-01-167-1116 | 2018-09-263 | 4 | Australia |
| 9604S1NL | 2018-09-261 | 30 | Australia |
| 5340-01-167-1116 | 2018-08-217 | 75 | DIBBS |
| 5340-01-167-1116 | 2018-05-124 | 51 | DIBBS |
| 5340-01-167-1116 | 2018-04-116 | 51 | DIBBS |
| 5340-01-167-1116 | 2017-08-223 | 72 | DIBBS |
| 5340-01-167-1116 | 2017-08-215 | 72 | DIBBS |
| 5340-01-167-1116 | 2015-03-61 | 92 | DIBBS |
| 5340-01-167-1116 | 2010-11-322 | 53 | DIBBS |
| 5340-01-167-1116 | 2010-04-111 | 146 | DIBBS |
| 5340-01-167-1116 | 2008-09-253 | 90 | DIBBS |
| 5340-01-167-1116 | 2008-06-171 | 87 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-167-1116
Related Products | NSN 5340-01-167-1116
Technical Data | NSN 5340-01-167-1116
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, AISI 301/SAE 30301 OVERALL OR STEEL, FED STD 66, AISI 302/SAE 30302 OVERALL OR STEEL, FED STD 66, AISI 303/SAE 30303 OVERALL OR STEEL, FED STD 66, AISI 321/SAE 30321 OVERALL OR STEEL, FED STD 66, COMP 304 OVERALL OR STEEL, FED STD 66, COMP 316 OVERALL |
| STYLE DESIGNATOR | 21 BUTT |

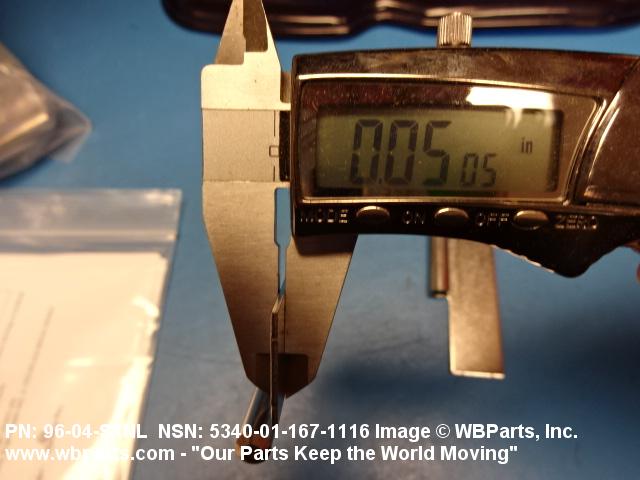

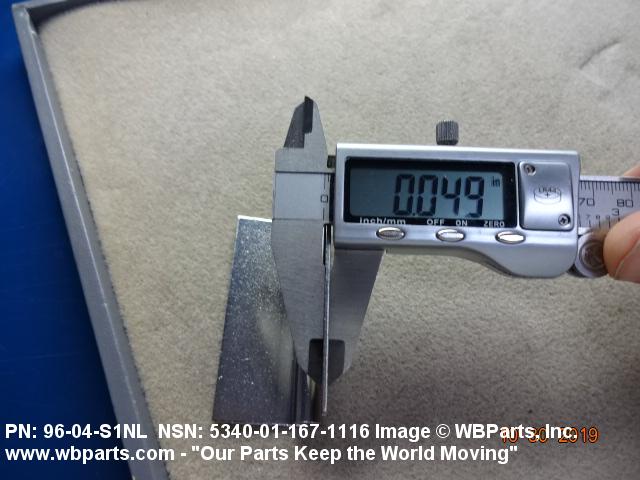

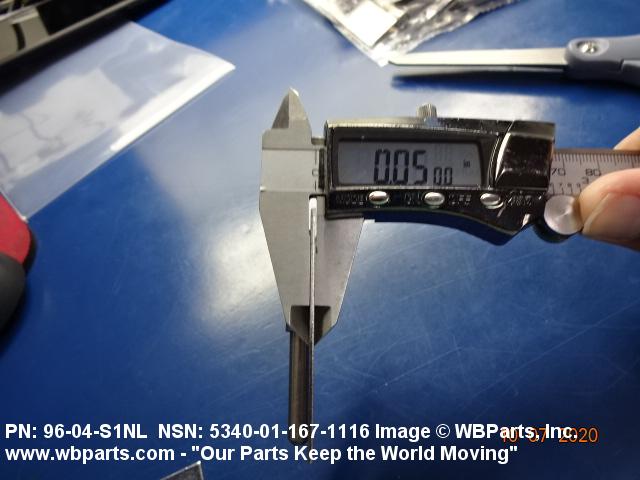

| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |

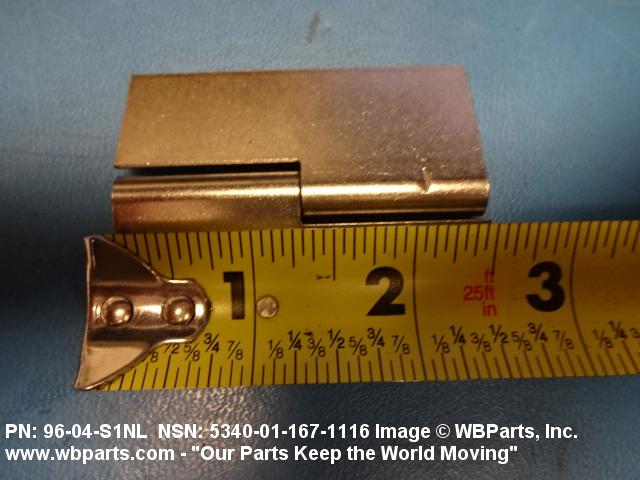

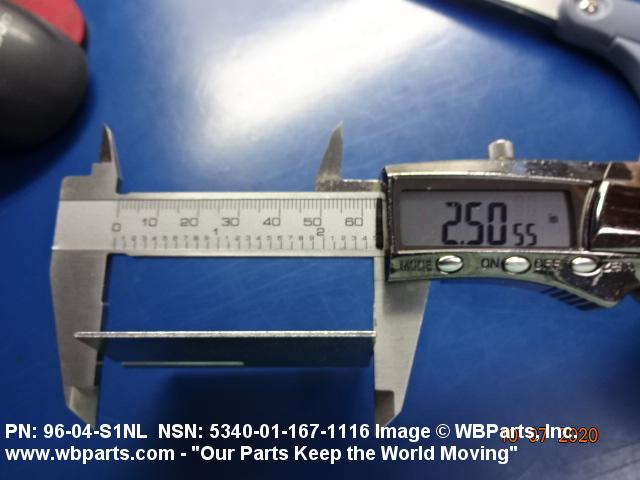

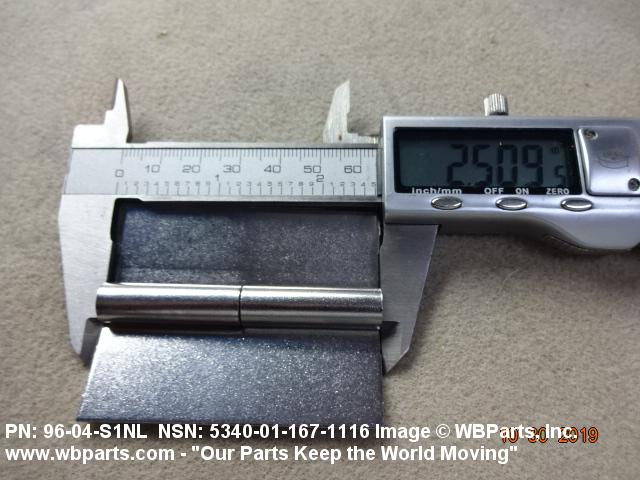

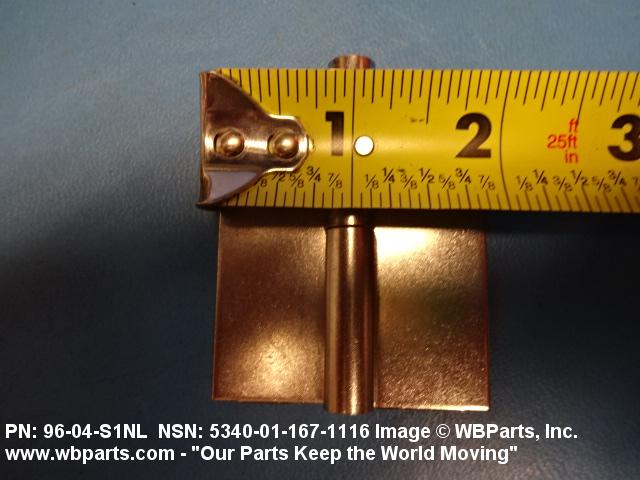

| BODY WIDTH | 2.500 INCHES NOMINAL |
