NSN 5340-01-160-2372 709-4684916 ITEM 33, 7094684916ITEM33, 01-160-2372
Product Details | ROD END CLEVIS
5340-01-160-2372 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 709-4684916 ITEM 33, 7094684916ITEM33, 5340-01-160-2372, 01-160-2372, 5340011602372, 011602372
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1983 | 01-160-2372 | 03796 ( CLEVIS, ROD END ) |

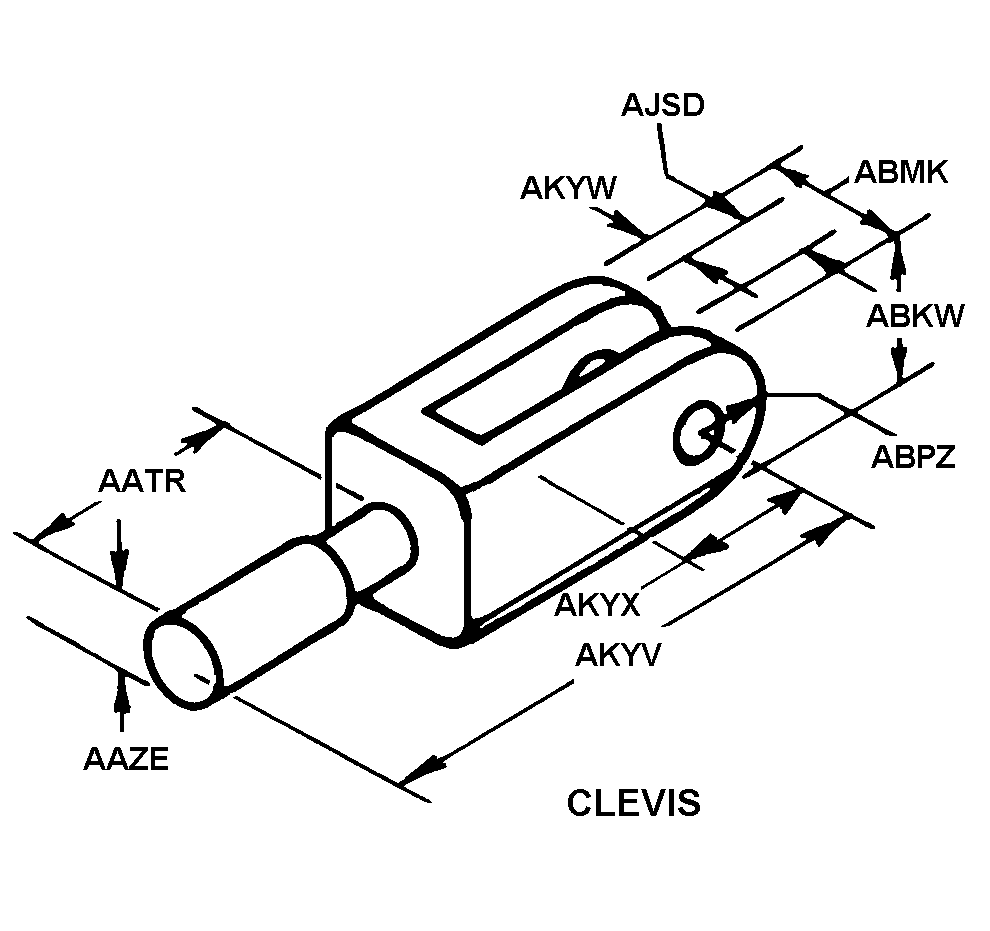

Drawings & Photos | NSN 5340-01-160-2372
Cross Reference | NSN 5340-01-160-2372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 709-4684916 ITEM 33 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-160-2372
Technical Data | NSN 5340-01-160-2372
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNC ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.500 INCHES ROD CONNECTION |
| THREAD CLASS | 2A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 1.019 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 30 CLEVIS |
| SHANK LENGTH | 14.500 INCHES NOMINAL |
| SHANK DIAMETER | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| END RADIUS | 0.500 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.531 INCHES MINIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 16.250 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.230 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.3750 INCHES MINIMUM AND 0.3755 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 16.250 INCHES NOMINAL |
| ROD CONNECTION BORE DIAMETER | 0.500 INCHES MINIMUM AND 0.501 INCHES MAXIMUM |
| ROD CONNECTION BORE DEPTH | 0.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 709-4684916 ITEM 33 |
Restrictions/Controls & Freight Information | NSN 5340-01-160-2372
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-160-2372
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
