NSN 5340-01-104-0518 16B180513, 16B1805-13, 01-104-0518
Product Details | ROD END CLEVIS
5340-01-104-0518 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 16B180513, 16B1805-13, 5340-01-104-0518, 01-104-0518, 5340011040518, 011040518
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 NOV 1980 | 01-104-0518 | 03796 ( CLEVIS, ROD END ) |

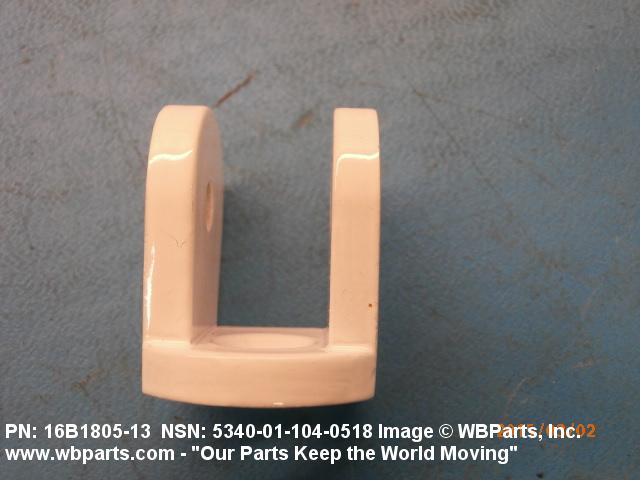

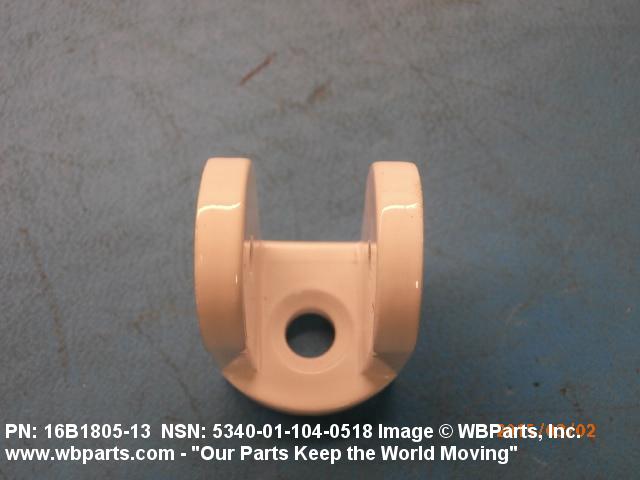

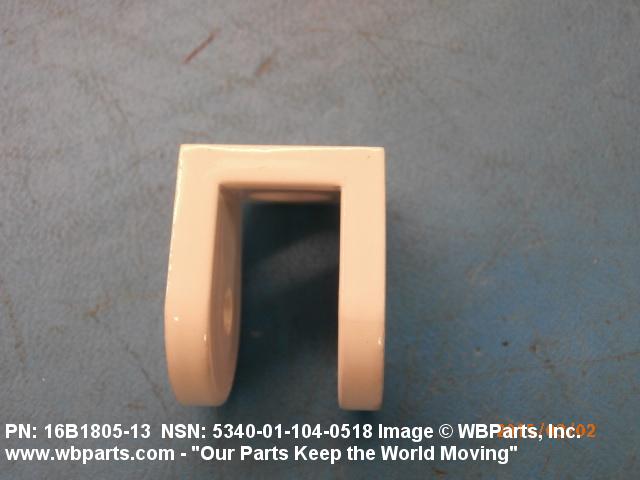

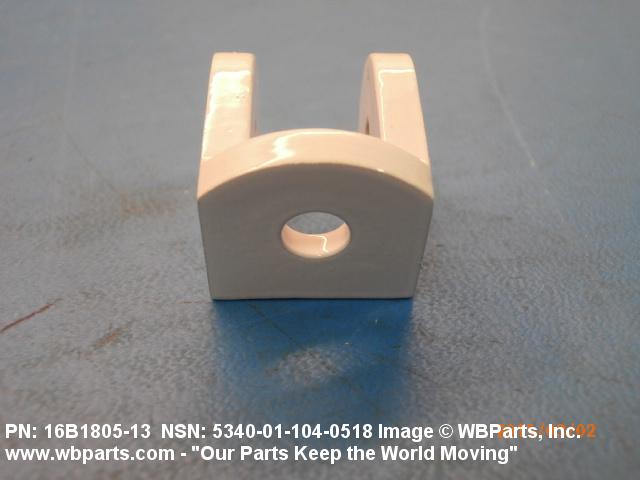

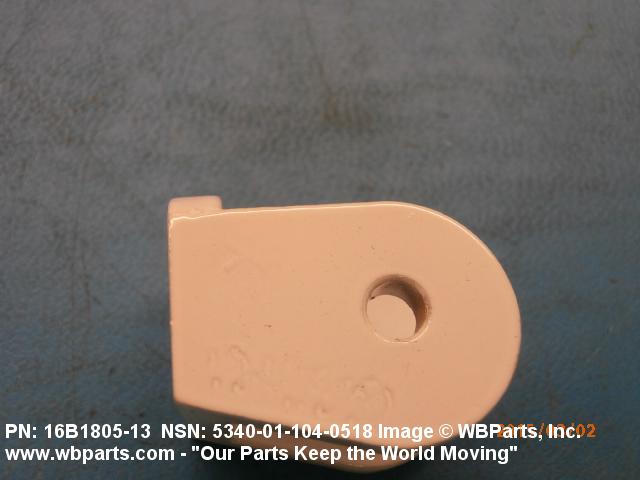

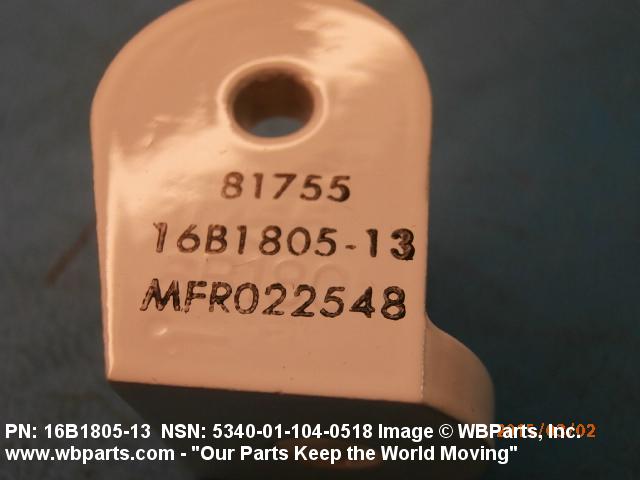

Drawings & Photos | NSN 5340-01-104-0518
Demand History | NSN 5340-01-104-0518
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-104-0518 | 2016-01-27 | 5 | DIBBS |
| 5340-01-104-0518 | 2015-03-76 | 4 | DIBBS |
| 16B180513 | 2015-02-49 | 5 | United States |
| 5340-01-104-0518 | 2012-02-55 | 1 | DIBBS |
| 5340-01-104-0518 | 2011-08-231 | 7 | DIBBS |
| 5340-01-104-0518 | 2010-08-235 | 2 | DIBBS |
Cross Reference | NSN 5340-01-104-0518
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16B1805-13 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-104-0518
Related Products | NSN 5340-01-104-0518
Technical Data | NSN 5340-01-104-0518
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

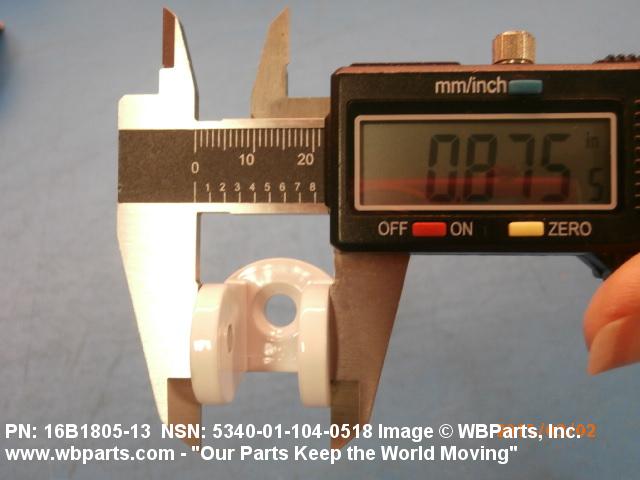

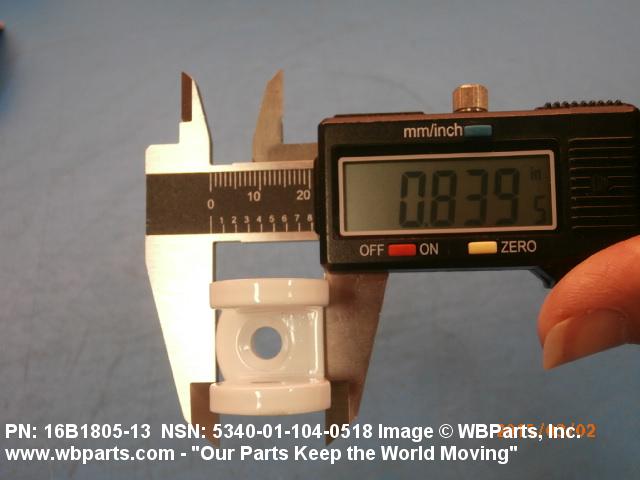

| OVERALL HEIGHT | 0.820 INCHES NOMINAL |
| OVERALL WIDTH | 0.880 INCHES NOMINAL |

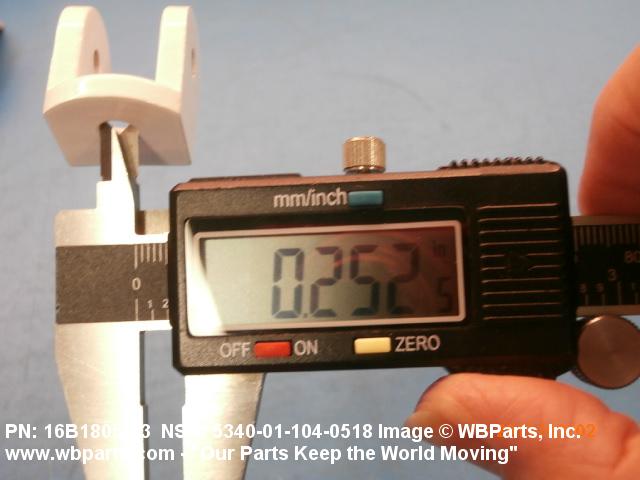

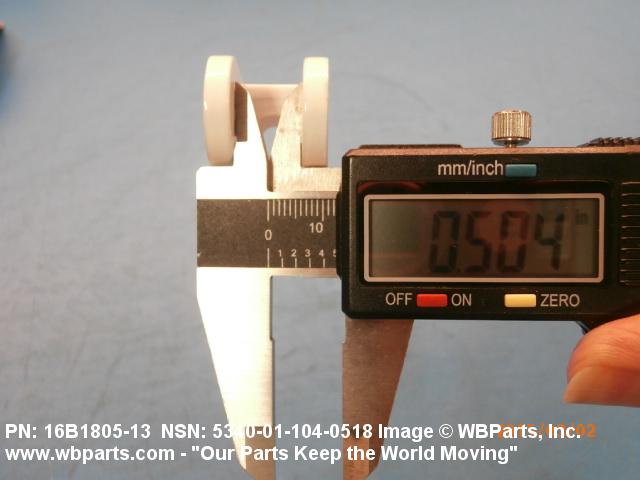

| FORK SPAN WIDTH | 0.510 INCHES NOMINAL |

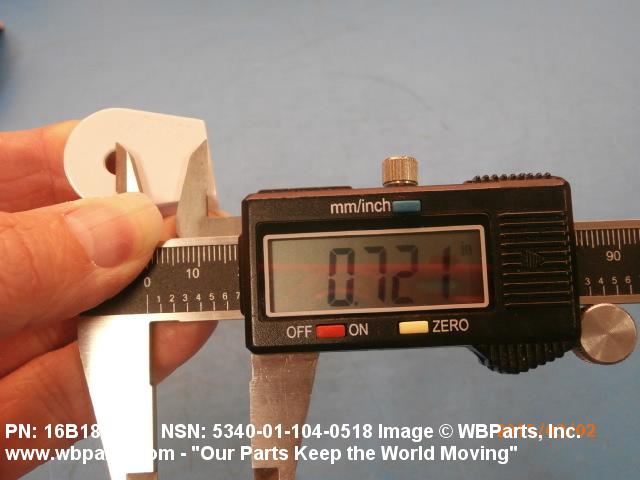

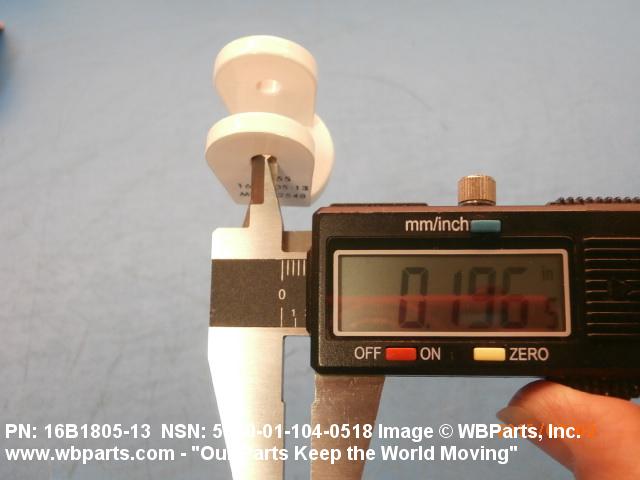

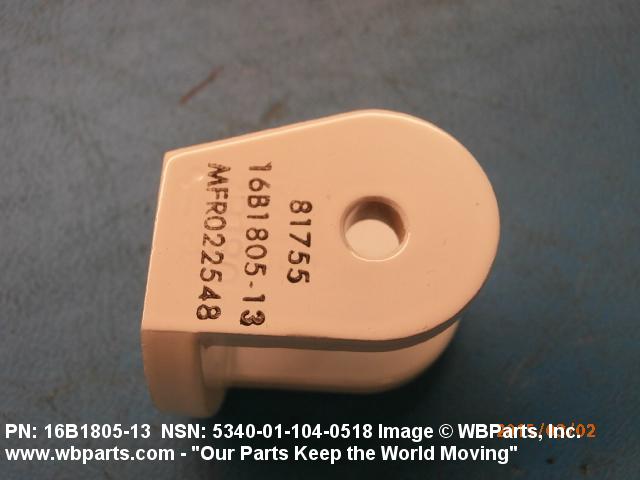

| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 0.720 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.182 INCHES NOMINAL |
| FORK DEPTH | 0.420 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.250 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| HOLE DIAMETER | 0.190 INCHES MINIMUM AND 0.196 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16B1805-13 |
Restrictions/Controls & Freight Information | NSN 5340-01-104-0518
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
