NSN 5340-01-138-8853 70500-02074-106, 01-138-8853, 7050002074106
Product Details | ROD END CLEVIS
5340-01-138-8853 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 70500-02074-106, 5340-01-138-8853, 01-138-8853, 5340011388853, 7050002074106, 011388853
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 SEP 1982 | 01-138-8853 | 03796 ( CLEVIS, ROD END ) |

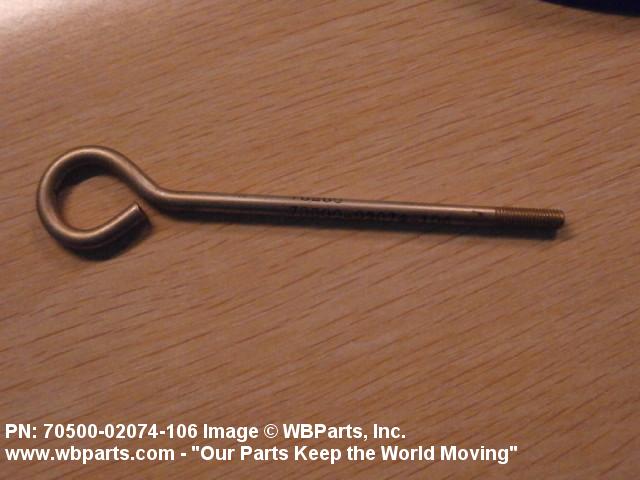

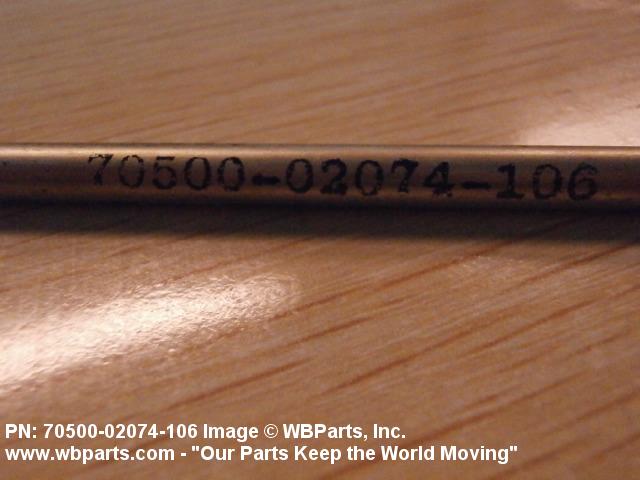

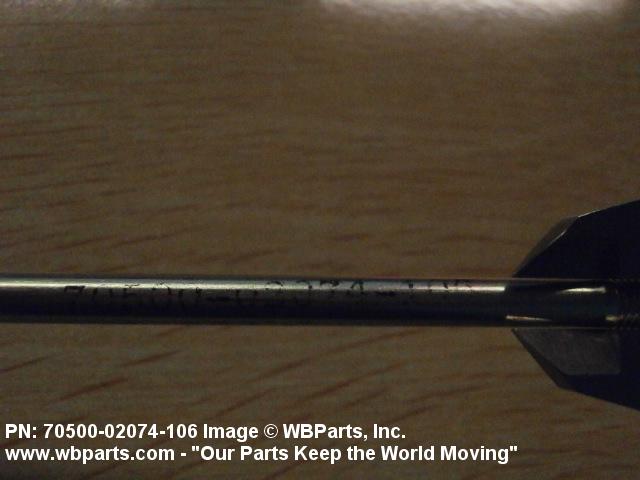

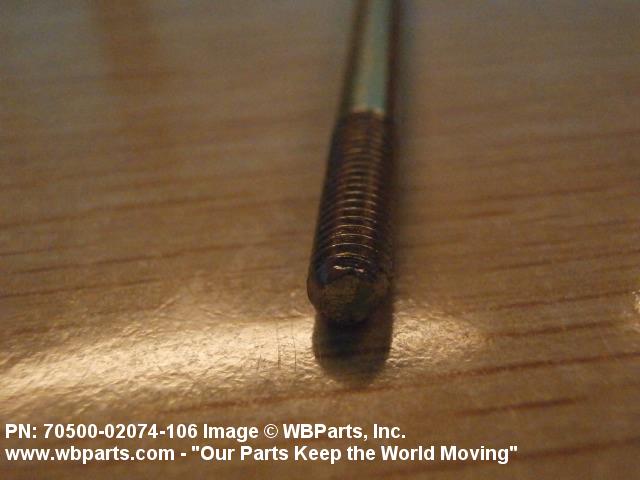

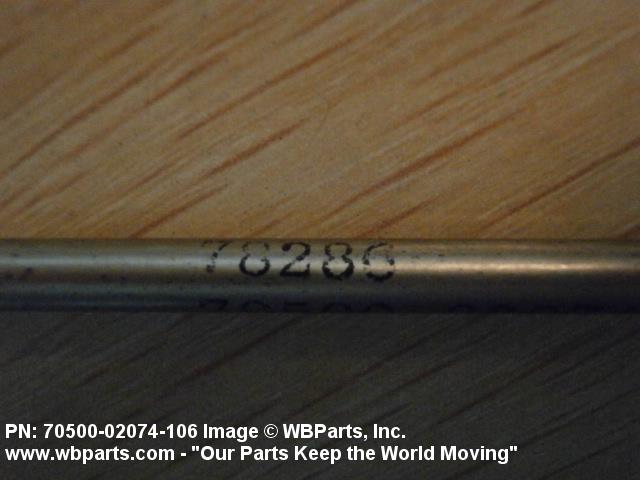

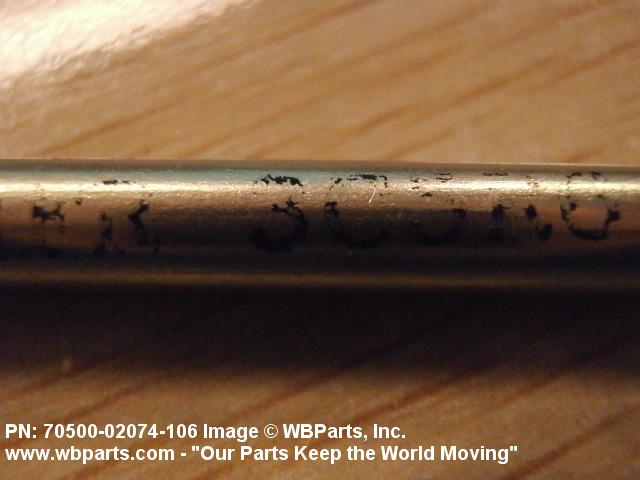

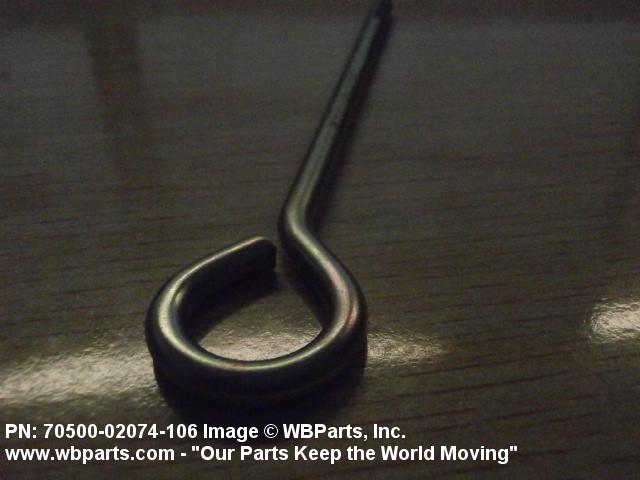

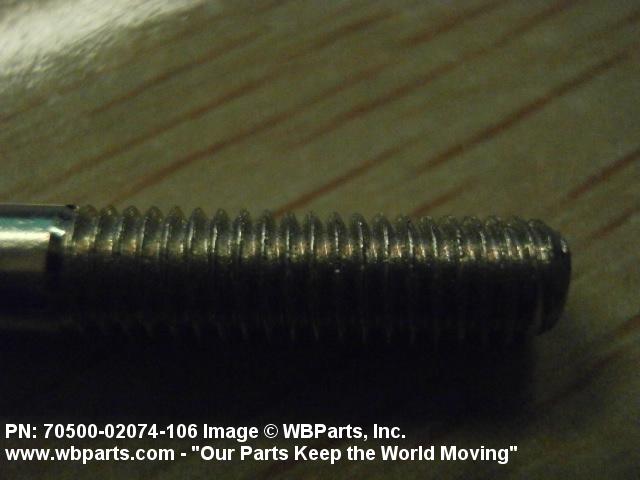

Drawings & Photos | NSN 5340-01-138-8853
Demand History | NSN 5340-01-138-8853
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-138-8853 | 2021-12-336 | 57 | DIBBS |
| 5340-01-138-8853 | 2021-06-160 | 55 | DIBBS |
| 5340-01-138-8853 | 2021-06-152 | 55 | DIBBS |
| 5340-01-138-8853 | 2020-04-97 | 1 | DIBBS-RFPs |
| 5340-01-138-8853 | 2017-05-139 | 6 | MANUAL |
| 70500-02074-106 | 2017-05-139 | 6 | Taiwan |
| 5340-01-138-8853 | 2016-08-222 | 90 | DIBBS |
| 5340-01-138-8853 | 2016-03-66 | 97 | DIBBS |
| 5340-01-138-8853 | 2015-10-298 | 97 | DIBBS |
| 5340-01-138-8853 | 2015-06-161 | 97 | DIBBS |
| 5340-01-138-8853 | 2015-03-68 | 97 | DIBBS |
| 5340-01-138-8853 | 2012-11-316 | 133 | DIBBS |
| 5340-01-138-8853 | 2012-08-216 | 75 | DIBBS |
Cross Reference | NSN 5340-01-138-8853
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70500-02074-106 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-138-8853
Related Products | NSN 5340-01-138-8853
Technical Data | NSN 5340-01-138-8853
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.190 INCHES ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.313 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 36 CLEVIS |
| SHANK LENGTH | 1.062 INCHES NOMINAL |
| SHANK DIAMETER | 0.281 INCHES NOMINAL |
| OVERALL WIDTH | 0.313 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.150 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.531 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.081 INCHES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 70500-02074-106 |
