NSN 5340-01-135-2609 NS202293070, NS202293-070, ST3M7547
Product Details | NUT AND BOLT RETAINER
5340-01-135-2609 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Part Alternates: NS202293070, NS202293-070, ST3M7547, ST3M754-7, F508187RT, F50818-7RT, 10112668 , 5340-01-135-2609, 01-135-2609, 5340011352609, 011352609
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 1982 | 01-135-2609 | 16010 ( RETAINER, NUT AND BOLT ) |

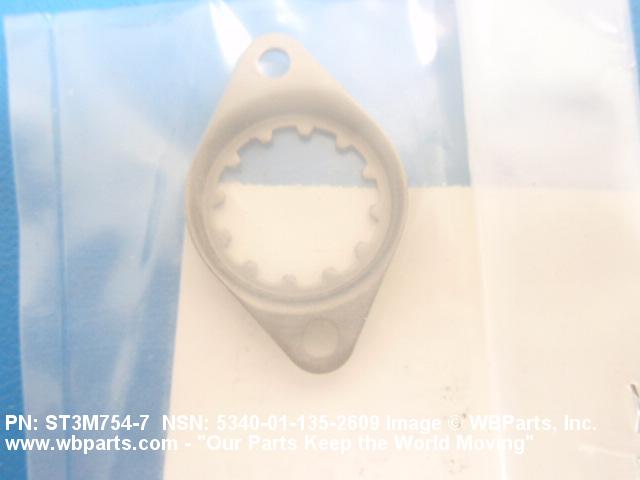

Drawings & Photos | NSN 5340-01-135-2609
Demand History | NSN 5340-01-135-2609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F50818-7RT | 2024-10-295 | 47 | DIBBS |
| NS202293-070 | 2024-10-295 | 47 | DIBBS |
| F50818-7RT | 2024-10-284 | 47 | DIBBS |
| NS202293-070 | 2024-10-284 | 47 | DIBBS |
| F50818-7RT | 2022-04-115 | 82 | DIBBS |
| NS202293-070 | 2022-04-115 | 82 | DIBBS |
| F50818-7RT | 2020-01-30 | 43 | DIBBS |
| NS202293-070 | 2020-01-30 | 43 | DIBBS |
| F50818-7RT | 2019-03-80 | 35 | DIBBS |
| NS202293-070 | 2019-03-80 | 35 | DIBBS |
| F50818-7RT | 2019-01-25 | 35 | DIBBS |
| NS202293-070 | 2019-01-25 | 35 | DIBBS |
| F50818-7RT | 2019-01-17 | 35 | DIBBS |
| NS202293-070 | 2019-01-17 | 35 | DIBBS |
| 5340-01-135-2609 | 2017-10-295 | 37 | DIBBS |
| 5340-01-135-2609 | 2015-10-286 | 31 | DIBBS |
| 5340-01-135-2609 | 2012-04-95 | 20 | DIBBS |
| ST3M7547 | 2010-03-89 | 45 | US |
| ST3M7547 | 2010-03-85 | 45 | United States |
| 5340-01-135-2609 | 2008-02-37 | 117 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-135-2609
Related Products | NSN 5340-01-135-2609
Technical Data | NSN 5340-01-135-2609
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5525 OR STEEL, AMS 5735 |

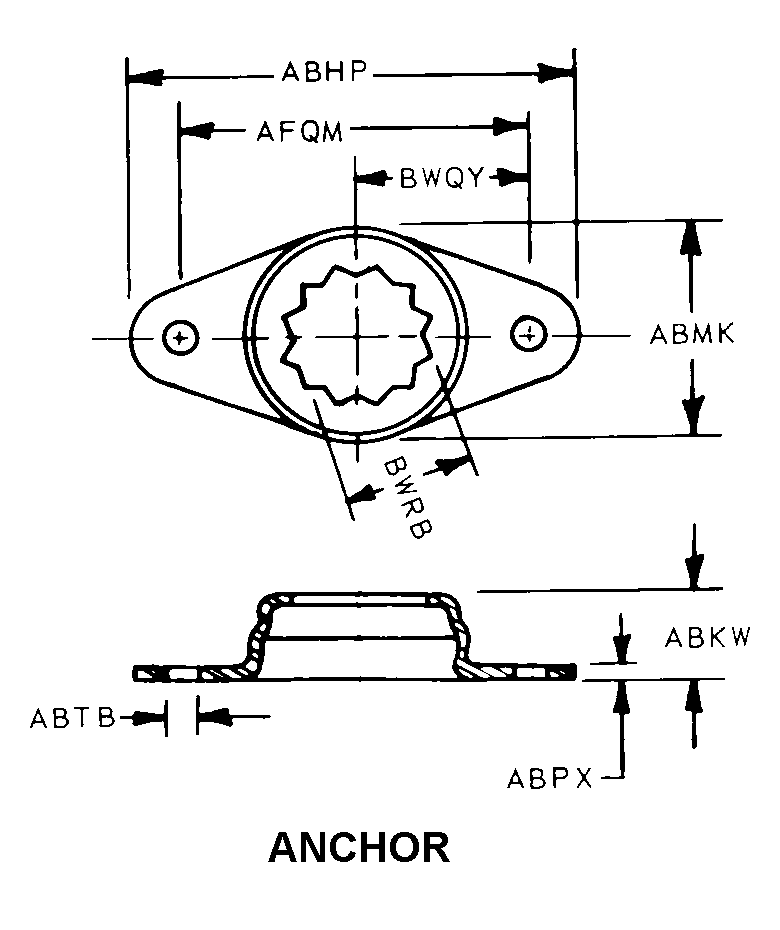

| STYLE DESIGNATOR | B4 ANCHOR |
| OVERALL LENGTH | 1.421 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.245 INCHES MAXIMUM |
| OVERALL WIDTH | 0.860 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.047 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.123 INCHES MINIMUM AND 1.127 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN CUP AND MOUNTING HOLE | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| WIDTH BETWEEN CUP FLATS | ANY ACCEPTABLE |
| III END ITEM IDENTIFICATION | W/S:AIRCRAFT, HORNET F/A-18; AIRCRAFT, HARRIER AV-8B; F/A-18E/F HORNET AIRCRAFT |
| MANUFACTURERS CODE | 76301 |
| MFR SOURCE CONTROLLING REFERENCE | ST3M754-7 |
Restrictions/Controls & Freight Information | NSN 5340-01-135-2609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-135-2609
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
