NSN 5340-00-632-0465 2752054, 2752-054, 2752054RET
Product Details | NUT AND BOLT RETAINER
5340-00-632-0465 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Part Alternates: 2752054, 2752-054, 2752054RET, 2752-054RET, 2852054RET, 2852-054RET, 3031M92P05, 5340-00-632-0465, 00-632-0465, 5340006320465, 006320465
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-632-0465 | 16010 ( RETAINER, NUT AND BOLT ) |

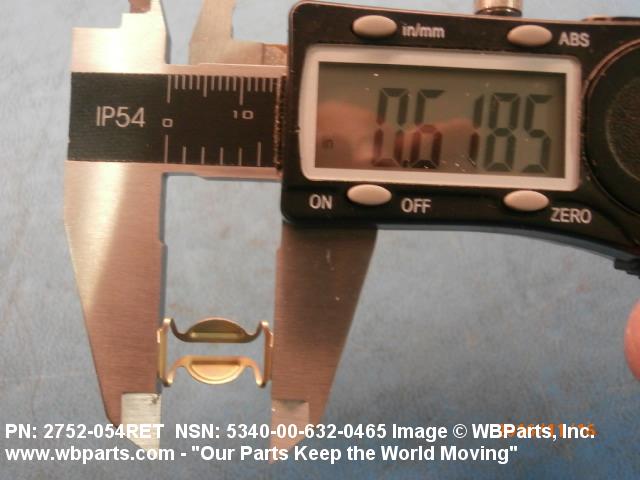

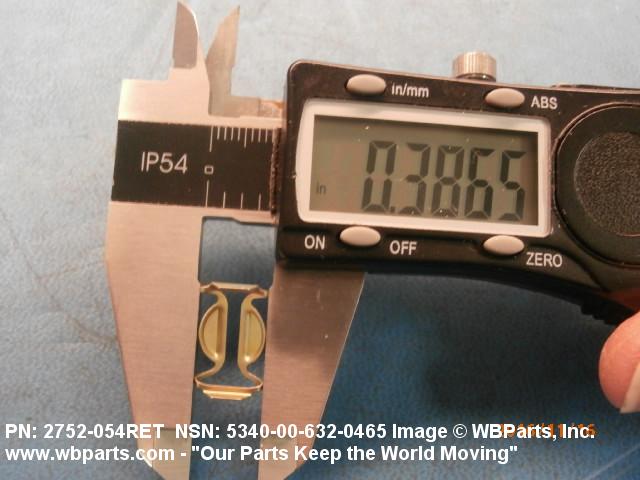

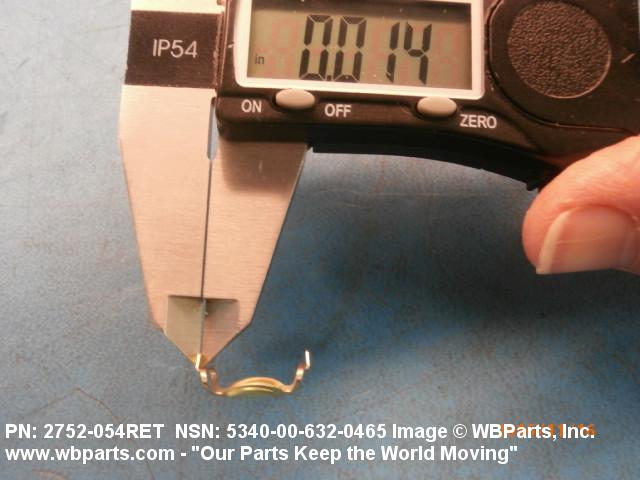

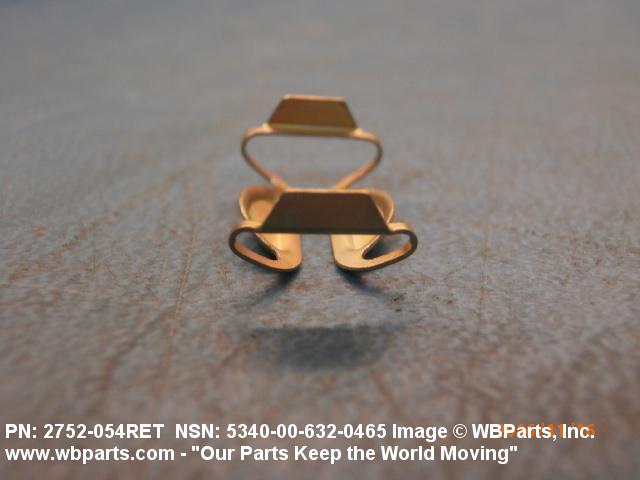

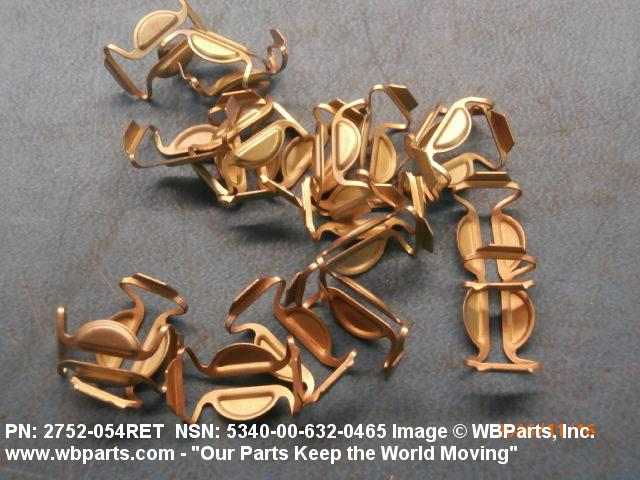

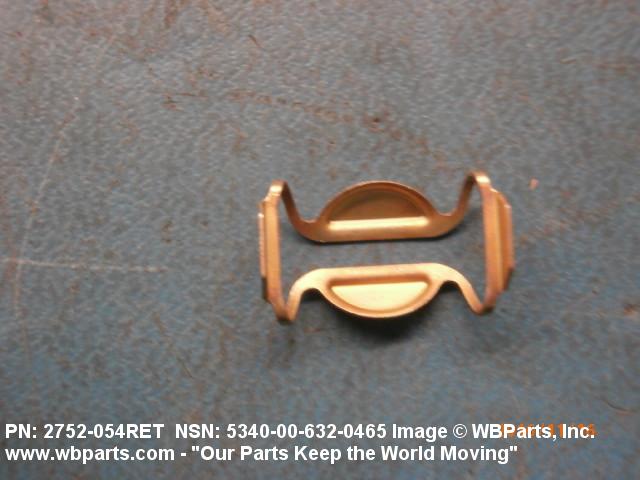

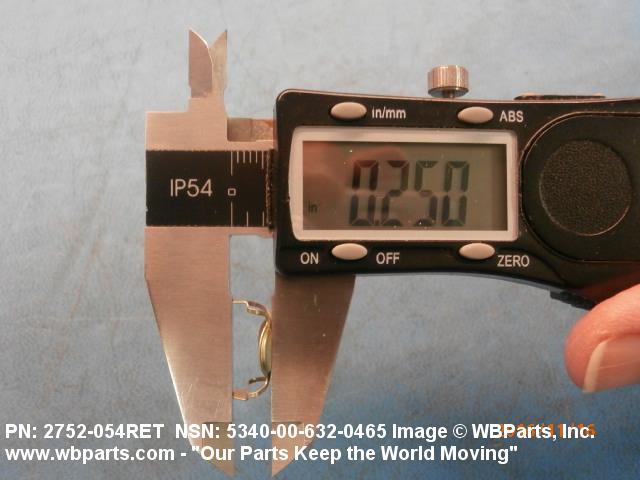

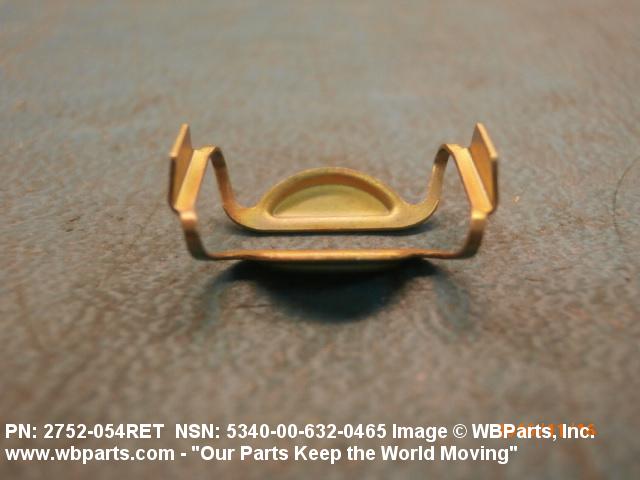

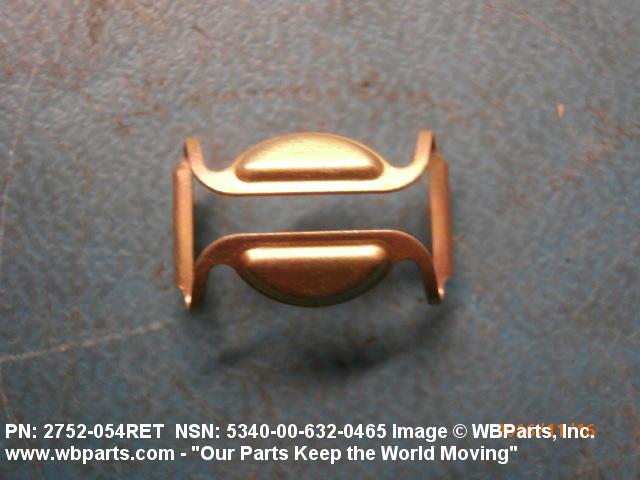

Drawings & Photos | NSN 5340-00-632-0465
Demand History | NSN 5340-00-632-0465
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-632-0465 | 2023-07-207 | 28 | United States |
| 5340-00-632-0465 | 2022-12-357 | 25 | United States |
| 2752-054 | 2022-10-300 | 428 | DIBBS |
| 2752-054RET | 2022-10-300 | 428 | DIBBS |
| 2852-054RET | 2022-10-300 | 428 | DIBBS |
| 2752-054 | 2022-04-108 | 425 | DIBBS |
| 2752-054RET | 2022-04-108 | 425 | DIBBS |
| 2852-054RET | 2022-04-108 | 425 | DIBBS |
| 2752054 | 2021-11-326 | 23 | PK |
| 2752054RET | 2021-11-326 | 30 | PK |
| 2752-054 | 2021-03-83 | 534 | DIBBS |
| 2752-054RET | 2021-03-83 | 534 | DIBBS |
| 2852-054RET | 2021-03-83 | 534 | DIBBS |
| 5340-00-632-0465 | 2021-02-37 | 100 | United States |
| 5340-00-632-0465 | 2020-06-182 | 65 | India |
| 5340-00-632-0465 | 2019-08-218 | 40 | Sweden |
| 5340-00-632-0465 | 2019-01-22 | 5 | Sweden |
| 2752-054 | 2019-01-13 | 629 | DIBBS |
| 2752-054RET | 2019-01-13 | 629 | DIBBS |
| 2852-054RET | 2019-01-13 | 629 | DIBBS |
| 5340-00-632-0465 | 2018-05-123 | 25 | PK |
| 5340-00-632-0465 | 2017-08-243 | 688 | DIBBS |
| 2752054 | 2017-02-40 | 35 | Sweden |
| 2752054RET | 2017-02-40 | 5 | Sweden |
| 5340-00-632-0465 | 2016-08-236 | 10 | Sweden |
| 5340-00-632-0465 | 2016-06-164 | 519 | DIBBS |
| 5340-00-632-0465 | 2016-01-15 | 10 | Sweden |
| 5340-00-632-0465 | 2016-01-14 | 20 | Sweden |
| 5340-00-632-0465 | 2015-08-239 | 40 | Sweden |
| 2752054 | 2013-03-85 | 10 | Sweden |
| 5340-00-632-0465 | 2012-01-23 | 544 | DIBBS |
| 5340-00-632-0465 | 2011-11-314 | 556 | DIBBS |
| 5340-00-632-0465 | 2011-06-178 | 1004 | DIBBS |
| 2752054 | 2008-10-290 | 100 | India |
Cross Reference | NSN 5340-00-632-0465
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2752-054 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 2752-054RET | 1V757 | WESCO AIRCRAFT HARDWARE CORP. |
| 2752-054RET | 72962 | HARVARD INDUSTRIES INC |
| 2752-054RET | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 2852-054RET | 06329 | ASC INTERNATIONAL, INC. DBA ASC INDUSTRIES |
| 3031M92P05 | 8K112 | FREUNDLICH SUPPLY COMPANY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-632-0465
Related Products | NSN 5340-00-632-0465
Technical Data | NSN 5340-00-632-0465
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AISI C1042 OR STEEL, AISI C1050 OR STEEL, AISI C1060 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 1, CLASS 2 OR CADMIUM, QQ-P-416, TYPE 2, CLASS 2 |

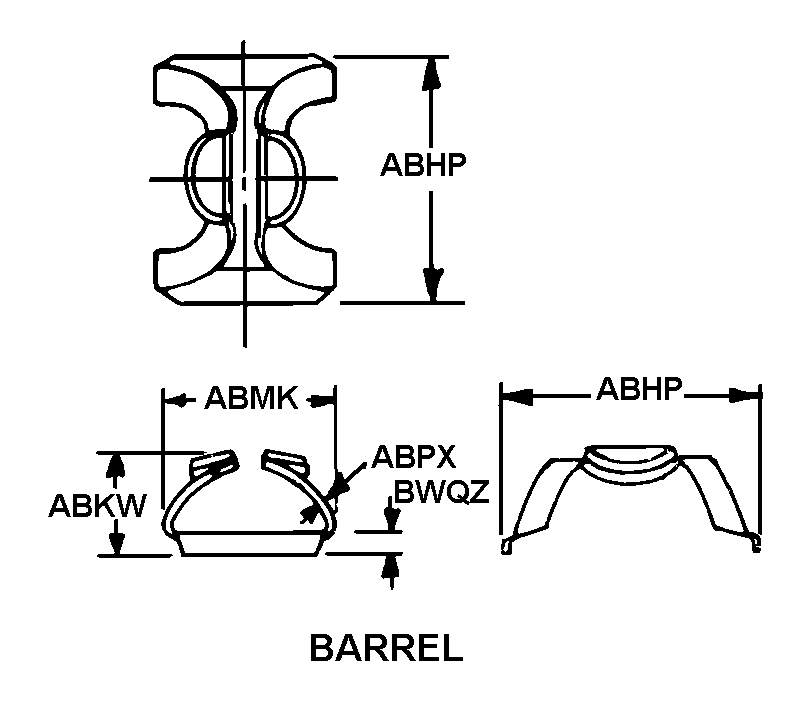

| STYLE DESIGNATOR | B7 BARREL |
| OVERALL LENGTH | 0.621 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.249 INCHES MINIMUM |
| OVERALL WIDTH | 0.404 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.009 INCHES MINIMUM AND 0.015 INCHES MAXIMUM |
| GRIP HEIGHT | 0.061 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |
| MANUFACTURERS CODE | 56878 |
| DESIGN CONTROL REFERENCE | 2752-054 |
Restrictions/Controls & Freight Information | NSN 5340-00-632-0465
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
