NSN 5340-01-134-5968 SMD414800, SM-D-414800, 01-134-5968
Product Details | BUTT HINGE
5340-01-134-5968 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: SMD414800, SM-D-414800, 5340-01-134-5968, 01-134-5968, 5340011345968, 011345968
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUL 1982 | 01-134-5968 | 22894 ( HINGE, BUTT ) |
Drawings & Photos | NSN 5340-01-134-5968
Cross Reference | NSN 5340-01-134-5968
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-D-414800 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-134-5968
Related Products | NSN 5340-01-134-5968
Technical Data | NSN 5340-01-134-5968
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-250/8, ALLOY 5052, H34 BODY CRES,ASTM A582,TYPE 303,PIN |
| SURFACE TREATMENT AND LOCATION | PASSIVATED,QQ-P-35,PIN |

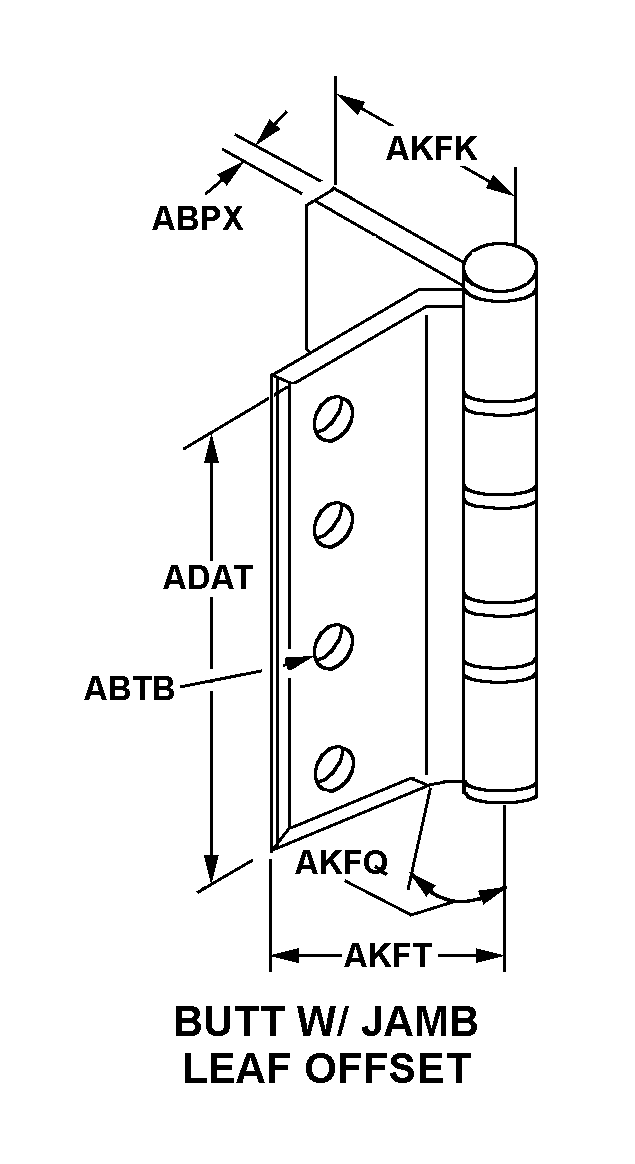

| STYLE DESIGNATOR | 27 BUTT W/JAMB LEAF OFFSET |
| MATERIAL THICKNESS | 0.051 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.138 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| BODY WIDTH | 6.218 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | ANY ACCEPTABLE |
| JAMB LEAF OFFSET DISTANCE | 0.187 INCHES NOMINAL |
| DEVELOPED DISTANCE FROM PIN CENTER TO OFFSET JAMB LEAF EDGE | 0.396 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 9 |
| MOUNTING HOLE QUANTITY | 5 |
| PERFORMANCE TYPE | NOT RATED |
| SPECIAL FEATURES | HING MUST FOLD BACK ON SELF; TWO HOLES 0.275 IN. MIN |
