Product Details | ROD END CLEVIS
5340-01-133-8830 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 129606, 5340-01-133-8830, 01-133-8830, 5340011338830, 011338830
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1982 | 01-133-8830 | 03796 ( CLEVIS, ROD END ) |

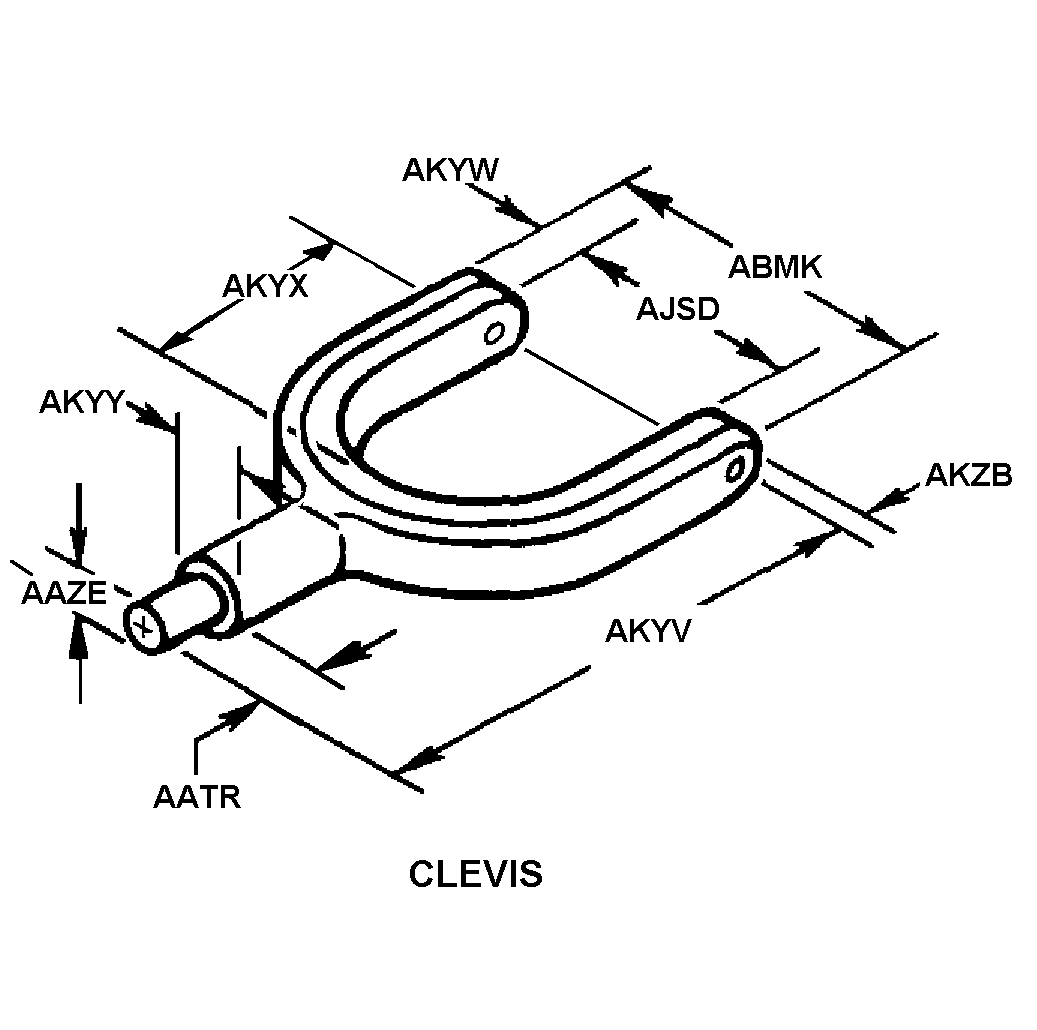

Drawings & Photos | NSN 5340-01-133-8830
Cross Reference | NSN 5340-01-133-8830
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 129606 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-133-8830
Technical Data | NSN 5340-01-133-8830
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.625 INCHES ROD CONNECTION |
| THREAD CLASS | 2A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 2.620 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 5 CLEVIS |
| SHANK LENGTH | 0.200 INCHES NOMINAL |
| SHANK DIAMETER | 0.424 INCHES NOMINAL |
| FORK SPAN WIDTH | 2.426 INCHES MINIMUM AND 2.434 INCHES MAXIMUM |
| SHANK SHOULDER DIAMETER | 0.625 INCHES NOMINAL |
| ROD CONNECTION BORE DIAMETER | 0.370 INCHES NOMINAL |
| ROD CONNECTION BORE DEPTH | 2.480 INCHES NOMINAL |
| SPECIAL FEATURES | ONE FORK ARM HAS ONE PINHOLE CENTERED AND THE OTHER ARM HAS TWO PINHOLES OFF-CENTERED WITH A COUNTERBORE DIA. OF 0.280 IN. AND 0.128 IN. DIA. |
| MANUFACTURERS CODE | 10138 |
| DESIGN CONTROL REFERENCE | 129606 |
Restrictions/Controls & Freight Information | NSN 5340-01-133-8830
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
