Product Details | ROD END CLEVIS
5340-01-133-7471 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 10112649 , 3929AS8312, 3929AS831-2 , 74A7330662003, 74A733066-2003, 5340-01-133-7471, 01-133-7471, 5340011337471, 011337471
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUN 1982 | 01-133-7471 | 03796 ( CLEVIS, ROD END ) |
Drawings & Photos | NSN 5340-01-133-7471
Demand History | NSN 5340-01-133-7471
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-133-7471 | 2020-04-93 | 643 | DIBBS |
| 5340-01-133-7471 | 2020-03-75 | 643 | DIBBS |
| 5340-01-133-7471 | 2018-11-322 | 8 | DIBBS |
| 5340-01-133-7471 | 2015-03-81 | 8 | DIBBS |
| 5340-01-133-7471 | 2014-10-293 | 11 | DIBBS |
| 5340-01-133-7471 | 2014-10-282 | 11 | DIBBS |
| 5340-01-133-7471 | 2008-11-319 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-133-7471
Technical Data | NSN 5340-01-133-7471
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643,17-4PH ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNJF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES ROD CONNECTION |
| THREAD CLASS | 3B ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.265 INCHES MINIMUM AND 0.295 INCHES MAXIMUM ROD CONNECTION |

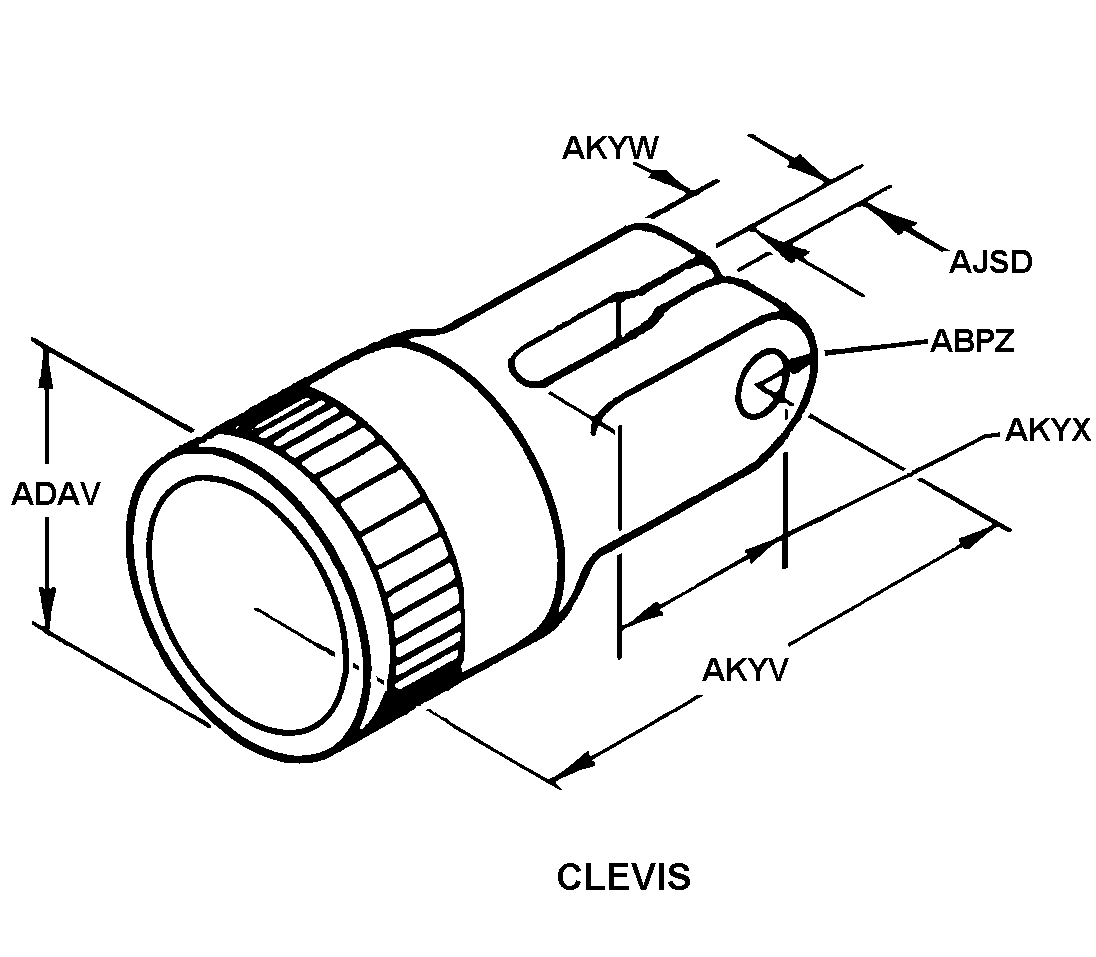

| STYLE DESIGNATOR | 31 CLEVIS |
| END RADIUS | 0.220 INCHES NOMINAL |
| OVERALL DIAMETER | 0.625 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.140 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 0.835 INCHES MINIMUM AND 0.865 INCHES MAXIMUM |
| FORK ARM THICKNESS | 0.060 INCHES NOMINAL |
| FORK DEPTH | 0.631 INCHES NOMINAL |
| HOLE DIAMETER | 0.191 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
