NSN 5340-01-120-5228 111-4643291 ITEM 017, 111-4643291 ITEM 17, 1114643291ITEM017
Product Details | ROD END CLEVIS
5340-01-120-5228 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 111-4643291 ITEM 017, 111-4643291 ITEM 17, 1114643291ITEM017, 1114643291ITEM17, 87462-0403 ITEM 17, 874620403ITEM17, 5340-01-120-5228, 01-120-5228, 5340011205228, 011205228
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1981 | 01-120-5228 | 03796 ( CLEVIS, ROD END ) |

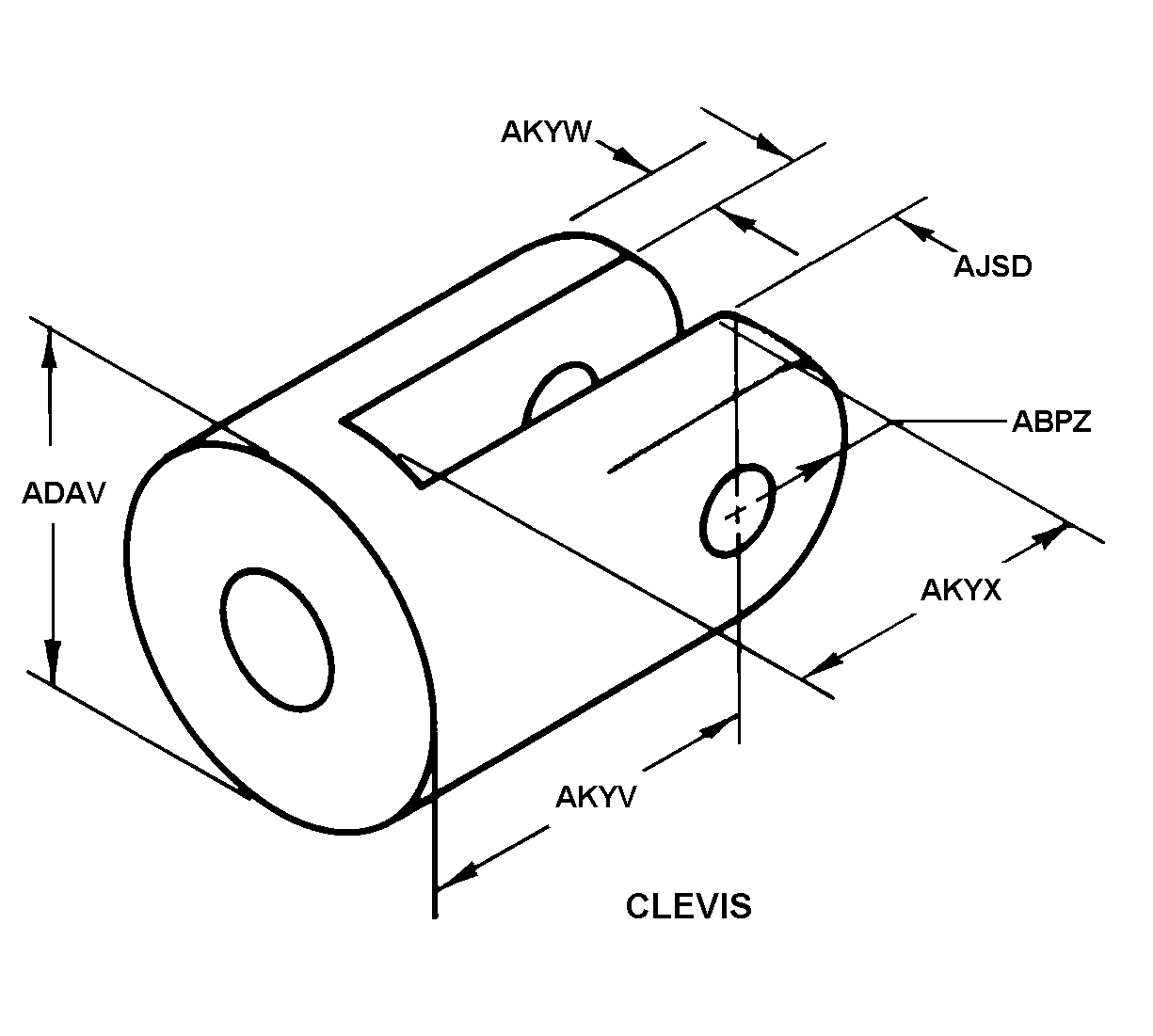

Drawings & Photos | NSN 5340-01-120-5228
Demand History | NSN 5340-01-120-5228
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-120-5228 | 2012-02-35 | 2 | DIBBS |
| 5340-01-120-5228 | 2011-01-08 | 1 | DIBBS |
| 5340-01-120-5228 | 2009-06-158 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-120-5228
Technical Data | NSN 5340-01-120-5228
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNC ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.500 INCHES ROD CONNECTION |
| THREAD CLASS | 2B ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 1.620 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 15 CLEVIS |
| END RADIUS | 0.500 INCHES NOMINAL |
| OVERALL DIAMETER | 0.875 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.250 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 2.500 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.245 INCHES NOMINAL |
| FORK DEPTH | 1.000 INCHES NOMINAL |
| HOLE DIAMETER | 0.375 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-01-120-5228
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
