Product Details | HELICAL COMPRESSION SPRING SEAT
5340-01-119-0820 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 10112380 , 2774018101, 2774018-101, 5340-01-119-0820, 01-119-0820, 5340011190820, 011190820
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1981 | 01-119-0820 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

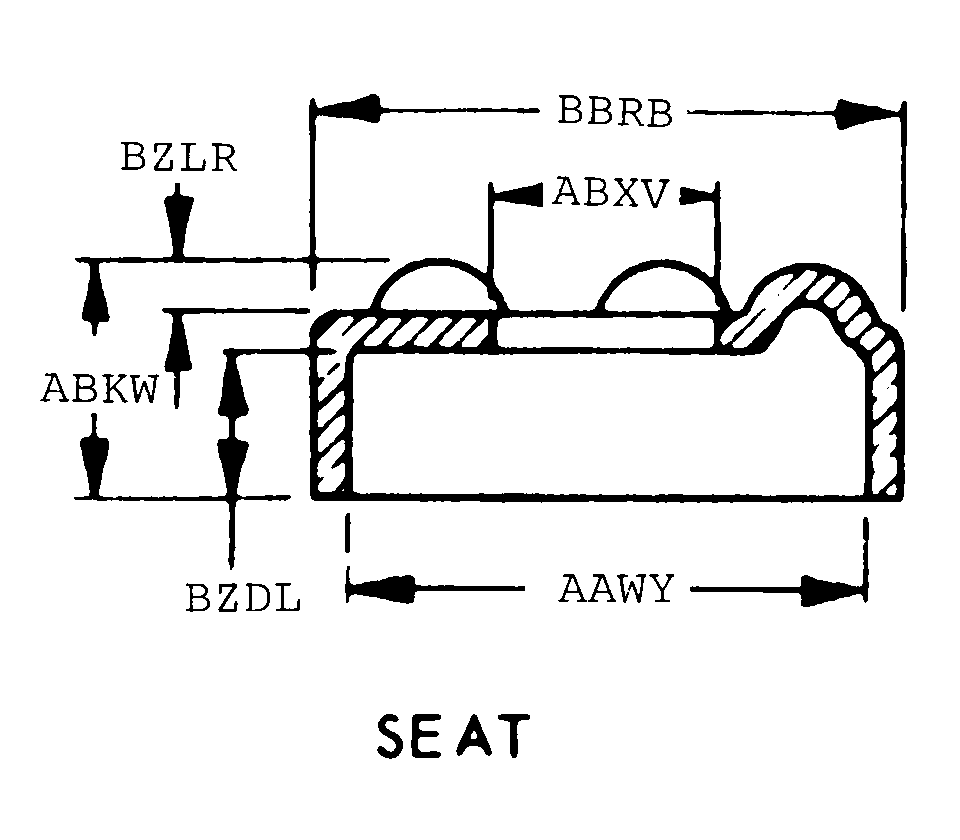

Drawings & Photos | NSN 5340-01-119-0820
Demand History | NSN 5340-01-119-0820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2774018-101 | 2020-10-281 | 13 | DIBBS |
| 2774018-101 | 2020-07-203 | 3 | DIBBS |
| 2774018-101 | 2020-03-77 | 8 | DIBBS |
| 2774018-101 | 2019-02-36 | 10 | DIBBS |
| 5340-01-119-0820 | 2018-09-253 | 3 | DIBBS |
| 5340-01-119-0820 | 2016-02-32 | 6 | DIBBS |
| 5340-01-119-0820 | 2016-01-10 | 2 | DIBBS |
Cross Reference | NSN 5340-01-119-0820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2774018-101 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
